Product Description

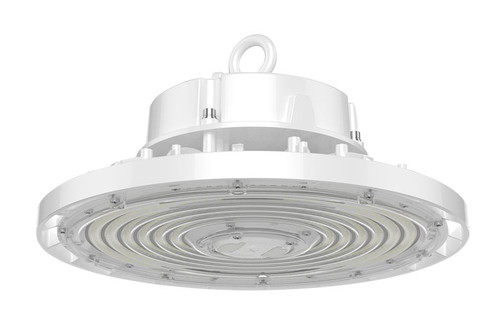

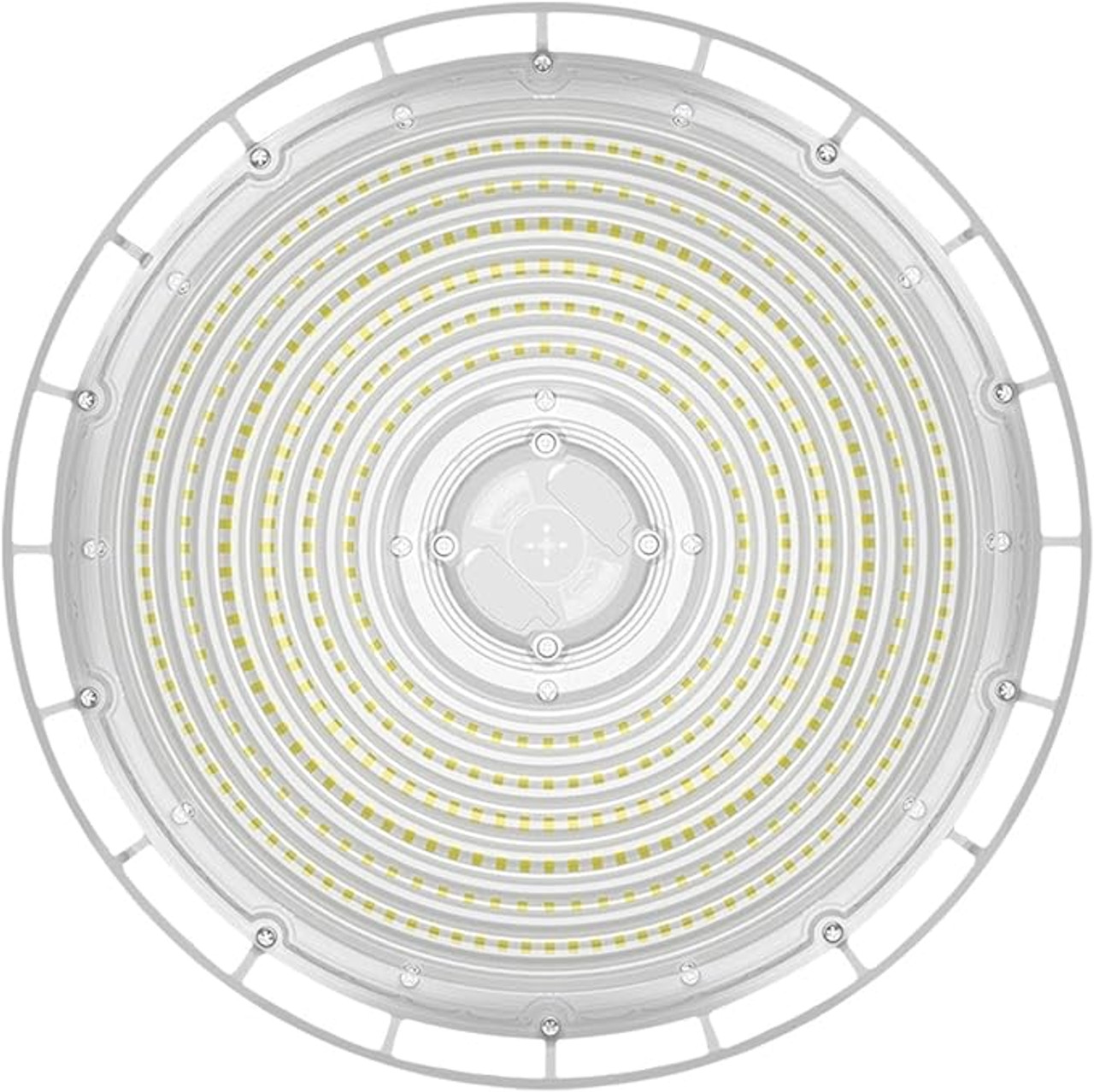

H17XL Round Highbay 240W/200W/150W 3000K/4000K/5000K CCT And Power from RAB Lighting is a powerful, energy-efficient LED high bay fixture with field-adjustable wattage and color temperature settings. Designed for commercial and industrial environments, it delivers high lumen output and versatility in application, backed by an IP65 rating and DLC Premium certification for rebate eligibility.
Wattage: 240W / 200W / 150W (adjustable)
Color Temperature: 3000K / 4000K / 5000K (adjustable)
Lumens: 22,696 – 37,253 lm
Voltage: 120-277V
Mounting: Hook mount and pendant capable
Certifications: DLC Premium, UL Listed, IP65 Rated
Warranty: 5-Year Limited Warranty
Free shipping on orders over $250
Product Benefits
- Field-adjustable wattage and CCT allow easy customization for different lighting environments
- High output up to 37,253 lumens ideal for large commercial, retail, and warehouse spaces
- IP65 wet-location rated design ensures durability in harsh environments
- DLC Premium qualification enables energy rebates for cost savings
Key Features
- Field Adjustable: 240W/200W/150W and 3000K/4000K/5000K
- High Efficiency: Up to 168.4 lm/W
- Long Life: 100,000-hour L70 lifespan
- Durable Housing: Precision die-cast aluminum with polycarbonate lens
- 0-10V Dimming: Down to 10%
- Wide Beam: 90° beam angle
- Cold Weather Operation: Starts at -40°C (-40°F)
Specifications
Technical Specs
| Power Range | 240W / 200W / 150W |
| Voltage | 120-277V, 50/60Hz |
| Dimming | 0-10V, down to 10% |
| Surge Protection | 4kV L-N, 6kV L/N-PE |
Performance Specs
| Lumen Output | 22,696 – 37,253 lm |
| Efficacy | 135.6 – 168.4 lm/W |
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | 82 – 86 |
Physical Specs

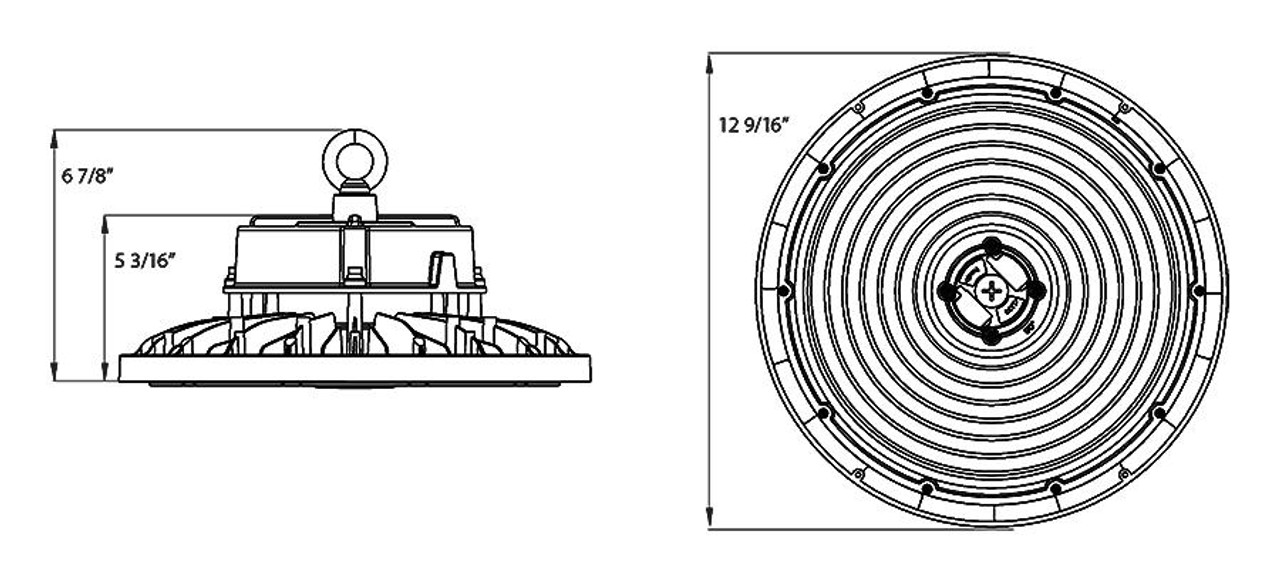

| Dimensions | 12 9/16" Diameter x 6 7/8" Height |
| Weight | 12.8 lbs |
| Material | Die-cast aluminum housing with polycarbonate lens |
Compliance & Safety
| UL Listing | Wet Location |
| IP Rating | IP65 |
| DLC Listing | Premium Qualified (DLC 5.1) |
Applications
- Warehouses and distribution centers
- Commercial big-box retail
- Gymnasiums and sports arenas
- Industrial manufacturing facilities
Installation Tips
- Ensure power is off before installation
- Use hook mount or optional pendant mounting accessories
- Adjust wattage and CCT via internal dip switches before sealing fixture
- Follow local electrical codes and use UL-approved wire connectors
Frequently Asked Questions
Can I adjust both wattage and color temperature in the field?
Yes, the H17XL allows field adjustment of both power levels (150W/200W/240W) and CCT (3000K/4000K/5000K).
What type of dimming is supported?
The fixture supports 0-10V dimming down to 10%.
Is the H17XL rated for wet locations?
Yes, it is UL Listed for wet locations and rated IP65 for dust and water ingress protection.
Can this fixture replace a 750W metal halide?
Absolutely. It is designed to be a high-efficiency equivalent to 750W MH fixtures.
What is the minimum starting temperature?
The fixture can operate in environments as cold as -40°F (-40°C).
Are mounting accessories included?
It comes with a hanging hook and cord. Pendant and surface mounting accessories are sold separately.
Is there a warranty?
Yes, it comes with a 5-year limited warranty covering light output, driver performance, and finish.
Is the fixture BAA compliant?
It may be manufactured to meet Buy American Act standards upon request.
Does it support motion sensors?
Yes, compatible motion sensors are available separately and install via a 1/2" knockout.
