Product Description

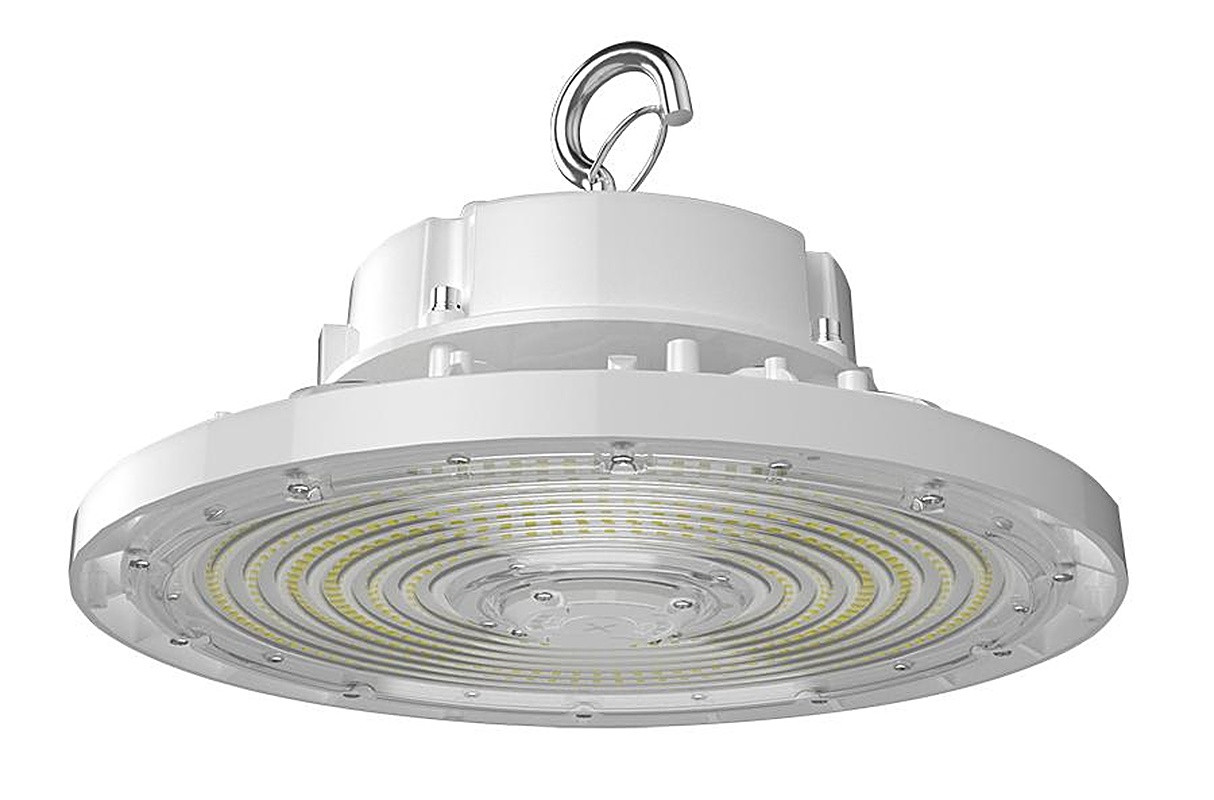

H17XL/6CP Highbay Light is a powerful and energy-efficient LED high bay fixture designed for large commercial and industrial spaces. Featuring field-adjustable wattage (240W, 200W, 150W) and selectable color temperatures (3000K, 4000K, 5000K), this fixture provides versatility for various lighting applications.
Key Features
Field-Adjustable Wattage: Selectable output at 240W, 200W, or 150W (factory default: 240W).
High Lumen Output: Produces between 22,696 - 37,253 lumens with efficacy up to 168.4 lm/W.
Color Temperature Selectable: Choose between 3000K, 4000K, and 5000K (factory default: 4000K).
Universal Voltage: Operates on 120-277V for broad installation compatibility.
0-10V Dimming: Integrated dimming down to 10% for energy savings and control.
IP65 Rated: Provides protection against dust and water, making it suitable for tough environments.
Long Lifespan: Rated for 100,000 hours (L70), minimizing maintenance costs.
Durable Construction: Die-cast aluminum housing with a polycarbonate lens for added durability.
DLC 5.1 Premium Listed: Qualifies for energy rebates from participating utilities.
Installation Options: Comes with a 6 ft. cord and NEMA 5-15P plug for hook or pendant mounting.
Specifications
| Attribute | Details |
|---|---|
| Model | H17XL/6CP |
| Fixture Type | LED High Bay |
| Wattage | 240W / 200W / 150W (Selectable) |
| Lumen Output | 22,696 - 37,253 lumens |
| Color Temperature | 3000K / 4000K / 5000K (Selectable) |
| CRI (Color Rendering Index) | 82-86 |
| Voltage | 120-277V |
| Power Factor | 99.78% at 120V, 93.12% at 277V |
| Dimming | 0-10V, dims down to 10% |
| IP Rating | IP65 (Weatherproof) |
| Mounting Options | Hook Mount, Pendant Mount |
| Cord & Plug | 6 ft. cord with NEMA 5-15P plug (120V only) |
| Housing Material | Die-Cast Aluminum |
| Lens Type | Polycarbonate |
| DLC Certification | DLC 5.1 Premium Listed |
| Lifespan | 100,000 Hours (L70) |
| Warranty | 5-Year Limited Warranty |
Installation Tips
Select Wattage and CCT Before Installation: Use the field-adjustable switch to set the desired power level and color temperature.
Choose the Correct Mounting Method: The fixture can be hook-mounted or pendant-mounted for different installation needs.
Connect to a 0-10V Dimming System: Ensure proper wiring for smooth dimming control.
Use the Pre-Wired Cord: Includes a 6 ft. cord with a NEMA 5-15P plug (for 120V installations only).
Frequently Asked Questions
Q: What applications is this high bay fixture ideal for?
A: The H17XL is perfect for warehouses, manufacturing facilities, gymnasiums, and commercial spaces.
Q: Is this fixture dimmable?
A: Yes, it features 0-10V dimming down to 10%.
Q: How do I change the wattage and color temperature?
A: The fixture has a field-adjustable switch that allows you to choose between 240W, 200W, or 150W and 3000K, 4000K, or 5000K.
Q: What is the expected lifespan of this fixture?
A: The fixture is rated for 100,000 hours (L70) to ensure long-lasting performance.
Q: Does this fixture include a cord and plug?
A: Yes, it comes with a 6 ft. cord and NEMA 5-15P plug for 120V installations only.
Q: What mounting options are available?
A: The fixture can be installed using hook mounting or pendant mounting.
