Product Description

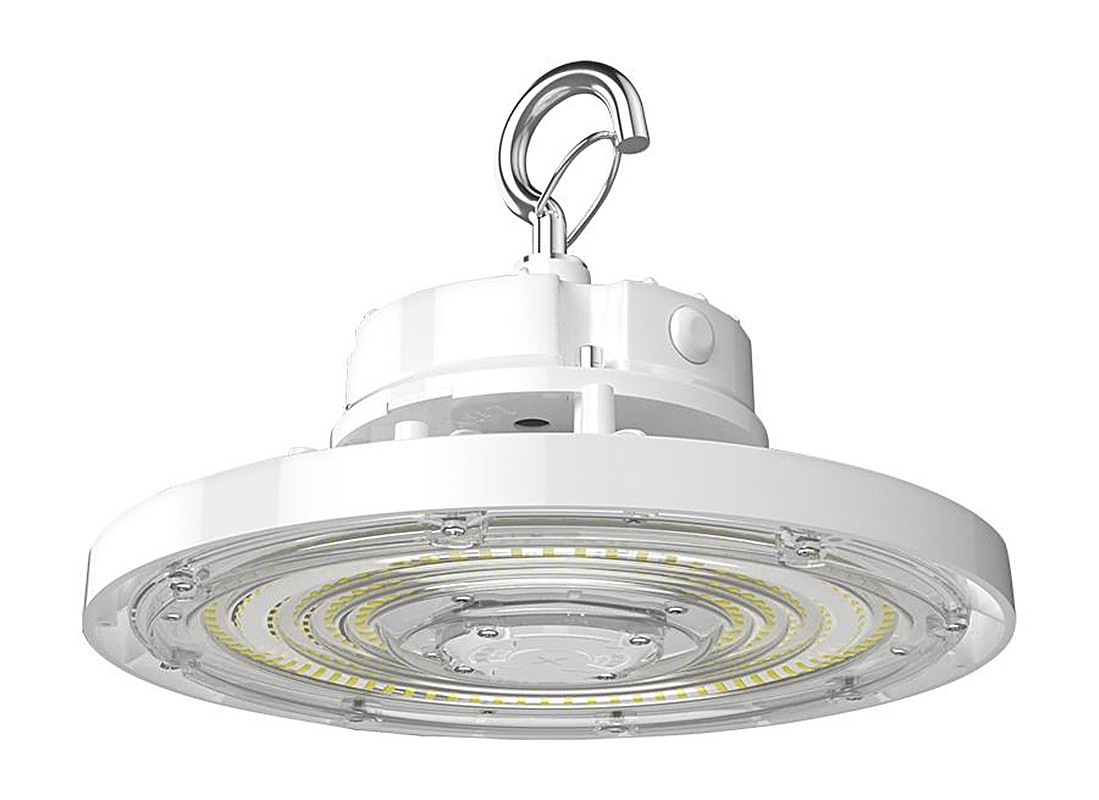

RAB H17S Highbay is a field-selectable round high bay delivering 9,205–14,959 lumens with 100W/80W/60W output options and 3000K/4000K/5000K CCT, operating on 120–277V. The compact white fixture includes a hook and 6' cord for quick installs, features 0–10V dimming, and achieves DLC Premium efficacy for energy-efficient warehouses, gyms, retail, and light industrial spaces.
- Lumen Output: 9,205–14,959 lm
- Field-Adjustable Power: 100W / 80W / 60W (default 100W)
- CCT: 3000K / 4000K / 5000K (default 4000K)
- Efficacy: up to 169.9 lm/W
- Voltage: 120–277V, 0–10V dimming to 10%
- IP Rating: IP65, wet location
- Listings: DLC Premium, UL Listed
- Finish: White
- Free shipping on orders over $250
Product Benefits
- Reduce energy costs with DLC Premium efficacy and selectable wattage.
- Adapt on site with 3 CCT options for visual comfort and task needs.
- Fast installs using the included hook & 6' cord; pendant/surface kits available.
- Durable IP65 construction withstands dusty or damp environments.
Key Features
- 0–10V Dimming: down to 10% for control and savings
- Cold Start: reliable to -40°F (-40°C)
- Surge Protection: 4kV (L-N) / 6kV (L/N-PE)
- L70 Life: 100,000 hours
- Mounting: hook standard; optional pendant & surface kits
- Warranty: 5-Year Limited
Enhanced Specifications
Technical Specs
| Input Voltage | 120–277V, 50/60Hz |
| Input Power (field-set) | 100W / 80W / 60W |
| Driver | Constant Current, Class 1; 0–10V dimming to 10% |
| Power Factor | Up to 99.7% (120V) |
| THD | Driver performance per DLC 5.1 |
| Surge | 4kV (L-N), 6kV (L/N-PE) |
Performance Specs
| Lumen Range | 9,205–14,959 lm |
| Efficacy | 143.1–169.9 lm/W |
| CCT Options | 3000K / 4000K / 5000K |
| CRI | 81–83 |
| Lifespan | 100,000 hours (L70) |
Physical Specs
| Housing | Precision die-cast aluminum |
| Lens | Polycarbonate |
| Finish | White, durable coating |

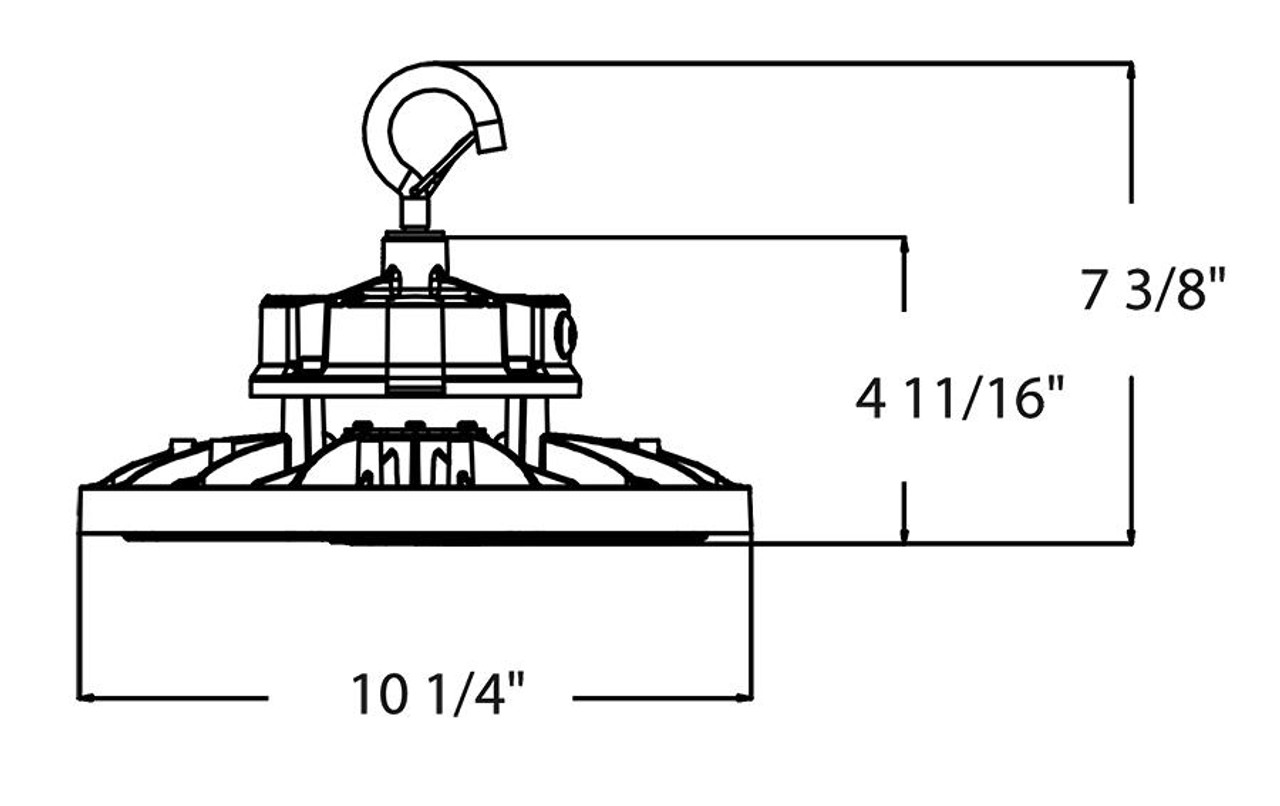

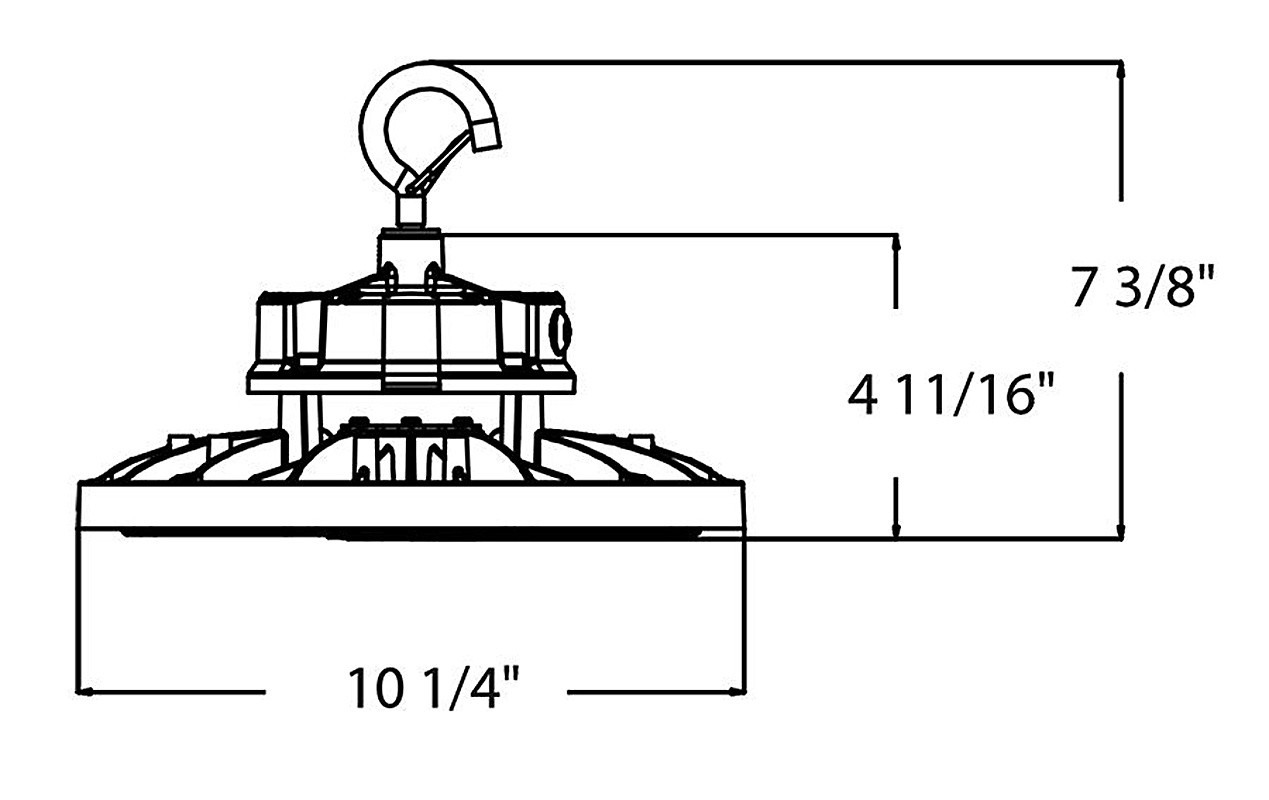

| Dimensions | Ø 10-1/4" × 4-11/16" body; ~7-3/8" overall height (w/ hook) |
| Weight | 4.7 lbs |
Environmental & Safety
| IP Rating | IP65 (dust & water ingress protection) |
| Ambient Rating | Up to 50°C (122°F) at max power |
| Cold Weather Start | -40°C (-40°F) |
| Listings | UL Listed, DLC Premium |
| RoHS | Mercury & UV free |
Application Examples
- Warehouses, fulfillment centers, and distribution aisles
- Gymnasiums and recreational facilities
- Retail back-of-house and big-box sales floors
- Light manufacturing and assembly areas
Installation Tips
- Hook mount is standard; pendant and surface-mount kits are available.
- Set wattage & CCT using the onboard switches before energizing.
- Wire for 0–10V dimming when controls are used; cap dim leads if not used.
- Observe the 50°C max ambient rating at full power for longevity.
- Optional motion sensors (MVS50 / PIR40) and EM battery kits are supported.
SEO-Optimized FAQ
Q: What wattages can I select on the H17S?
A: You can set 100W, 80W, or 60W at the fixture.
Q: Can I change the color temperature?
A: Yes—select 3000K, 4000K, or 5000K at install.
Q: Is the H17S DLC listed?
A: Yes, it’s DLC Premium listed for top-tier utility rebates.
Q: Does it dim?
A: It supports 0–10V dimming down to 10%.
Q: What’s included for mounting?
A: A hanging hook and 6' cord are included; pendant and surface kits are optional.
Q: Is it suitable for damp or dusty areas?
A: Yes, it is IP65 rated and UL Listed for wet locations.
Q: What is the operating temperature range?
A: Starts at -40°F and is rated for up to 122°F at max power.
Q: Are motion sensors or emergency battery packs available?
A: Yes—compatible sensor and EM battery accessories are available.
