Product Description
H17 Round Highbay 150W/120W/100W 3000K/4000K/5000K CCT And Power by RAB Lighting is a highly adaptable LED solution for industrial and commercial ceiling applications. With selectable wattage and CCT, this IP65-rated high bay fixture delivers up to 22,224 lumens and operates on universal 120–277V input. Designed for long-lasting performance and maximum versatility, it's DLC Premium listed and suitable for wet locations.

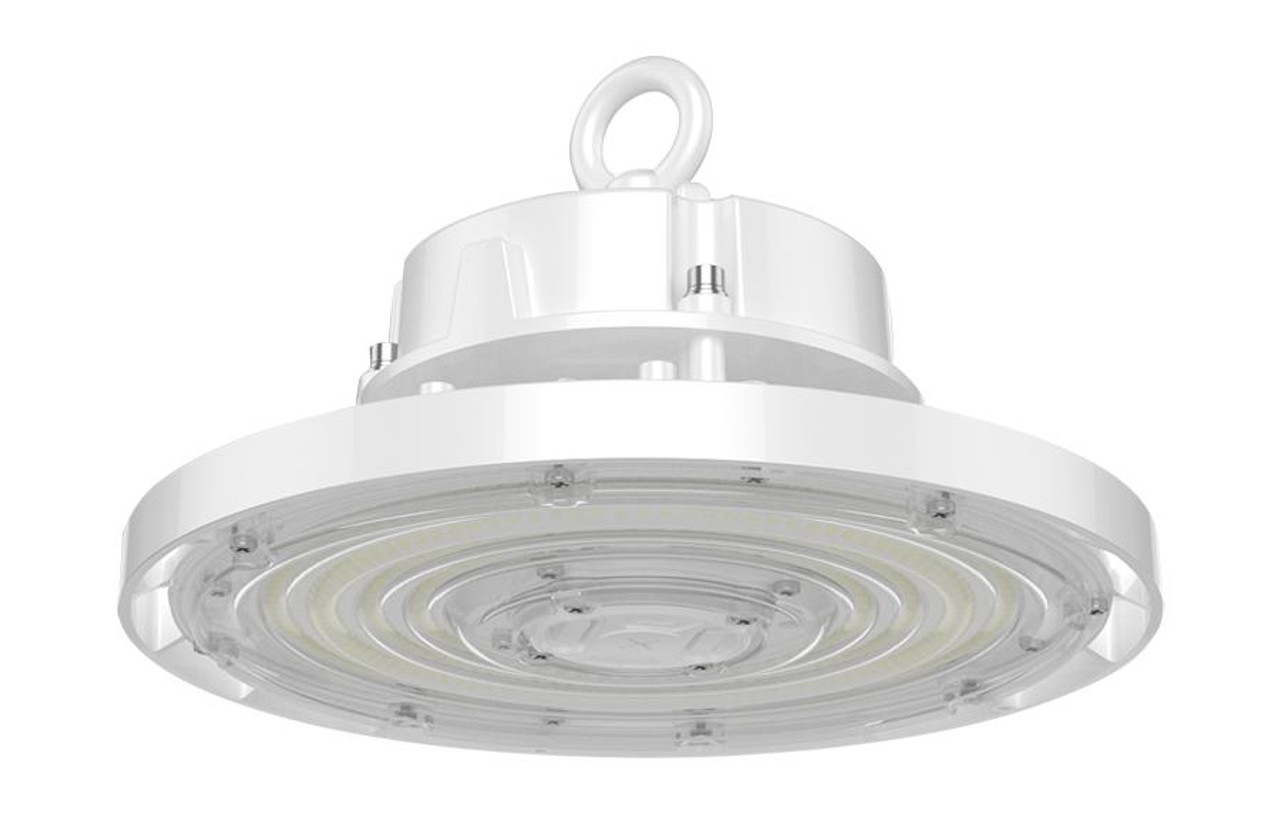

H17 Field-Adjustable Round LED High Bay
Wattage: 150W / 120W / 100W
Color Temperature: 3000K / 4000K / 5000K Selectable
Lumens: 15,317–22,224 lm
CRI: 83–86
Voltage: 120–277V
Dimming: 0–10V
IP Rating: IP65
Mounting: Hook and Pendant Capable
Finish: White
Free shipping on orders over $250
Product Benefits
- Field-adjustable power and CCT to fit varied lighting needs in one SKU
- Delivers up to 22,224 lumens for high-output performance
- DLC Premium qualified for rebate eligibility and energy savings
- IP65-rated and UL Listed for demanding indoor and damp environments
Key Features
- Adjustable Wattage: 100W, 120W, or 150W (Factory default: 150W)
- Selectable CCT: 3000K / 4000K / 5000K (Factory default: 4000K)
- Lumen Output: 15,317–22,224 lm
- Efficacy: Up to 168.8 lm/W
- Beam Angle: 90°
- Driver: 0–10V dimming down to 10%
- Certifications: UL Listed, DLC 5.1 Premium, RoHS compliant
- Warranty: 5-Year Limited Warranty
Specifications
| Technical Specs | |
|---|---|
| Input Voltage | 120–277V, 50/60 Hz |
| Power Factor | 99.71% at 120V, 93.05% at 277V |
| THD | 3.25% at 120V, 5.6% at 277V |
| Surge Protection | 4kV (L-N), 6kV (L/N-PE) |
| Physical Specs | |
|---|---|
| Finish | White powdercoat |
| Housing | Die-cast aluminum |
| Lens | Polycarbonate |
| Mounting | ¾" NPT hook and pendant capable (hook included) |
| Weight | 7.3 lbs |
| Performance Specs | |
|---|---|
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | 83–86 |
| Lumen Output | 15,317–22,224 lm |
| Lifespan | 100,000 hours (L70) |
Application Examples
- Warehouses and logistics centers
- Big box retail and gymnasiums
- Manufacturing and food-processing facilities
- Showrooms and large commercial interiors
Installation Tips
- Default mounting is via heavy-duty hook (included); pendant kit available separately
- Select desired wattage and color temperature before energizing fixture
- Use 0–10V dimming wiring when pairing with compatible controls
- Wet location installation requires proper sealing at conduit entry
- Supports motion sensor and surface mount accessories (sold separately)
Frequently Asked Questions
What wattages can the H17 be set to?
This fixture can be field-set to 150W, 120W, or 100W using the internal power selector switch.
What color temperature options are available?
The fixture includes a switch for 3000K, 4000K, or 5000K selectable color temperature.
How bright is the H17?
It outputs between 15,317 and 22,224 lumens depending on selected wattage.
Is this fixture dimmable?
Yes, it supports 0–10V dimming down to 10% light output.
Is it rated for wet locations?
Yes, it is UL Listed for wet locations and has an IP65 rating.
How is the H17 mounted?
It comes standard with a ¾" NPT hook and can be pendant-mounted with an optional kit.
Is this DLC listed?
Yes, it meets DLC 5.1 Premium standards and is eligible for utility rebates.
What is the beam spread?
The H17 provides a wide 90° beam angle for general area lighting.
Does the fixture support motion sensors?
Yes, a sensor knockout is provided; motion sensor kits are sold separately.
What is the warranty period?
RAB provides a 5-year limited warranty covering performance and finish.
