Product Description

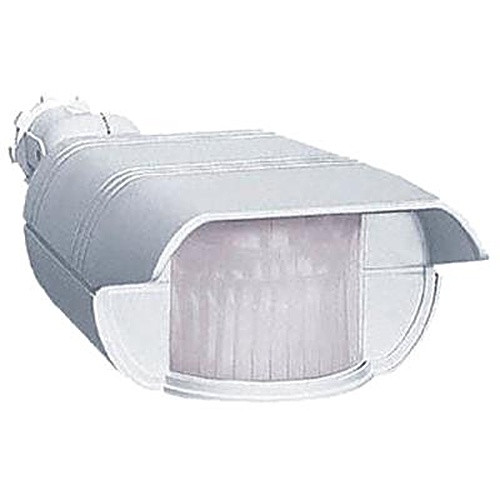

GT500W Outdoor Motion Sensors Gotcha 110 Sensor 500W 120V-277V White from RAB Lighting is a compact, versatile motion sensor with advanced detection logic, surge protection, and dual-voltage capability. Designed for reliable outdoor use, it provides automatic lighting control with wide coverage and precise adjustment for residential, commercial, and security applications.
Detection Angle: 110°
Switching Capacity: 500W @ 120V / 1350W @ 277V (Electronic Ballast)
Voltage: 120V–277V AC, 60Hz
Color: White
Surge Protection: 6000V
Sensor Housing: UV-resistant polycarbonate
Warranty: 5-Year Limited Warranty
Free shipping on orders over $250
Product Benefits
- Automates outdoor lighting based on motion detection, enhancing security and efficiency
- Works across a wide voltage range (120V–277V), ideal for residential or commercial use
- Manual override function allows lights to remain on when needed
- Withstands harsh conditions with tough, weatherproof construction
Key Features
- Detection Pattern: 110° coverage with up to 50 ft range at 8 ft mounting height
- Time Adjustment: 10 seconds to 15 minutes
- Sensitivity Control: Adjustable from 100% to 50%
- Auto Reset: Manual override resets after 6 hours or at dawn
- Lens Design: Double look-down lens minimizes blind spots
- Temperature Range: Operates in -4°F to 104°F (-20°C to 40°C)
- Power Consumption: 4W
Specifications
Technical Specs
| Voltage | 120V–277V AC, 60Hz |
| Power Consumption | 4W |
| Surge Protection | 6000V |
| Operating Temperature | -4°F to 104°F |
Performance Specs
| Switching Capacity | 600W @ 120V (LED), 1350W @ 277V (LED) |
| Detection Range | Up to 50 ft |
| Detection Angle | 110° |
| Time Delay | 10 seconds to 15 minutes |
| Sensitivity | Adjustable from 100% to 50% |
Physical Specs
| Color | White |
| Material | Impact-resistant polycarbonate |
| Dimensions | 5" x 4" x 3" |
| Weight | 1.8 lbs |
Compliance & Safety
| Certification | UL Listed for Wet Locations |
| Warranty | 5-Year Limited Sensor Warranty |
| Manual Override | Built-in override with auto reset |
Applications
- Residential entryway and garage lighting
- Commercial loading docks or alleyways
- Security lighting for building perimeters
- Walkways, stairwells, and parking lots
Installation Tips
- Mount between 6–12 feet high for optimal detection
- Position away from reflective surfaces and swaying objects like trees
- For recessed or surface mounting, use compatible junction box and RAB CU4 plate if needed
- Use test mode and walk-test to verify coverage before final adjustment
Frequently Asked Questions
What is the detection range and angle?
The GT500W provides a 110° field of view and detects motion up to 50 feet when mounted 8 feet high.
Does it work at both 120V and 277V?
Yes, it supports dual voltage operation: 120V and 277V AC at 60Hz.
Can I override the motion function?
Yes. The built-in manual override allows lights to remain on and automatically resets after 6 hours or at dawn.
Does it include lighting fixtures?
No, this is the sensor only. Compatible floodlights (e.g., TUFFY series) must be ordered separately.
Is it weatherproof?
Yes, it is UL Listed for wet locations and made of corrosion-resistant polycarbonate.
How is time delay set?
You can adjust the time delay from 10 seconds to 15 minutes via the sensor’s control knob.
Can I use it for LED lighting?
Yes, it supports electronic ballasts and LED lighting up to 600W @ 120V and 1350W @ 277V.
