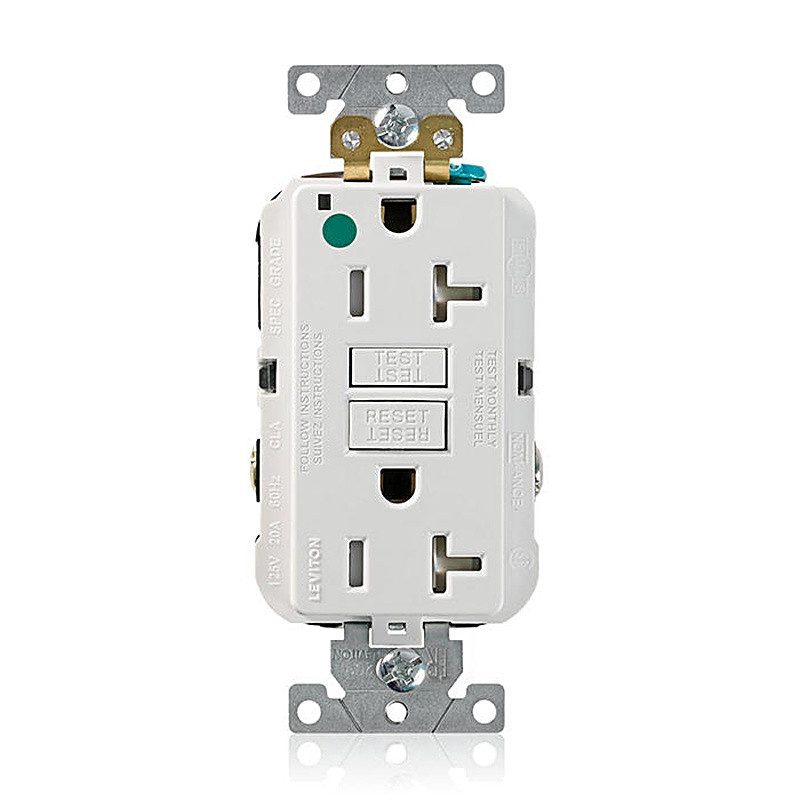

GFTR2-W 20A 125V Slim Tamper-Resistant GFCI

Product Description

Leviton GFTR2-W 20A 125V Slim Tamper-Resistant GFCI is part of the SmartlockPro® Self-Test line, offering advanced ground-fault protection with a slim design that installs easily in any wallbox. With self-testing technology, tamper-resistant shutters, and patented lockout action, this duplex receptacle delivers dependable safety and sleek aesthetics for residential, commercial, and public applications.

Benefits

• Continuous self-testing ensures reliable ground-fault protection at all times.
• Tamper-resistant shutters enhance safety by blocking foreign objects.
• Slim profile reduces wallbox crowding, making installation faster and cleaner.
• LED status indicator provides clear feedback on power, protection, and wiring status.

Key Features

• Patented Lockout Action: Prevents reset if the GFCI is damaged or compromised.
• LED Status Indicator: Green = normal, Red = alert, No light = no power.
• Back & Side Wire Terminals: Accept multiple wiring methods for easier installation.
• High-Torque Terminals: Designed to withstand power tool installation without pullout.
• Thermoplastic Face & Polycarbonate Body: Impact-resistant for long service life.
• Weather & Specialty Models Available: Guide light, audible trip alert, and WR options.

Specifications

Technical Specs

Catalog Number	GFTR2-W
Device Type	Slim Tamper-Resistant Self-Test GFCI
Rating	20A, 125V, NEMA 5-20R
Wiring	Back & Side Wire Terminals
Indicator	LED Status Light (Green/Red)
Grounding	Self-Grounding Clip
Operating Temperature	-35°C to +66°C

Physical Specs

Face Material	Thermoplastic
Body Material	Polycarbonate
Contacts	Silver Alloy
Dimensions	4.21" H × 1.69" W × 1.40" D
Strap & Screws	Stainless Steel

Performance & Compliance

Standards	UL 943 (Class A GFCI), UL 498, CSA C22.2, NOM Certified
Federal Specification	WC-596 (exception: blank face)
Flammability	UL-94 V2 rated
Warranty	2-Year Limited
Country of Origin	Mexico

Applications

• Kitchens, bathrooms, laundry rooms, basements, garages, and wet areas in homes
• Educational facilities such as classrooms, restrooms, dormitories, and labs
• Public areas including airports, malls, and restaurants
• Commercial offices, corridors, and maintenance areas
• Outdoor or damp locations with weather-resistant models

Installation Tips

• Turn off power at the circuit breaker before wiring.
• Use back or side wire terminals as preferred; ensure proper conductor seating.
• Check the LED indicator during setup—green confirms protection, red signals an issue.
• Always test with the TEST and RESET buttons after installation.

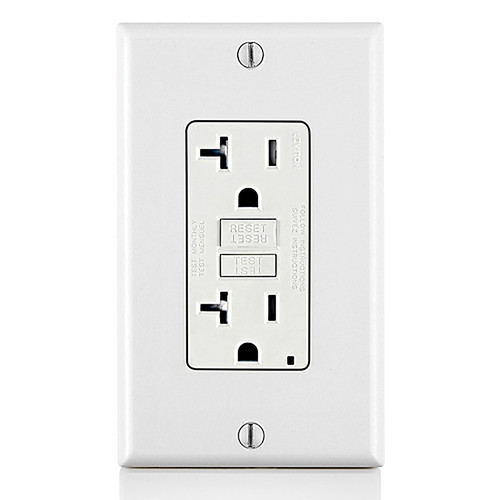

• Use a compatible Decora® wallplate for a flush, finished look.

FAQ

What does the LED status light mean?

Green indicates normal operation, red signals a fault or wiring issue, and no light means the GFCI is tripped.

Is the GFTR2-W tamper-resistant?

Yes. It includes internal shutters that meet NEC® 406.12 tamper-resistant requirements, preventing insertion of foreign objects.

What makes this GFCI "slim"?

The reduced depth allows it to take up to 25% less wallbox space than standard GFCIs, enabling easier installation in crowded boxes.

What happens if the GFCI fails?

The patented lockout mechanism prevents reset if the GFCI is damaged or compromised, ensuring user safety.

What environments is it suited for?

It is ideal for residential wet areas, commercial restrooms, educational facilities, public spaces, and more.

What certifications does it carry?

It meets UL, CSA, and NOM standards, and complies with Federal Specification WC-596.

What is the operating temperature range?

The device operates reliably from -35°C to +66°C.
