Product Description

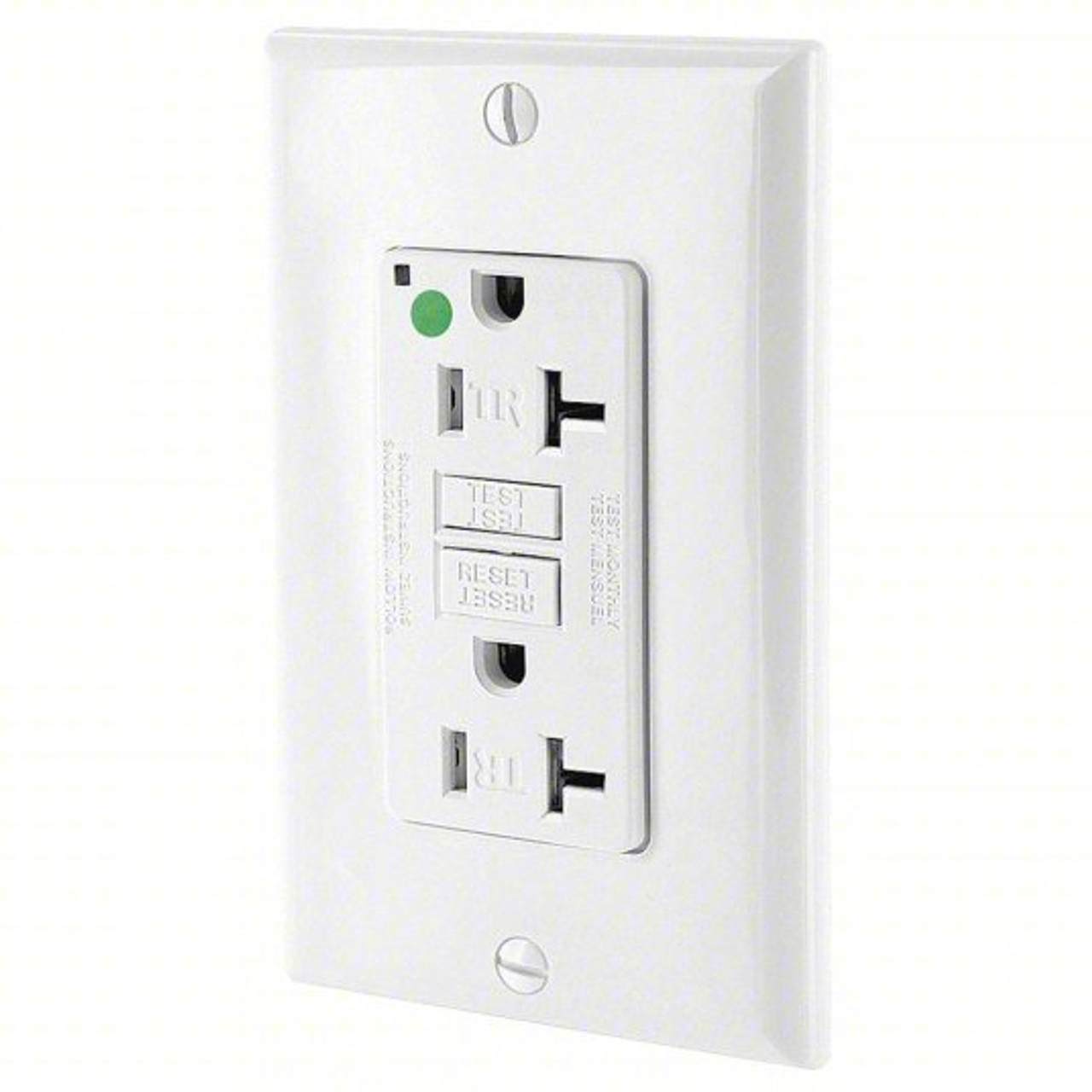

GFTR2-HGW 20A Slimline Tamper-Resistant Hospital Grade GFCI, White from Leviton’s SmartlockPro® line combines self-test safety, extra heavy-duty hospital-grade construction, and a sleek, tamper-resistant duplex design. It’s rated 20A, 125V with NEMA 5-20R configuration and includes a matching wallplate for a professional finish.
Product Summary
- Brand / Series: Leviton SmartlockPro®
- Type: Self-Test GFCI Duplex Receptacle, Extra Heavy-Duty Hospital Grade
- Rating: 20A, 125V AC, 2-Pole / 3-Wire, NEMA 5-20R
- Safety: Tamper-Resistant shutters, GFCI with self-test & power indication
- Wiring: Back & side wire; accepts 14–10 AWG
- Includes: Matching wallplate
- Free shipping on orders over $250
Benefits
- Meets hospital-grade durability for demanding healthcare environments and frequent plug cycles.
- Enhanced patient safety with continuous self-testing GFCI and clear power indication.
- Tamper-resistant shutters reduce the risk of foreign object insertion in patient rooms and public areas.
- Simplified install via back & side wiring options and self-grounding strap.
Key Features
- Extra Heavy-Duty Hospital Grade duplex outlet (NEMA 5-20R).
- Self-Test GFCI function with power indication LED and Test/Reset buttons.
- Tamper-Resistant shutter mechanism for added compliance and safety.
- Back & Side Wire termination; accepts 14–10 AWG conductors.
- Self-Grounding strap; 10 kA SCCR.
- Includes matching wallplate for a clean, finished look.
Specifications
Technical Specs
| Device Type | Duplex Receptacle, GFCI, Self-Test |
| Rating | 20A, 125 VAC, 2-Pole / 3-Wire |
| NEMA | 5-20R |
| Short-Circuit Current Rating | 10 kA |
| Horsepower | 1 HP at rated voltage |
| Grounding | Self-Grounding |
| Wiring Termination | Back & Side Wire |
| Conductor Range | 14–10 AWG solid or stranded |
| Terminal Torque | 14–18 in-lbs |
Physical Specs
| Face Material | PBT |
| Body Material | Polycarbonate |
| Strap | Galvanized Steel |
| Line Contacts | Brass |
| Terminal Screws / Clamp | Plated Steel / Brass |
| Ground Clips / Screw | Brass / Plated Steel |
| Shutter Mechanism | Delrin® Acetal |
| Color | White (wallplate included) |
Performance & Environmental
| Operating Temperature | -35°C to +66°C |
| Flammability | UL 94 V-0 rated |
| Country of Origin | China |
| Warranty | 2-Year Limited |
Compliance & Safety
| Standards | UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596 |
| NEMA | WD-1 & WD-6 |
| Identification | Terminal ID: Brass–Hot, Green–Ground, Silver–Neutral |
Applications
- Patient rooms, headwalls, and general care areas
- Nurse stations, corridors, and waiting areas
- Clinics, labs, and procedure rooms requiring hospital-grade receptacles
- Healthcare facilities, ambulatory centers, and surgical support spaces
Installation Tips
- De-energize the circuit and verify with a tester before wiring.
- Use 14–10 AWG conductors; tighten terminals to 14–18 in-lbs.
- Follow terminal ID: Brass = Hot, Silver = Neutral, Green = Ground.
- Choose back or side wiring as needed; ensure secure conductor clamping.
- After power-up, press TEST then RESET to verify GFCI operation and confirm power indication LED.
- Install GFCI protection where required by code (e.g., wet areas) and use tamper-resistant outlets in patient-accessible locations.
FAQ
Is the GFTR2-HGW a true hospital-grade receptacle?
Yes. It is specified as an extra heavy-duty, hospital-grade GFCI duplex receptacle and meets applicable UL and Federal specifications for hospital-grade devices.
What wiring methods are supported?
The device supports both back and side wiring and accepts 14–10 AWG solid or stranded conductors for installation flexibility.
Does it include a wallplate?
Yes, a matching wallplate is included for a clean, finished installation.
What is the short-circuit current rating (SCCR)?
The SCCR is 10 kA, suitable for robust hospital-grade applications.
What temperatures can it operate in?
The operating temperature range is -35°C to +66°C, supporting use in demanding environments.
Is the outlet tamper-resistant?
Yes. It features a tamper-resistant shutter mechanism to help prevent insertion of foreign objects.
What standards does it meet?
It complies with UL 943 and UL 498, CSA C22.2 No. 42 & 144, and FedSpec W-C-596; NEMA WD-1 and WD-6 apply as well.
What is the NEMA configuration?
It is a NEMA 5-20R duplex receptacle rated 20A at 125 VAC.
Does it have self-test functionality?
Yes. The SmartlockPro® design includes automatic self-testing and a power indication LED to confirm status.
