Product Description

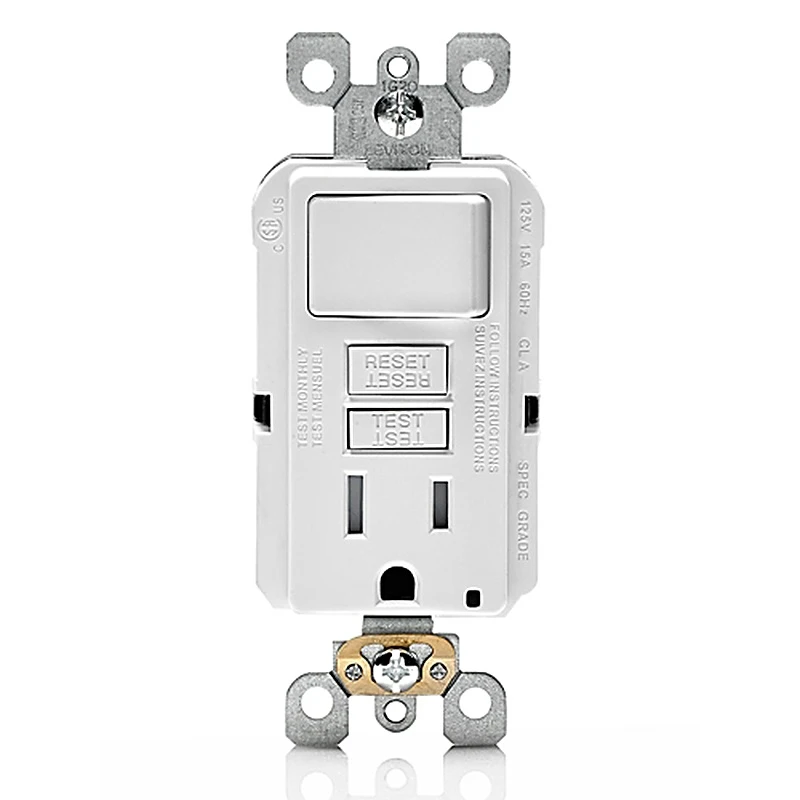

GFSW1-W Tamper-Resistant GFCI/Switch Combo by Leviton combines advanced ground-fault protection with a tamper-resistant receptacle and switch. Featuring an LED indicator and durable construction, this combination device is ideal for residential and commercial applications.
Key Features:
- Combines a 15A switch and a tamper-resistant GFCI outlet in one device.
- Provides ground-fault protection for enhanced safety.
- Red and green LED status indicators for power and protection feedback.
- Back and side wiring options for versatile installation.
- Slim profile for easier installation in wallboxes.
- Compatible with Decora wallplates for a sleek, modern appearance.
Specifications:
- Wattage: 1800W
- Voltage: 125V
- Amperage: 15A
- Receptacle Type: NEMA 5-15R
- Material: Thermoplastic cover and polycarbonate body
- Compliance: UL 943, UL 498, CSA C22.2
- Operating Temperature: -35°C to 66°C
- Warranty: Limited 2-Year Warranty
Installation Tips:
- Ensure compatibility with your electrical system and wallbox before installation.
- Follow the wiring diagram in the spec sheet for proper setup.
- Test the GFCI function after installation using the built-in TEST and RESET buttons.
- Use a Decora wallplate to complete the installation for a polished look.
Frequently Asked Questions:
Q: What is the function of the LED indicators?
A: The red and green LED indicators provide visual feedback on the power and protection status of the device.
Q: Is this device tamper-resistant?
A: Yes, the tamper-resistant shutters prevent access unless a proper plug is inserted.
Q: Can this device be used outdoors?
A: No, this device is intended for indoor use in dry locations.
Q: Does the GFCI outlet require testing after installation?
A: Yes, the GFCI should be tested using the TEST and RESET buttons to ensure proper operation.
Q: What materials are used for this device?
A: It features a thermoplastic cover and a polycarbonate body for durability.
