Product Description

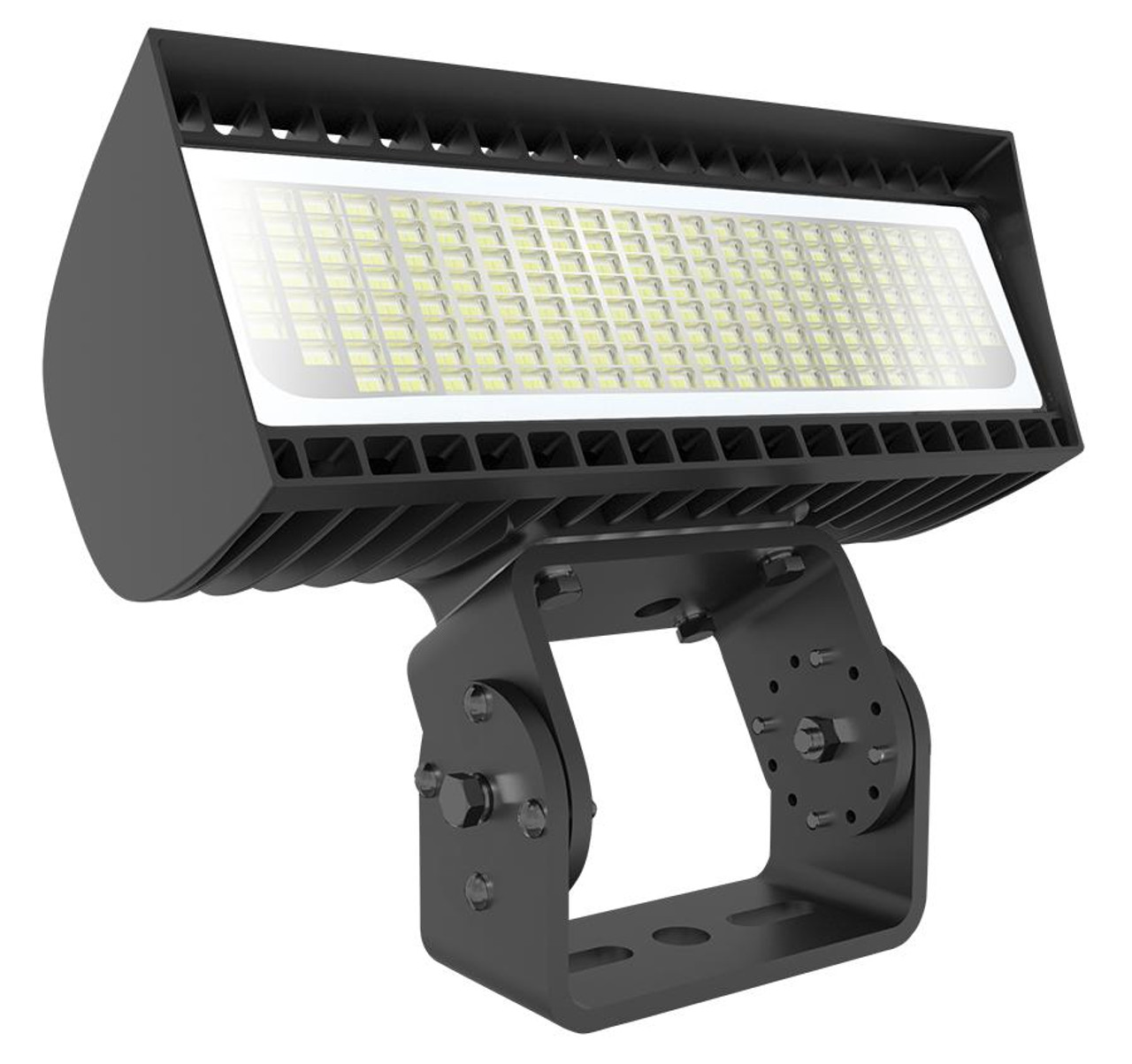

FXLEDXST Floodlights 10206-22010 Lumens Flexflood Extra Small Field Adjustable Power/CCT 80/60/40W Trunnion Mount 5000K/4000K 120V-277V Bronze by RAB Lighting delivers high-performance and versatile illumination. Featuring field-adjustable wattage and color temperature, this compact floodlight is ideal for a variety of outdoor lighting applications.
Key Features:
- Field adjustable power settings: 80W, 60W, or 40W.
- Selectable color temperatures: 4000K (neutral white) or 5000K (cool white).
- Delivers 10,206 to 22,010 lumens based on power settings.
- NEMA 6H x 6V beam spread for uniform illumination.
- Durable die-cast aluminum housing with a bronze finish.
- IP66 rated for dust and water resistance, suitable for wet locations.
- 100,000-hour LED lifespan ensures minimal maintenance.
- Includes heavy-duty trunnion mount with stainless steel hardware for secure installation.
Specifications:
- Lumen Output: 10,206-22,010LM
- Color Temperature: 4000K/5000K
- CRI: 82-85CRI
- Wattage: Field adjustable (80W/60W/40W)
- Voltage: 120-277V
- IP Rating: IP66
- Compliance: UL Listed for Wet Locations, RoHS Compliant
- Lifespan: 100,000 hours at L70
- Warranty: 10-Year Limited Warranty
Installation Tips:
- Use the heavy-duty trunnion mount for secure installation on flat surfaces.
- Adjust the power and color temperature settings to suit the application before mounting.
- Position the fixture to achieve optimal coverage with the 6H x 6V beam spread.
- Follow the wiring diagram for proper connection to 0-10V dimming systems.
Frequently Asked Questions:
Q: What is the advantage of field adjustability?
A: It allows you to select the desired wattage (80W/60W/40W) and color temperature (4000K/5000K) on-site, offering flexibility for different applications.
Q: Is this fixture suitable for outdoor use?
A: Yes, it is UL Listed for wet locations and IP66 rated for dust and water resistance.
Q: What is the expected lifespan of this fixture?
A: The LED module is rated for 100,000 hours at L70.
Q: Does this fixture support dimming?
A: Yes, it supports 0-10V dimming systems for adjustable brightness levels.
Q: What type of mounting does this fixture use?
A: It includes a heavy-duty trunnion mount with stainless steel hardware.
