Product Description

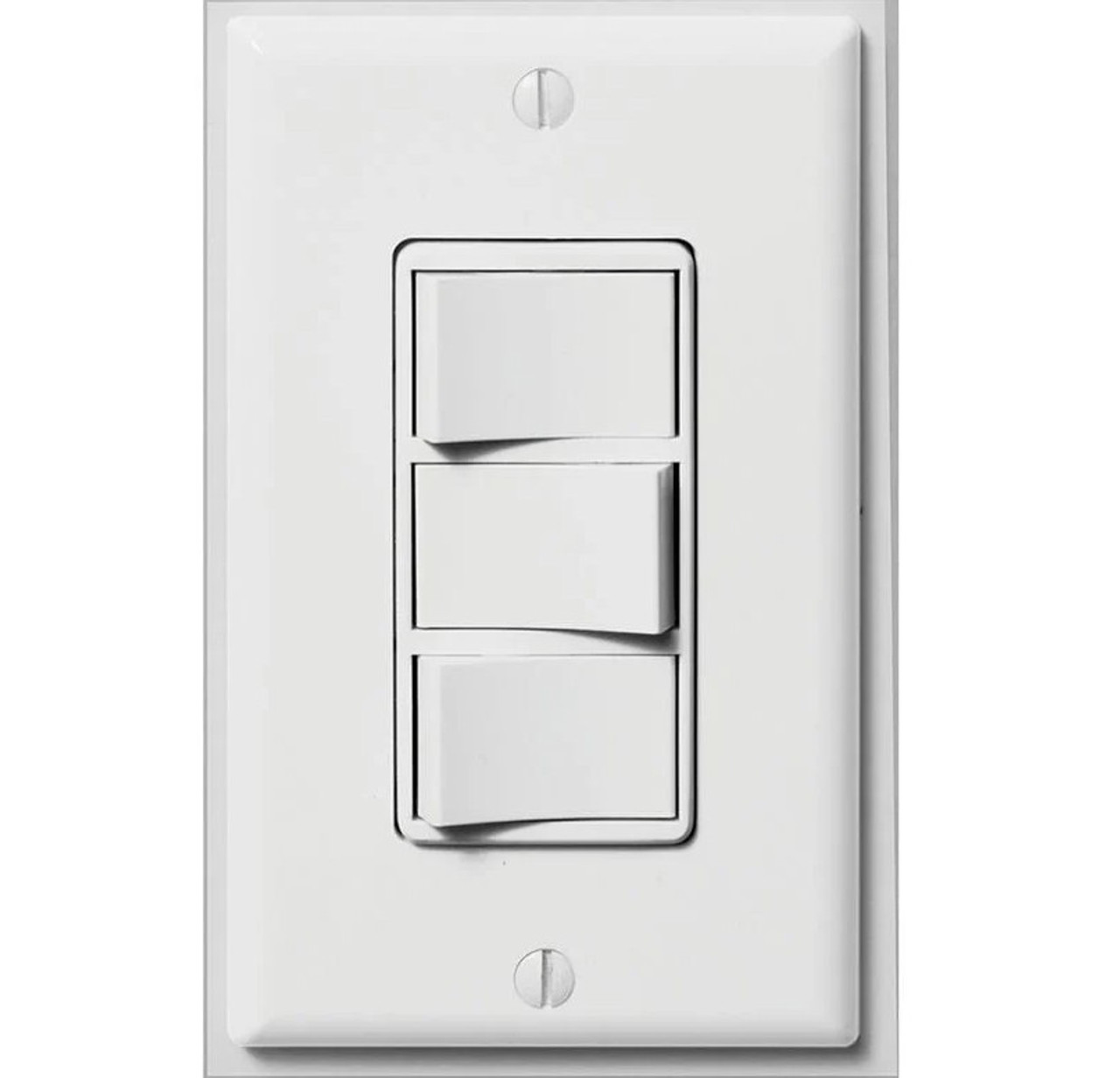

FV-WCSW41-W EcoSwitch 4 Function Wall Switch by Panasonic is the ultimate multi-function control solution for integrated bathroom ventilation systems. Specifically designed for use with the FV-11VHL2 fan/heater/light/night-light unit, this commercial-grade wall switch features three rocker switches and a top on-off-on toggle to independently control up to four loads. With a clean white finish and matching wall plate, it fits a single-gang box while maximizing functionality in a compact footprint.
- Control Type: 3 rocker switches + 1 on-off-on toggle switch
- Total Amperage: 20A
- Individual Switch Amperage: 15A
- Voltage: 120V
- Installation: Single-gang box
- Includes matching wall plate
- Free shipping on orders over $250
Product Benefits
- All-in-one control for fan, heater, light, and night-light with a single switch
- Maximize wall space with 4-function operation in a single-gang box
- Ideal for Panasonic FV-11VHL2 systems and similar configurations
- UL/CSA listed for safety and code compliance
Key Features
- Unique 4-function design: Includes one single pole/double throw switch and two single pole on-off switches
- Commercial-grade rocker switches rated for 15A
- Total load support up to 20 amps across all switches
- Quickwire push-in, side, and back terminals for flexible wiring options
- White wall plate included for professional finish
Enhanced Specifications
Technical Specs
| Voltage | 120V |
| Individual Switch Amperage | 15A |
| Total Amperage | 20A |
| Switch Configuration | 1x Single Pole/Double Throw (top), 2x Single Pole |
Physical Specs
| Mounting | Fits standard single-gang box |
| Termination Type | Quickwire Push-In, Side, and Back Wire |
| Wall Plate | Included |
| Finish | White |
Compliance & Safety
| Standards & Listings | UL/CSA Listed |
| Warranty | 2-Year Limited |
Application Examples
- Full-feature bathroom ventilation units like FV-11VHL2
- Fan / heater / light / night-light systems
- Residential new construction or remodels
- Multi-load switching in compact wall space
Installation Tips
- Use with properly rated 20A 120V circuits
- Ensure all loads are within individual and total amperage ratings
- Wiring options include push-in, side, or back wire terminals
- Match switch configuration to your ventilation unit’s load layout
Frequently Asked Questions
What systems is this switch compatible with?
It is specifically designed for the Panasonic FV-11VHL2 fan/heater/light/night-light, but can be used with any system requiring 4-function control.
How does the on-off-on switch work?
The top switch is a single pole/double throw (SPDT) that allows on/off/on functionality—ideal for toggling between two outputs like light and night-light.
Can I use this switch with LED lighting?
Yes, it is commercial-grade and supports current LED and DC motor loads.
What is the maximum amperage supported?
Each switch is rated for 15A, with a total load capacity of 20A across the device.
Is it UL certified?
Yes, this switch is UL/CSA listed for safety and code compliance.
Does it come with the wall plate?
Yes, a matching white wall plate is included in the package.
Can I install this in a standard electrical box?
Yes, it is designed to fit in a single-gang box commonly used in homes.
What wiring methods are supported?
You can use quickwire push-in, side wire, or back wire termination methods.
