Product Description

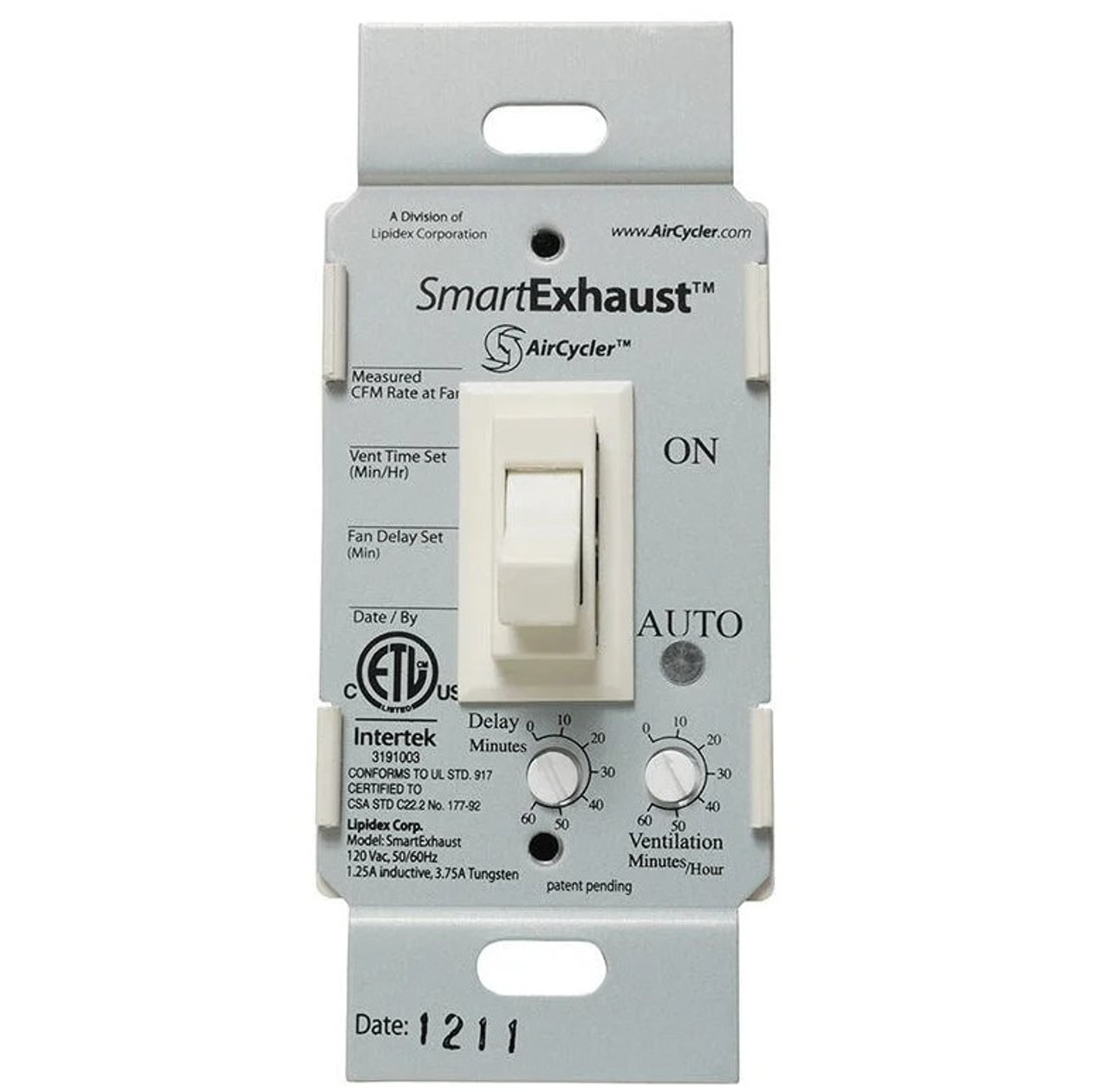

FV-WCPT1-W WhisperControl™ SmartExhaust Wall Control by Panasonic transforms standard bathroom exhaust fans into code-compliant, energy-efficient ventilation systems. With built-in programmable ventilation and delay timers, this advanced fan/light wall control is designed to support ASHRAE 62.2 ventilation requirements. The SmartExhaust control helps reduce energy consumption while maintaining optimal indoor air quality, all from a single convenient switch.
- Function: Fan/Light Control with Delay Timer
- ASHRAE 62.2 Compliant: When used with compliant fans
- Compatibility: Works with all light types (LED, CFL, incandescent, fluorescent)
- Programmable Settings: VENT and DELAY timers
- Wall Plate: Not included
- Free shipping on orders over $250
Product Benefits
- Ensures ASHRAE 62.2 compliance for bathroom exhaust systems
- Single switch replaces separate fan and light controls
- Smart delay continues ventilation after light is turned off
- Supports LEED and Energy Star credits with enhanced ventilation control
Key Features
- Programmable DELAY setting: Extends fan operation after light is off
- Programmable VENT setting: Sets runtime per hour for continuous ventilation
- Microprocessor-based logic: Automatically adjusts run time based on usage
- Compatible with all lighting types: LED, CFL, fluorescent, incandescent
- Simple retrofit installation: Replaces existing wall switch without extra wiring
Enhanced Specifications
Technical Specs
| Control Type | Fan/Light with Programmable Delay |
| Compliance | ASHRAE 62.2 (when used with compliant fans) |
| Lighting Compatibility | LED, CFL, Fluorescent, Incandescent |
Physical Specs
| Wall Plate | Not included |
| Mounting | Standard wall switch opening |
Compliance & Safety
| Standards | ASHRAE 62.2 Support, LEED / Energy Star Credit Eligible |
| Warranty | 2-Year Limited Warranty |
Application Examples
- Bathrooms requiring code-compliant ventilation
- Retrofit installations to reduce energy usage
- High-traffic restrooms with fan overrun needs
- Homes seeking LEED or Energy Star certification
Installation Tips
- Designed to fit standard wall switch boxes
- Program VENT and DELAY settings for optimal air quality and energy efficiency
- Use in conjunction with ASHRAE-compliant fans for full code compliance
- Be sure to order a separate wall plate if one is not already available
Frequently Asked Questions
What does the SmartExhaust control do?
It combines fan and light control with programmable delay and ventilation timers, automating air circulation based on user settings.
Is this compatible with LED lights?
Yes, it works with LED, CFL, incandescent, and fluorescent light types.
How does the DELAY function work?
After the light is turned off, the fan continues to run for a user-set period to complete ventilation.
What is the VENT setting?
It allows you to set how many minutes per hour the fan should run to meet air quality standards.
Does this control include a wall plate?
No, the wall plate is not included and must be purchased separately.
Does it require special wiring?
No. It installs in place of a standard wall switch—no additional wiring is necessary.
Is this ASHRAE 62.2 compliant?
Yes, when used with an ASHRAE 62.2 compliant fan, it meets the standard's ventilation requirements.
Can it earn LEED or Energy Star credits?
Yes, SmartExhaust helps qualify for both LEED and Energy Star credits through improved ventilation performance.
