Product Description

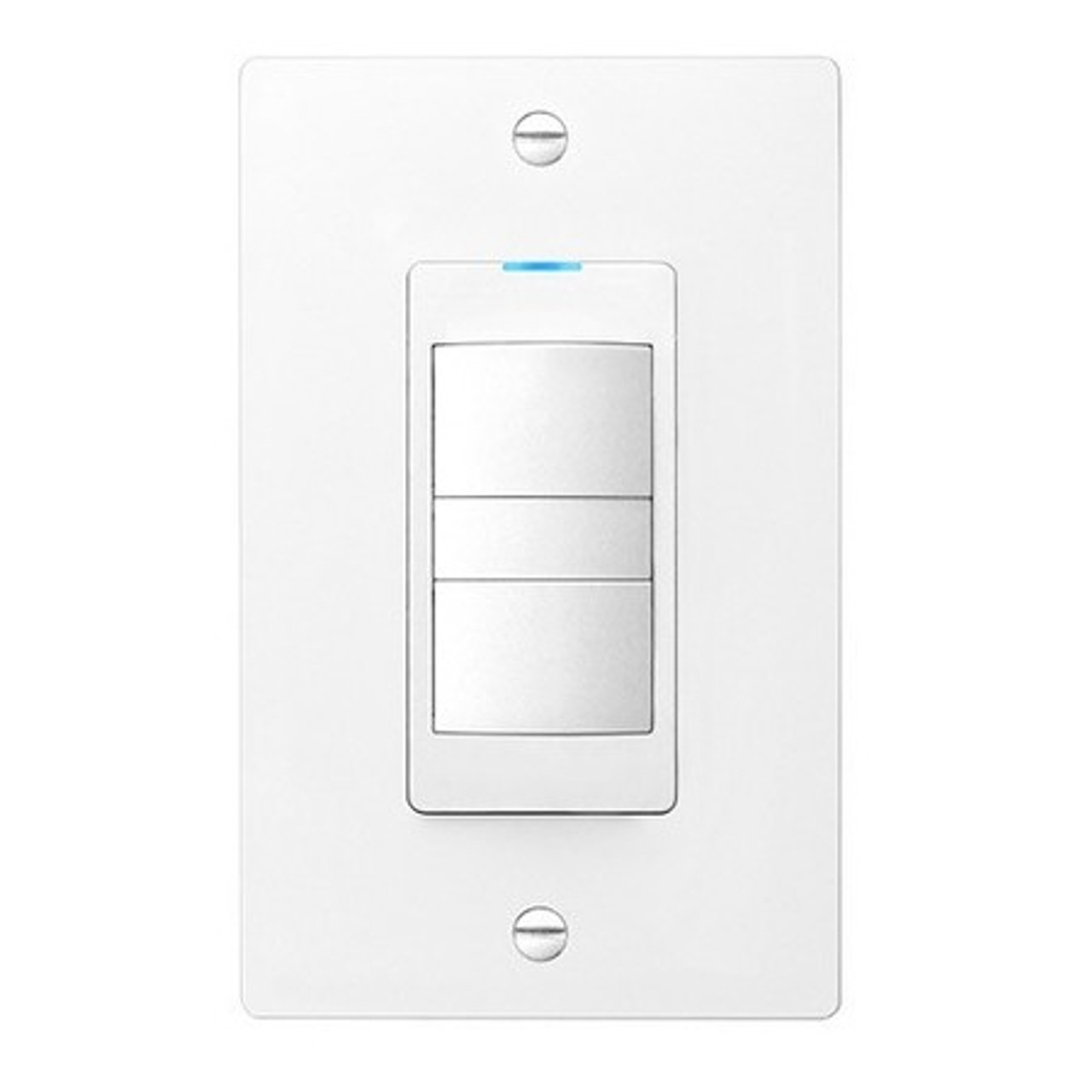

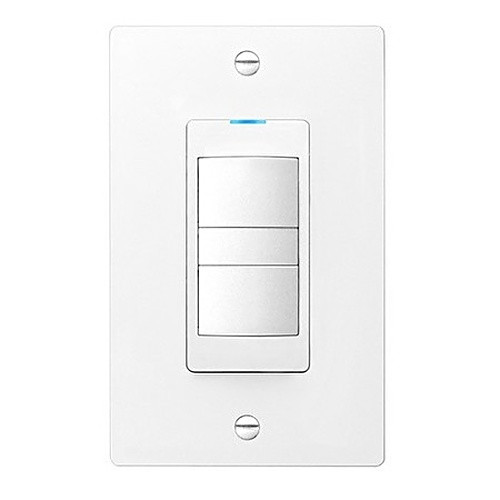

Panasonic FV-WCD02-W WhisperControl™ is a dual-function wall timer that offers both fan and light control with adjustable countdown presets and hourly ventilation options. With user-selectable countdown times and an integrated Minutes Per Hour (MPH) timer, it helps ensure ventilation compliance while giving users flexible and intuitive control over indoor air quality and lighting.
Brand: Panasonic
Model: FV-WCD02-W
Control Type: Preset Countdown & MPH Timer with Light/Fan Switch
Voltage: 120V AC
Fan Load Capacity: 8 Amps
Light Load Capacity: 400 Watts (Fluorescent)
Blue LED Indicator: Yes (Fan status)
Free shipping on orders over $250
Product Benefits
- Offers easy and reliable control of both ventilation fans and lighting
- Helps meet ASHRAE 62.2 hourly ventilation standards with built-in MPH timer
- Saves energy by crediting manual fan use toward MPH timer quota
- Ideal for bathrooms, laundry rooms, or utility spaces requiring timed control
Key Features
- Countdown Timer: Select preset durations of 5, 15, 30, 45, or 60 minutes
- MPH Timer: Runs fan automatically for 0–60 minutes each hour
- Manual ON/OFF Control: Separate buttons for fan and light
- Blue LED: Illuminates when fan is operating
- UL/CSA Listed: Designed for safe residential installation
- Includes matching screwless wall plate
Specifications
Technical Specs
| Voltage | 120V AC |
| Fan Load | 8 Amps |
| Light Load | 400W (Fluorescent) |
| Horsepower Rating | 1 HP @ 120V |
| Wire Termination | 6" Leads (Copper) |
| Grounding Required | Yes |
Compliance
| Certifications | UL/CSA Listed |
| Standards Met | ASHRAE 62.2, LEED, ENERGY STAR® 3.0 |
| Warranty | 2-Year Limited Warranty |
Application Examples
- Bathrooms requiring countdown timer control for fans and lights
- Laundry rooms with intermittent ventilation needs
- Residential builds with ENERGY STAR® or LEED compliance targets
- Any room with combined fan/light installation needing timed automation
Installation Tips
- Mount in a standard single-gang wall box
- Follow provided wiring diagram for fan/light split control:contentReference[oaicite:0]{index=0}
- Use only with 120V AC power circuits
- Adjust timer and MPH settings using concealed dial controls under cover plate:contentReference[oaicite:1]{index=1}
- Ensure the device is grounded and secured using copper wire connections
Frequently Asked Questions
What functions does the FV-WCD02-W control?
It provides countdown timing and automatic hourly operation for a ventilation fan, and manual ON/OFF control for a connected light:contentReference[oaicite:2]{index=2}.
What countdown intervals can I choose?
You can set the timer to 5, 15, 30, 45, or 60 minutes using the rotary dial inside the housing cover.
What is the MPH Timer and why is it important?
The Minutes Per Hour timer allows you to run the fan for a selected number of minutes every hour to meet ASHRAE 62.2 continuous ventilation requirements:contentReference[oaicite:3]{index=3}.
Does the fan and light work independently?
Yes. There are separate manual control switches—one for the fan and another for the light:contentReference[oaicite:4]{index=4}.
Can I use this switch outdoors?
No. It is for indoor, dry-location use only. Do not install in wet or damp environments.
Is the wall plate included?
Yes. Each unit ships with a matching color wall plate for a clean, flush-mounted finish.
Does this product help with code compliance?
Absolutely. It’s designed to help you meet ASHRAE 62.2, ENERGY STAR® 3.0, LEED, and CALGreen ventilation code standards.
