Product Description

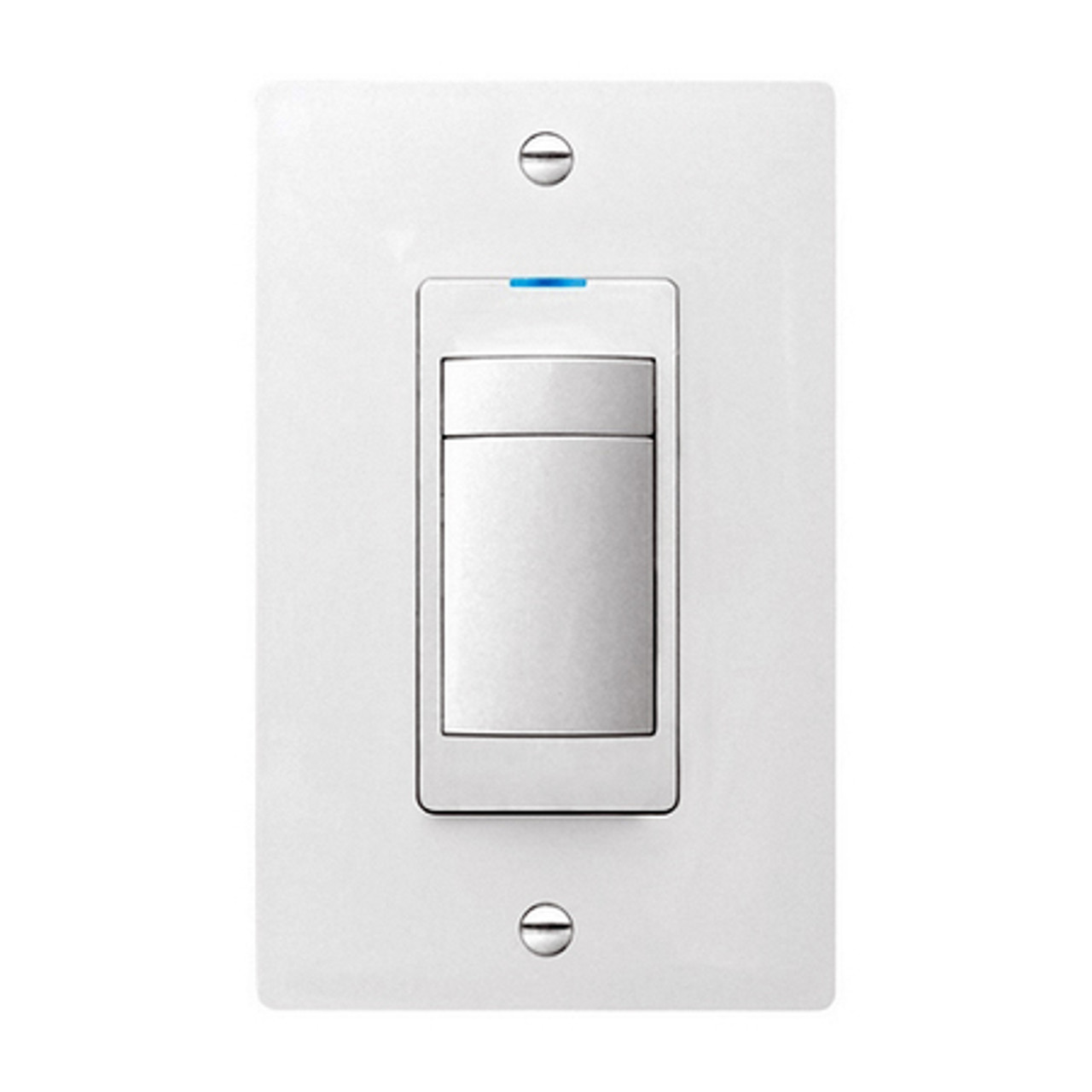

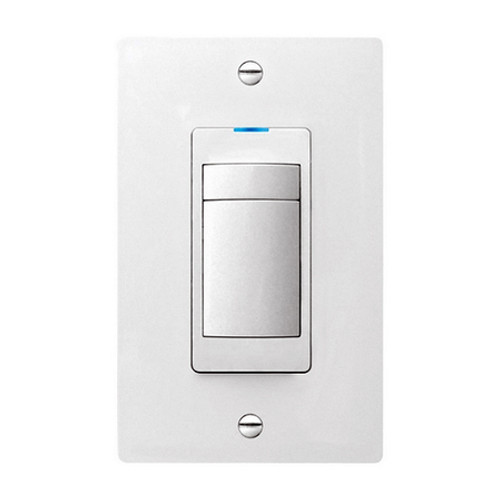

Panasonic FV-WCD01-W WhisperControl™ is a smart preset countdown and hourly timer designed for effective ventilation management in residential and commercial spaces. With selectable countdown presets and an adjustable “Minutes Per Hour” (MPH) timer, this commercial-grade wall control helps meet ASHRAE 62.2 ventilation requirements with ease and flexibility.
Brand: Panasonic
Model: FV-WCD01-W
Control Type: Preset Countdown and Minutes Per Hour Fan Timer
Voltage: 120V AC
Amperage: 8 Amps
HP Rating: 1 HP @ 120V
Blue LED Indicator: Yes (fan operation)
Free shipping on orders over $250
Product Benefits
- Ensures continuous or periodic ventilation per ASHRAE 62.2 guidelines
- Lets users manually override with countdown options: 5, 15, 30, 45, or 60 minutes
- Credits manual fan use toward the MPH quota for energy efficiency
- Helps prevent mold and moisture buildup in enclosed spaces
Key Features
- Dual Timing Functionality: Countdown timer and MPH fan timer work together or independently
- Blue LED Indicator: Lights up when fan is on—useful in low-light areas
- Manual Fan ON/OFF: Easily override with tactile push-button control
- Commercial Grade Build: Rated for 8A max load with UL/CSA listing
- Includes Matching Wall Plate: Clean finish for any wall box install
Specifications
Technical Specs
| Voltage | 120V AC |
| Current Load | 8 Amps |
| Horsepower Rating | 1 HP @ 120V |
| Wiring Termination | 6" Copper Leads |
| Grounding Required | Yes |
Compliance
| Certifications | UL/CSA Listed |
| Standards Met | ASHRAE 62.2, ENERGY STAR® 3.0, LEED |
| Warranty | 2-Year Limited Warranty |
Application Examples
- Bathroom exhaust fan scheduling
- Laundry rooms, basements, or utility spaces needing timed ventilation
- Homes built to ENERGY STAR®, LEED, or CALGreen standards
- Multifamily housing ventilation code compliance
Installation Tips
- Install using a standard single-gang wall box and 120V power supply
- Secure all wiring connections per NEC and local codes
- Adjust countdown and MPH settings using internal dials (tool included)
- Keep away from air drafts or cold zones that could cause improper cycling
Frequently Asked Questions
What fan types are compatible with FV-WCD01-W?
It works with most standard bathroom exhaust fans rated up to 8 Amps. Ideal pairing with Panasonic Whisper series fans.
How do the countdown and MPH timers interact?
The MPH timer will credit any manual countdown time used toward the next hourly quota, up to 3 hours in advance:contentReference[oaicite:0]{index=0}.
Can I disable the MPH timer?
Yes. Set the MPH dial to “0” to disable automatic hourly operation. Fan will then only activate via countdown switch:contentReference[oaicite:1]{index=1}.
What is the purpose of the LED light?
The blue LED provides a visual indicator that the fan is operating, especially useful in areas without fan noise:contentReference[oaicite:2]{index=2}.
Is this model suited for light control?
No. This model is fan-only. Use FV-WCD02-W if light control is also required.
How is it wired?
Wiring diagram is included inside the install guide. Connect to Hot, Neutral, Ground, and load (fan). No neutral bypass is supported:contentReference[oaicite:3]{index=3}.
Does it come with the wall plate?
Yes, a color-matched screwless wall plate is included for a clean installation.
