Product Description

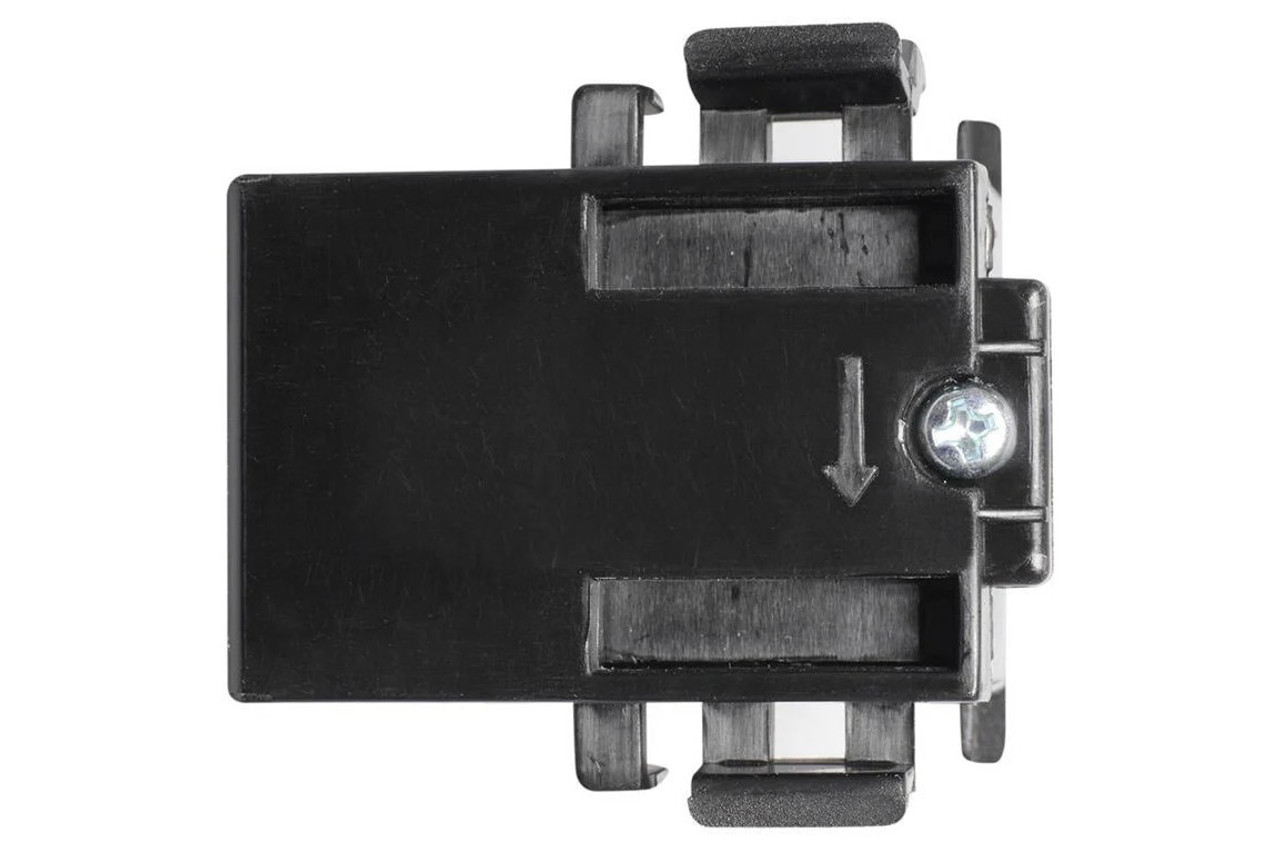

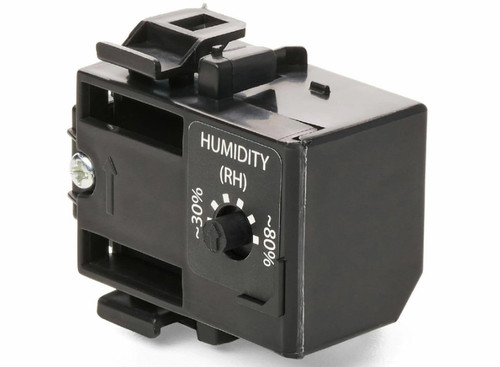

FV-CSVK1 WhisperGreen® Select Plug 'N Play™ Condensation Sensor Module by Panasonic is a humidity-sensing accessory designed to boost WhisperGreen® Select fans to high speed automatically when elevated moisture levels are detected. This module is ideal for bathrooms, laundry areas, and moisture-prone spaces where ventilation is critical to prevent mold and mildew. It works seamlessly with multi-speed functionality and includes a built-in 20-minute delay off timer.
- Model: FV-CSVK1
- Type: Plug 'N Play™ Condensation Sensor
- Function: Activates fan when humidity is detected
- Compatible Models: WhisperGreen® Select fans with PCB slot
- Free shipping on orders over $250
Benefits
- Automatically removes excess moisture to prevent mold and mildew
- Supports building codes requiring humidity-based fan control
- Improves energy efficiency by operating fan only when needed
- Enhances smart home functionality with automatic response
Key Features
- Automatic activation: Turns fan to high speed when humidity rises
- 20-minute delay timer: Keeps fan running after moisture clears
- Easy installation: Plugs directly into fan’s base PCB slot
- Sensor location: Mounts behind grille for clean appearance
- Works with: Multi-speed and motion modules for enhanced control
Specifications
| Technical Specs | |
|---|---|
| Sensor Type | Condensation/Humidity Sensor |
| Trigger | Humidity threshold detection |
| Timer Delay | 20 minutes (automatic reset) |
| Installation | Plug 'N Play into PCB + grille mount |
| Compatibility | |
|---|---|
| Compatible Fans | FV-0511VK2, FV-1115VK2, FV-0511VKL2, FV-1115VKL2 and others with Plug 'N Play™ support |
| Sensor Integration | Works with FV-VS15VK1 and FV-MSVK1 modules |
Application Examples
- Bathrooms with poor ventilation or high moisture use
- Steam-prone showers or spa areas
- Laundry rooms and utility spaces
- Condensation-sensitive construction like LEED or Title 24 projects
Installation Tips
- Remove grille and PCB connector cover before installing the module
- Plug the sensor into the PCB slot and secure behind grille
- Ensure clasp is properly connected to hold sensor wiring
- Sensor will activate automatically—no calibration required
- Pair with multi-speed control for optimal moisture management
Frequently Asked Questions
Q: What does the FV-CSVK1 condensation sensor do?
A: It detects elevated humidity levels and turns the fan to high speed, helping prevent moisture buildup.
Q: Can I use this sensor on any Panasonic fan?
A: It is designed specifically for WhisperGreen® Select models with Plug 'N Play™ capability.
Q: Does it require manual settings?
A: No, it automatically senses humidity and activates the fan with a built-in 20-minute timer.
Q: Can it work with other modules?
A: Yes, it integrates with the multi-speed (FV-VS15VK1) and motion sensor (FV-MSVK1) modules for smart control.
Q: Where does the sensor install?
A: It plugs into the fan’s PCB and mounts behind the grille using the included components.
Q: Is this sensor required for code compliance?
A: In some states like California, it supports CalGreen and Title 24 requirements for humidity control ventilation.
