Product Description

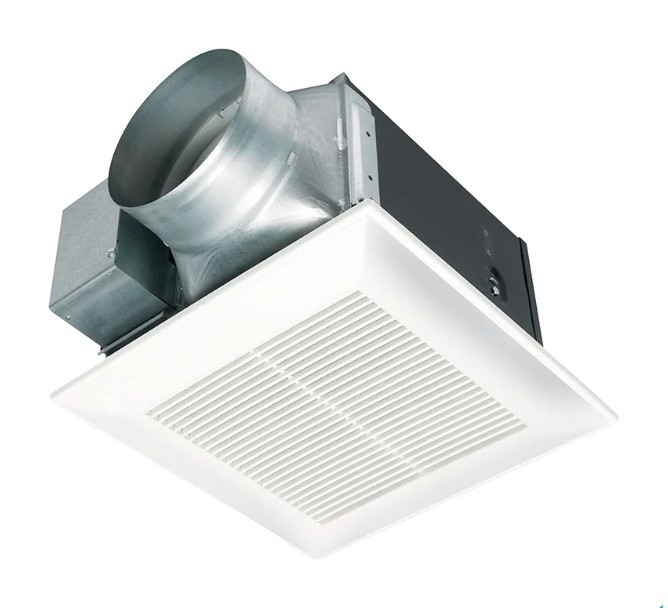

FV-30VQ3 WhisperCeiling® High Volume Fan by Panasonic provides exceptionally quiet, high-capacity ventilation for large residential or commercial bathrooms. Operating at just 2.0 sones and delivering 290 CFM at 0.1" static pressure, this ENERGY STAR® rated unit meets stringent requirements for ASHRAE 62.2, Title 24, LEED, and more. Its galvanized steel housing, enclosed four-pole motor, and backdraft damper ensure long-term durability and quiet performance—even in the most demanding environments.
- Model: FV-30VQ3
- Mount: Ceiling
- Airflow: 290 CFM @ 0.1" w.g.
- Noise Level: 2.0 Sones
- Duct Size: 6” diameter
- Certifications: ENERGY STAR®, UL/cUL, HVI, Title 24
- Free shipping on orders over $250
Benefits
- High-volume 290 CFM ventilation perfect for large or commercial bathrooms
- ENERGY STAR® certified for efficient, continuous operation
- UL listed for tub/shower installation with GFCI protection
- Durable galvanized steel housing resists corrosion and ensures longevity
Key Features
- Four-pole totally enclosed motor rated for continuous use
- Quiet operation: only 2.0 sones at full airflow
- Includes backdraft damper to reduce outside air intrusion
- Mounting bracket expands up to 26” for flexible installation
- Attractive grille design attaches easily with spring-loaded clips
Specifications
| Technical Specs | |
|---|---|
| Voltage | 120V / 60Hz |
| Motor Type | Totally enclosed condenser, four-pole |
| Duct Size | 6” diameter |
| Installation | Ceiling mount; UL-listed for tub/shower with GFCI |
| Performance Specs | |
|---|---|
| Air Volume | 290 CFM @ 0.1" w.g. / 243 CFM @ 0.25" w.g. |
| Noise Level | 2.0 Sones |
| Power Consumption | 67.1W @ 0.1" / 65.8W @ 0.25" |
| Energy Efficiency | 4.6 CFM/W @ 0.1" / 4.1 CFM/W @ 0.25" |
| Speed | 877 RPM @ 0.1" / 990 RPM @ 0.25" |
| Current Draw | 0.53 Amps |
| Compliance & Safety | |
|---|---|
| Certifications | ENERGY STAR®, UL, cUL, HVI, Title 24, ASHRAE 62.2, LEED |
| Warranty | 3-Year Limited on all parts |
Application Examples
- Large bathrooms or shower areas
- Commercial restrooms and locker rooms
- Laundry rooms and utility spaces
- High-moisture zones in hospitality, healthcare, or education facilities
Installation Tips
- Use included suspension bracket set for joists spaced up to 26"
- Seal 6" duct to adapter using mastic or UL-approved foil tape
- Secure flange to ceiling using caulk to eliminate air leakage
- Fan grille attaches easily with torsion springs—no screws required
- Install only on GFCI-protected circuits when used above showers or tubs
Frequently Asked Questions
Q: What is the airflow rating of the FV-30VQ3?
A: It delivers 290 CFM at 0.1" static pressure and 243 CFM at 0.25" w.g.:contentReference[oaicite:0]{index=0}
Q: How loud is this fan during operation?
A: The FV-30VQ3 operates at 2.0 sones, which is relatively quiet given its high airflow output:contentReference[oaicite:1]{index=1}.
Q: Is this model ENERGY STAR® certified?
A: Yes, it meets ENERGY STAR® and HVI efficiency standards with a rating of 4.6 CFM/W at 0.1" w.g.:contentReference[oaicite:2]{index=2}
Q: Can it be installed over a shower or bathtub?
A: Yes, it is UL/cUL listed for installation above showers or tubs when used with a GFCI branch circuit:contentReference[oaicite:3]{index=3}.
Q: What kind of motor is used in this fan?
A: It features a four-pole, totally enclosed condenser motor designed for continuous operation:contentReference[oaicite:4]{index=4}.
Q: What size duct should be used?
A: A 6" diameter duct is required for optimal airflow and performance:contentReference[oaicite:5]{index=5}.
Q: What’s included with the unit?
A: The fan comes with a grille, mounting bracket set, dampers, and hardware needed for ceiling installation:contentReference[oaicite:6]{index=6}.
