Product Description
FV-20VQ3 WhisperCeiling® High Volume Fan by Panasonic delivers powerful, quiet, and energy-efficient ventilation with an impressive 190 CFM output. Designed for continuous operation, this ceiling-mounted fan is ideal for large bathrooms, laundry rooms, and commercial spaces. The ENERGY STAR® rated unit operates at just 0.9 sones and meets stringent code requirements including ASHRAE 62.2, California Title 24, and LEED. Its durable galvanized steel housing, enclosed motor, and backdraft damper ensure long-lasting, reliable performance.
- Model: FV-20VQ3
- Mount: Ceiling
- Airflow: 190 CFM @ 0.1" w.g.
- Noise Level: 0.9 Sones

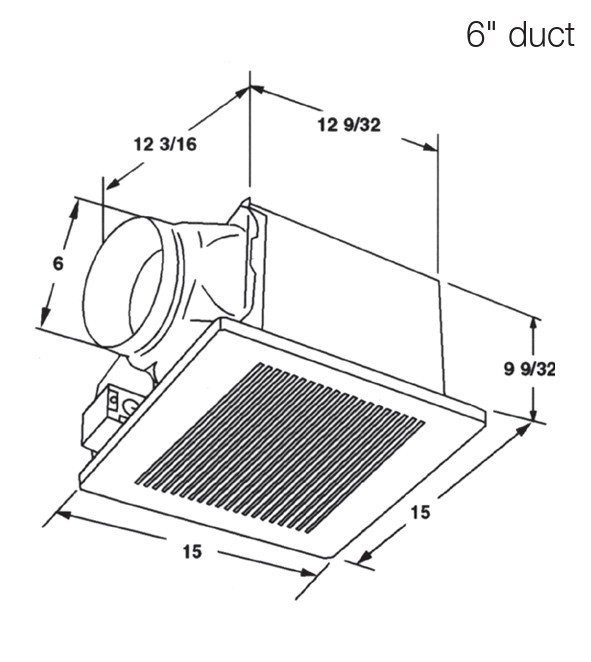

- Duct Size: 6” diameter
- Certifications: ENERGY STAR®, UL/cUL, HVI, Title 24
- Free shipping on orders over $250
Benefits
- Delivers powerful 190 CFM airflow for larger spaces requiring robust ventilation
- Operates at a whisper-quiet 0.9 sones to minimize noise pollution
- ENERGY STAR® certified for maximum efficiency and utility rebate eligibility
- UL listed for shower/tub use with GFCI protection
Key Features
- Four-pole enclosed motor rated for continuous operation
- Galvanized steel housing with rust-proof paint for durability
- Backdraft damper prevents air leakage
- Attractive grille design made of PP material with spring-loaded mounting
- Expandable mounting brackets up to 26” for flexible installation
Specifications
| Technical Specs | |
|---|---|
| Voltage | 120V / 60Hz |
| Motor Type | Totally enclosed, four-pole condenser motor |
| Duct Size | 6” diameter |
| Safety | UL/cUL Listed for GFCI-protected shower/tub installation |
| Performance Specs | |
|---|---|
| Air Volume | 190 CFM @ 0.1" w.g. / 144 CFM @ 0.25" w.g. |
| Noise Level | 0.9 Sones |
| Power Consumption | 44.5W @ 0.1" w.g. |
| Energy Efficiency | 4.3 CFM/Watt |
| Fan Speed | 696 RPM |
| Current | 0.35 Amps |
| Compliance & Safety | |
|---|---|
| Certifications | ENERGY STAR®, HVI Certified, UL, cUL, California Title 24 |
| Warranty | 3-Year Limited on all parts |
Application Examples
- Large residential bathrooms and powder rooms
- Utility and laundry rooms
- Commercial restrooms and locker rooms
- Spaces requiring continuous or high-capacity ventilation
Installation Tips
- Mount directly to ceiling joists using included suspension bracket and fasteners
- Seal 6" duct to adapter using mastic or approved foil tape
- Grille attaches via torsion springs—squeeze and insert
- Install over tub or shower only with GFCI-protected circuit
- Ensure fan is grounded and installed per NEC standards
Frequently Asked Questions
Q: What is the airflow capacity of the FV-20VQ3?
A: It delivers 190 CFM at 0.1" static pressure and 144 CFM at 0.25" static pressure:contentReference[oaicite:0]{index=0}.
Q: How quiet is this model?
A: The FV-20VQ3 operates at just 0.9 sones, making it suitable for noise-sensitive applications:contentReference[oaicite:1]{index=1}.
Q: Can this fan be installed over a shower?
A: Yes, it is UL/cUL listed for installation over tubs or showers with a GFCI-protected circuit:contentReference[oaicite:2]{index=2}.
Q: What kind of motor does this fan use?
A: It features a four-pole, totally enclosed condenser motor designed for continuous operation:contentReference[oaicite:3]{index=3}.
Q: Is this unit ENERGY STAR® certified?
A: Yes, it meets ENERGY STAR® requirements and is highly energy-efficient at 4.3 CFM/Watt:contentReference[oaicite:4]{index=4}.
Q: What duct size is required?
A: A 6" diameter duct is required for optimal performance and airflow:contentReference[oaicite:5]{index=5}.
Q: Does this model include a backdraft damper?
A: Yes, it includes a built-in backdraft damper to prevent outside air intrusion:contentReference[oaicite:6]{index=6}.
Q: How is the grille mounted?
A: The grille is secured using spring-loaded torsion clips for easy, tool-free installation:contentReference[oaicite:7]{index=7}.
