Product Description
Panasonic FV-20VEC1 Intelli-Balance® 200 is an ultra-efficient Energy Recovery Ventilator (ERV) engineered for cold and temperate climates. With up to 200 CFM of balanced ventilation, this ERV delivers fresh, tempered air while exhausting stale air, enhancing indoor air quality and supporting whole-home ventilation compliance with ENERGY STAR®, ASHRAE 62.2, and Title 24 standards.
- Airflow Capacity: Adjustable 60–200 CFM
- Motor: Dual ECM Brushless Motors
- Static Pressure: 0.4 in. w.g.
- Power Consumption: 129W Max
- Voltage: 120V / 60 Hz
- Duct Size: 6" (x4 ports)
- ENERGY STAR®: Certified
Free shipping on orders over $250
Product Benefits
- Provides fresh, filtered air while maintaining home pressure balance
- Capillary core technology efficiently tempers incoming air and transfers moisture
- Meets or exceeds codes including ASHRAE 62.2, Title 24, LEED, Novoclimat, and ENERGY STAR®
- Includes occupant boost mode, filter maintenance alerts, and frost prevention
Key Features
- Adjustable Airflow: 8 settings from 60–200 CFM for supply and exhaust
- Boost Mode: Temporarily increases airflow to 200 CFM
- SmartFlow™ ECM Motors: Automatically adjusts to maintain target CFM
- Capillary Core Technology: Maximizes heat and moisture transfer efficiency
- Frost Prevention Mode: Activates defrost cycle in freezing conditions
- Built-In ASHRAE 62.2 Timer: Assures code-compliant operation
Specifications
Technical Specs
| Model | FV-20VEC1 |
| Mounting Options | Ceiling, Wall, or Floor |
| CFM Range | 60–200 CFM (adjustable) |
| Power | 120V / 60Hz |
| Max Power Consumption | 129W |
| Duct Size | 4 x 6" Round |

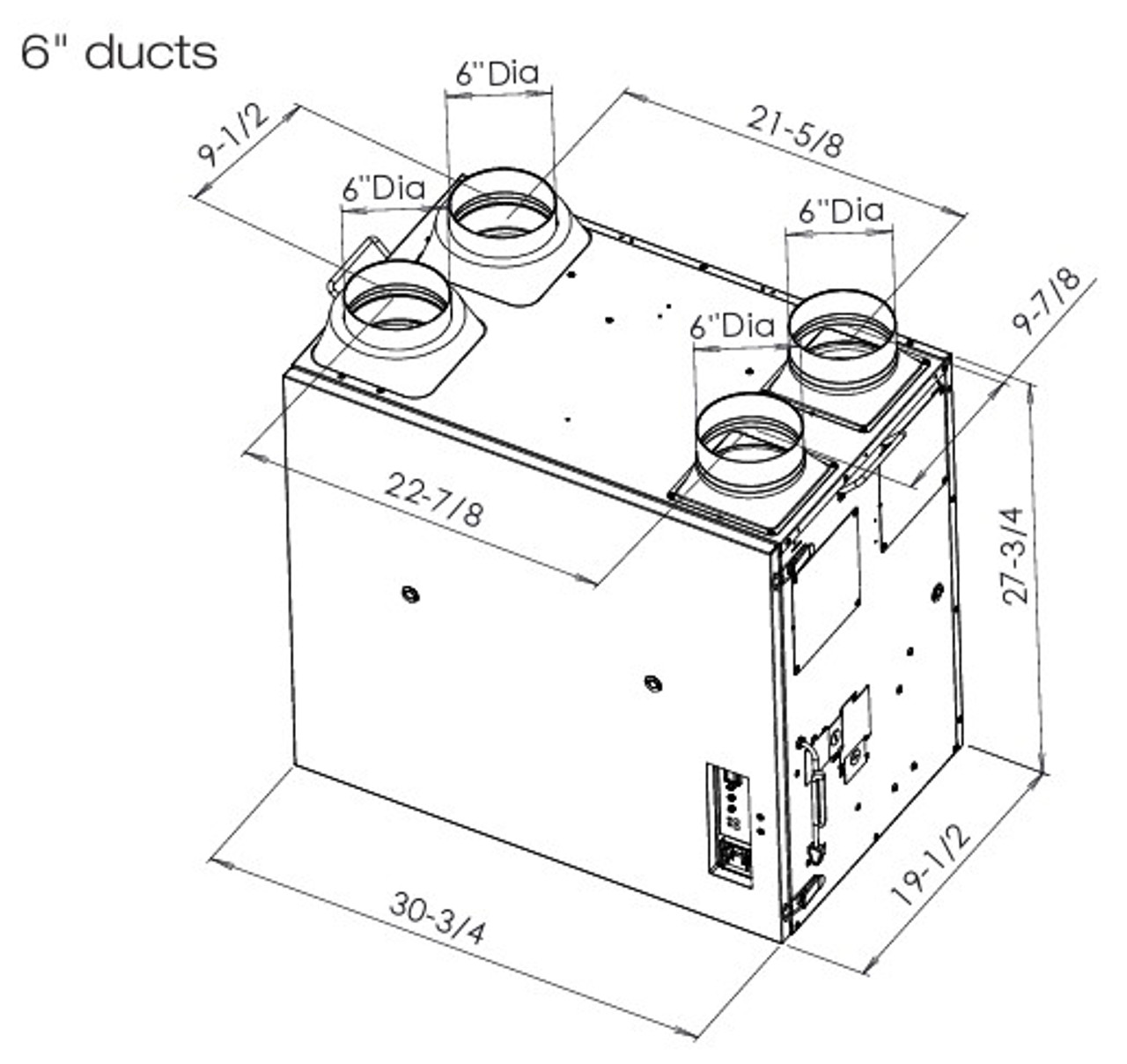

| Dimensions (L x W x H) | 30-3/4" x 21-5/8" x 9-1/2" |
Performance Ratings
| Condition | CFM | Watts | SRE | ASE | Moisture Transfer |
|---|---|---|---|---|---|
| Heating (32°F) | 67 | 22 | 83% | 86% | 81% |
| Heating (32°F) | 124 | 46 | 77% | 79% | 73% |
| Heating (-13°F) | 66 | 46 | 67% | 69% | 70% |
| Cooling (95°F) | 71 | 25 | TRE: 70% | ||
Filter Options
| Included | MERV 13 |
| Optional | MERV 8, HEPA |
Certifications
| ENERGY STAR® | Certified |
| ASHRAE 62.2 | Compliant |
| Title 24 / LEED / IAP / Novoclimat | Compatible |
| Warranty | 6 Years ECM Motor / 3 Years All Parts |
Application Examples
- Whole-home ventilation for energy-efficient homes
- Cold and temperate climate zones requiring balanced air exchange
- New construction or retrofit HVAC systems
- Ventilation code compliance projects (e.g., ASHRAE, Title 24)
Installation Tips
- Mount unit to ceiling, wall, or floor using supplied brackets and adaptors
- Use 6" insulated flexible duct for optimal airflow
- Balance supply/exhaust using onboard ports and differential pressure table
- Set boost timer via optional LCD wall control for high-demand conditions
Frequently Asked Questions
What is the airflow range of the FV-20VEC1?
It supports adjustable airflow settings from 60 to 200 CFM for both supply and exhaust.
Is it ENERGY STAR certified?
Yes, it meets ENERGY STAR requirements for efficiency and is certified for the Canadian market as well.
Can this unit be mounted on the wall or ceiling?
Yes, it is designed for flexible installation: ceiling, wall, or floor mount.
What controls are available for this unit?
It offers built-in speed selectors, boost mode, and compatibility with an optional LCD wall control panel for advanced settings.
Does it have frost protection?
Yes, it features a built-in Frost Prevention Mode that activates automatically below 14°F (-10°C).
Is the filter replaceable?
Yes. It includes a MERV 13 filter with optional upgrades to MERV 8 or HEPA. Filter maintenance reminders are built-in.
Can it help with code compliance?
Yes, it supports ASHRAE 62.2, Title 24, LEED, Novoclimat, and more.
What is the power consumption at full speed?
Maximum power draw is 129 watts at 200 CFM under 0.4" static pressure.
