Product Description

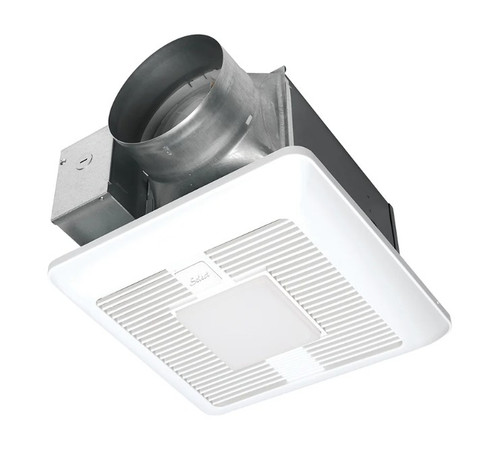

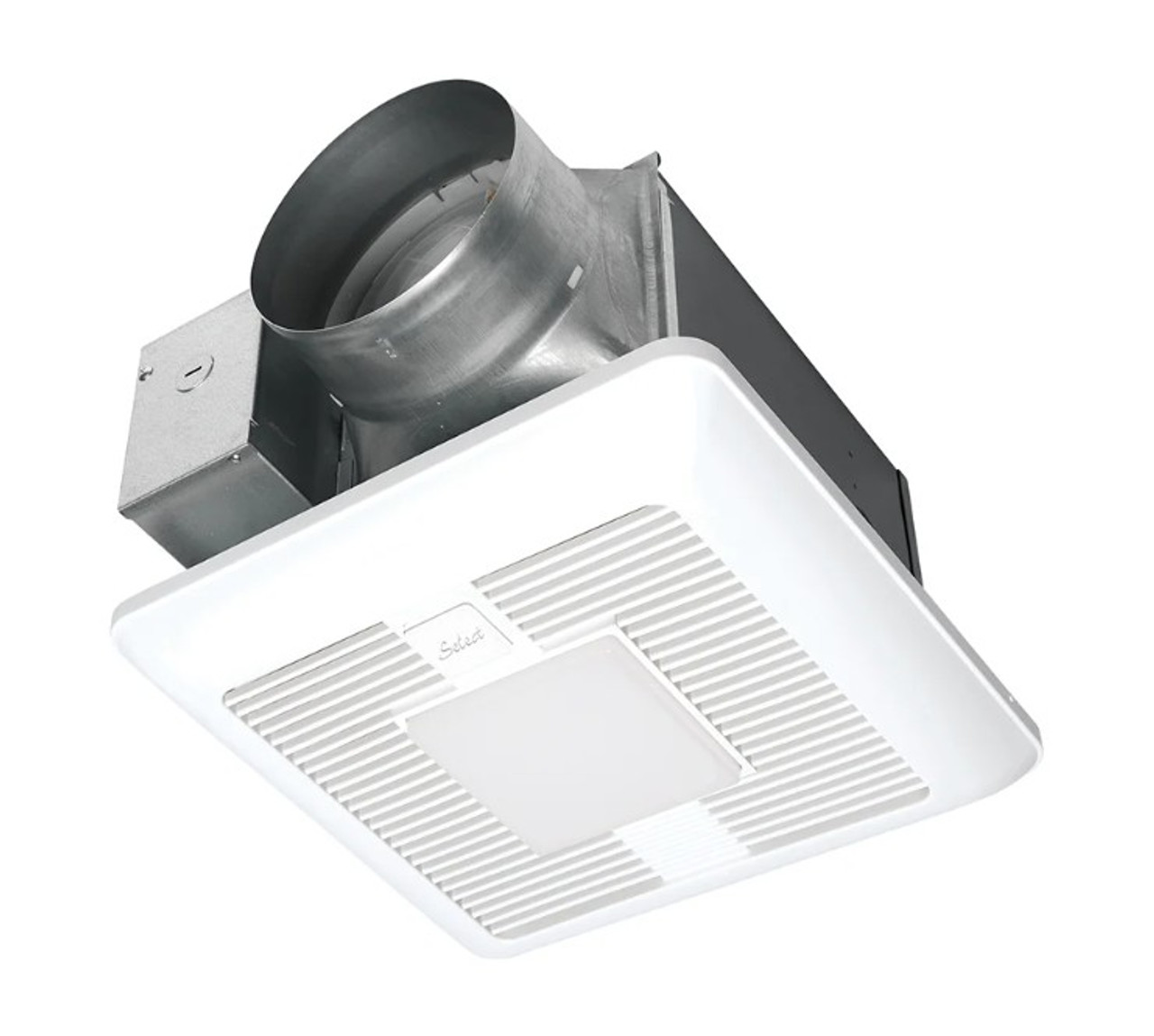

FV-1115VKL2 WhisperGreen® Select Fan/LED Light by Panasonic is a high-performance ventilation solution engineered for quiet operation and smart energy savings. Designed with a built-in ECM motor and Pick-A-Flow™ selector, this ENERGY STAR® certified fan allows users to set airflow to 110, 130, or 150 CFM. It includes a dimmable 10W LED panel and <1W night light, making it ideal for large residential bathrooms and code-compliant installations like Title 24 or LEED projects.
- Model: FV-1115VKL2
- Mount: Ceiling
- Airflow: 110 / 130 / 150 CFM
- Lighting: 10W LED, 3000K, 700 Lumens, 90+ CRI
- Night Light: <1W integrated LED
- Sound Level: <0.3 to 0.4 Sones
- Certifications: ENERGY STAR®, UL for Shower Use, HVI Certified
- Free shipping on orders over $250
Benefits
- Smart ventilation control with adjustable Pick-A-Flow™ airflow settings
- Extremely quiet performance as low as <0.3 sones
- Dual lighting solution with 10W LED and integrated night light
- Supports continuous and intermittent ventilation for healthy indoor air
Key Features
- Adjustable CFM: Select 110, 130, or 150 CFM with built-in switch
- Smart ECM motor: Increases RPM automatically to overcome static pressure
- Integrated LED: 10W dimmable panel, 3000K, 700 lumens, 50,000-hour life
- ENERGY STAR® 2.0 and JA-8 Compliant: Title 24 ready
- Plug 'N Play™ slots: Compatible with multi-speed, motion, and condensation sensors
Specifications
| Technical Specs | |
|---|---|
| Input Voltage | 120V / 60Hz |
| Airflow Settings | 110 / 130 / 150 CFM (Pick-A-Flow™) |
| Motor Type | Enclosed ECM Brushless, SmartFlow™ |

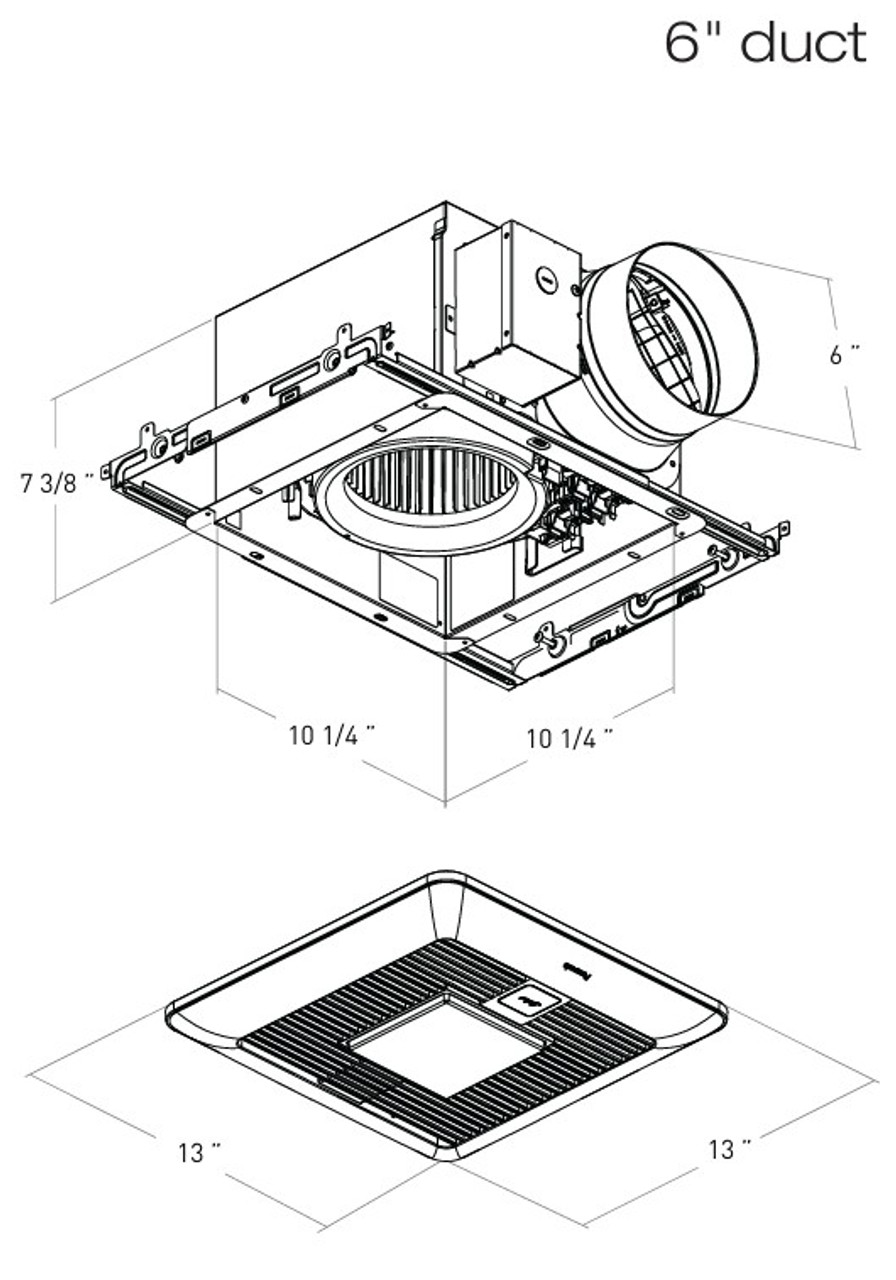

| Duct Size | 6” Round |
| Performance Specs | |
|---|---|
| Sound Level | <0.3 – 0.4 Sones |
| Efficiency | Up to 14.6 CFM/Watt |
| Power Consumption | 7.5 – 14.9 Watts at 0.1" w.g. |
| Motor Speed | 625 – 722 RPM |
| Compliance & Safety | |
|---|---|
| Certifications | ENERGY STAR®, UL & cUL Listed, HVI Certified |
| Warranty | 6-Year Motor / 5-Year LED / 3-Year Parts |
Application Examples
- Large residential bathrooms
- Utility and laundry rooms
- High humidity zones in multi-family housing
- Green building and Title 24 compliance projects
Installation Tips
- Set Pick-A-Flow™ switch to desired CFM before closing the ceiling
- Use Flex-Z Fast™ bracket for 16"–24" joist spacing
- Seal ductwork with mastic or foil tape to prevent air leakage
- Install only over tubs/showers with GFCI-protected circuit
- Plug 'N Play™ slots allow future sensor upgrades with no rewiring
Frequently Asked Questions
Q: What is the airflow range of the FV-1115VKL2?
A: This model offers 110, 130, or 150 CFM settings via the integrated Pick-A-Flow™ switch:contentReference[oaicite:0]{index=0}.
Q: Does this fan come with built-in lighting?
A: Yes, it includes a 10W dimmable LED panel (3000K, 700 lumens) and a <1W integrated night light:contentReference[oaicite:1]{index=1}.
Q: Can I install this unit over a shower or tub?
A: Yes, it is UL and cUL listed for use in tub/shower enclosures when connected to a GFCI circuit:contentReference[oaicite:2]{index=2}.
Q: Is the fan compatible with smart sensors?
A: Yes, it supports Plug 'N Play™ modules like the motion sensor (FV-MSVK1), condensation sensor (FV-CSVK1), and multi-speed controller (FV-VS15VK1):contentReference[oaicite:3]{index=3}.
Q: How energy efficient is this fan?
A: It delivers up to 14.6 CFM per watt at 0.1” static pressure and exceeds ENERGY STAR® 2.0 requirements:contentReference[oaicite:4]{index=4}.
Q: Is it suitable for use in high-performance homes?
A: Absolutely. It complies with ASHRAE 62.2, LEED, ENERGY STAR® IAP, California Title-24, and WA ventilation codes:contentReference[oaicite:5]{index=5}.
Q: What is the expected lifespan of the LED panel?
A: The LED panel is rated for 50,000 hours of continuous operation:contentReference[oaicite:6]{index=6}.
Q: Does the unit come with sensor modules included?
A: No, sensor modules are optional and sold separately, but the unit includes dedicated Plug 'N Play™ slots for easy integration:contentReference[oaicite:7]{index=7}.
