Product Description

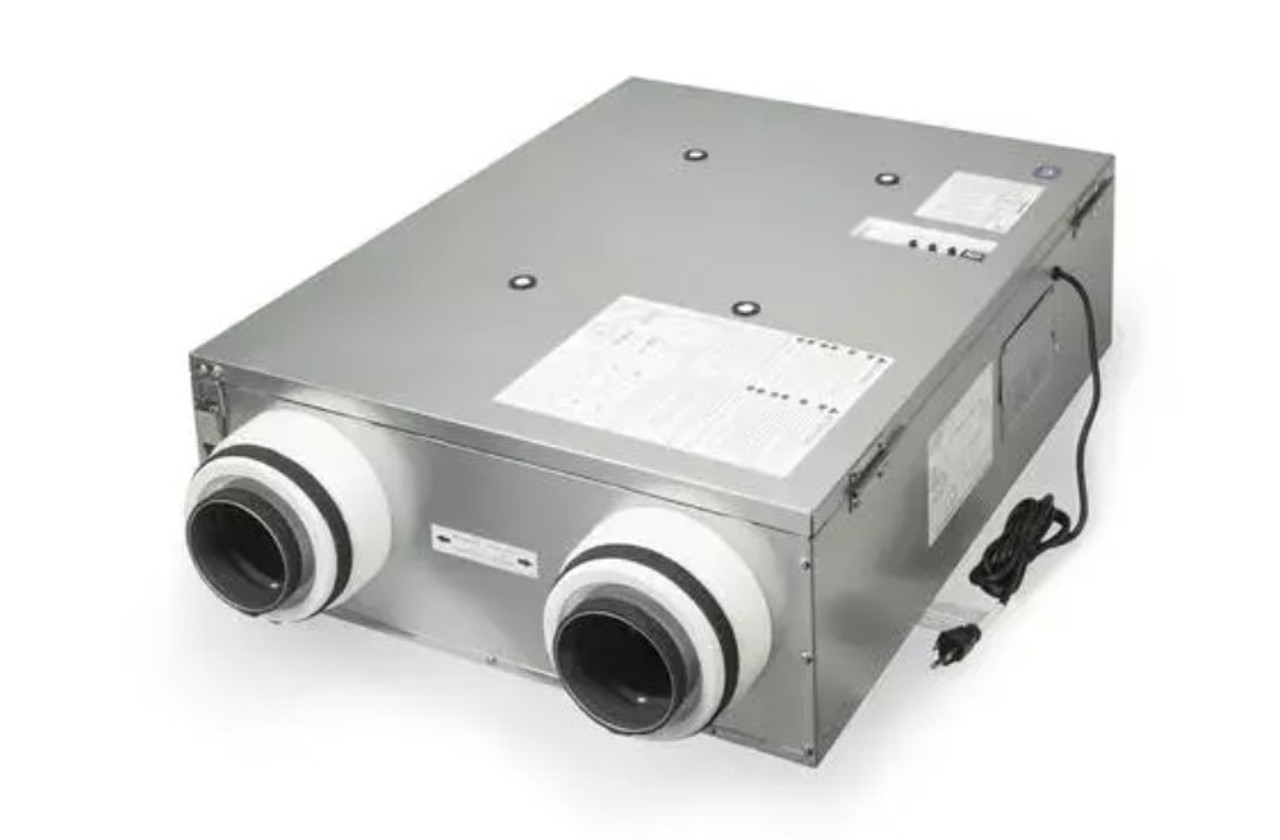

FV-10VEC2R Intelli-Balance® 100 is a ceiling or wall-mount Energy Recovery Ventilator (ERV) by Panasonic, designed for use in any climate. This advanced mirror-model ERV offers humidity control, balanced air exchange, and efficient energy recovery with ASHRAE 62.2 compliance. Featuring dual DC motors and multiple airflow settings, it ensures continuous, comfortable ventilation tailored to diverse residential environments.
Brand: Panasonic
Model: FV-10VEC2R
Type: Energy Recovery Ventilator (ERV)
Airflow Range: 50–100 CFM (adjustable)
Voltage: 120V / 60Hz
Installation: Ceiling or Wall Mount
Free shipping on orders over $250
Product Benefits
- Balances indoor air pressure while controlling humidity for healthier air quality
- Ideal for any climate with built-in frost prevention and automatic air volume adjustments
- Ensures ASHRAE 62.2 compliance for intermittent air changes in residential spaces
- Quiet, efficient ventilation—perfect for homes, apartments, and condos
Key Features
- Adjustable Airflow: Selectable 50–100 CFM for supply and exhaust
- DC Motor Technology: Dual enclosed brushless motors with thermal fuse
- Capillary Core Heat Exchange: Transfers both temperature and humidity
- Smart Controls: Built-in ASHRAE timer and occupant boost mode
- High-Efficiency Filters: Includes MERV 8; optional MERV 13 available
- Frost Prevention Mode: Automatically protects core in cold conditions
Specifications
Technical Specs
| Voltage | 120V |
| Frequency | 60Hz |
| Duct Size | 4" or 6" |
| Power Consumption | 81W @ 0.1" w.g., 100W @ 0.4" w.g. |
Physical Specs
| Mounting Options | Ceiling or Wall |
| Body Material | 22-gauge galvanized steel |
| Weight | Approx. 22.4 lbs |
Performance Specs
| Lumen Output | N/A |
| Color Temperature | N/A |
| Airflow | 100 CFM supply and exhaust @ 0.1" and 0.4" w.g. |
| Sensible Recovery Efficiency | Up to 83% @ 32°F |
| Total Recovery Efficiency | Up to 60% @ 95°F |
| ENERGY STAR® Certified | Yes (Canada only) |
Application Examples
- Whole-house residential ventilation
- Condos and apartments with limited air circulation
- Homes in cold or humid climates needing moisture and airflow balance
- Retrofits for improved indoor air quality and energy performance
Installation Tips
- Can be installed in walls, ceilings, or suspended with chain brackets
- Ensure 2–3 ft of straight duct run before elbows
- Maintain 10 ft separation between intake and exhaust hoods
- Balance airflow using integrated pressure ports and dampers
- Unit must be installed in a conditioned space above 50°F (10°C)
Frequently Asked Questions
Can the FV-10VEC2R be used in extremely cold climates?
Yes, this model includes built-in frost prevention and operates effectively in temperatures down to -22°F (-30°C).
How is airflow adjusted in the FV-10VEC2R?
Airflow can be adjusted manually between 50 and 100 CFM for both supply and exhaust using the built-in control panel.
Does this ERV meet ASHRAE 62.2 standards?
Yes, it includes a built-in ASHRAE 62.2 timing function for code compliance with intermittent ventilation strategies.
Is the FV-10VEC2R filter washable?
The MERV 8 filter is replaceable, not washable. Routine replacement is recommended every 6 months.
What kind of maintenance is required?
Filters should be inspected and replaced every 2–3 months. An alarm will notify when maintenance is due.
How is the ERV controlled?
Via onboard dials, wall switch, and optional occupant-boost switch for Hi/Lo operation.
Can I install this in a bathroom or laundry room?
No, high-humidity spaces like bathrooms and laundry rooms are not suitable installation locations.
What is the maximum power consumption?
Power usage tops out at 100 watts under 0.4" w.g. static pressure.
Is it ENERGY STAR certified?
Yes, for the Canadian market only. It meets Natural Resources Canada guidelines.
Can the ERV integrate with HVAC systems?
Yes, it can be installed with HVAC/AHU signal wiring for coordinated control.
