Product Description
The FV-10VE1 Intelli-Balance 100 Energy Recovery Ventilator is a high-performance ERV designed for temperate climates. Engineered to provide a balanced air supply and exhaust, it efficiently controls humidity and maintains indoor air quality while optimizing energy recovery. Ideal for homes up to 3,000 sq. ft. and compliant with ASHRAE 62.2 standards, this unit is a perfect fit for modern energy-efficient homes.
Key Features
- Customizable Airflow: Adjustable supply and exhaust rates from 50 to 100 CFM for tailored ventilation.
- Energy Recovery Technology: Capillary core technology recovers heat and moisture, optimizing energy efficiency.
- Dual DC Motors: Enclosed brushless motors ensure quiet, continuous operation.
- Frost Prevention Mode: Automatically prevents core freezing during low temperatures.
- Integrated Filters: Includes MERV 8 filters with optional MERV 13 upgrades for enhanced air quality.
- Flexible Installation: Suitable for ceiling or wall mounting with pre-drilled brackets for various configurations.
- Energy Efficient: Operates at 62-80 watts with up to 90% sensible heat recovery efficiency.
- Compliance: Meets ASHRAE 62.2, LEED, California Title 24, and other standards.
Specifications
- Airflow: 50-100 CFM (adjustable)
- Static Pressure: Tested at 0.1" and 0.4" w.g.
- Power Consumption: 62 watts at 0.1" w.g., 80 watts at 0.4" w.g.
- Sensible Heat Recovery Efficiency: Up to 90% at 32°F (0°C)

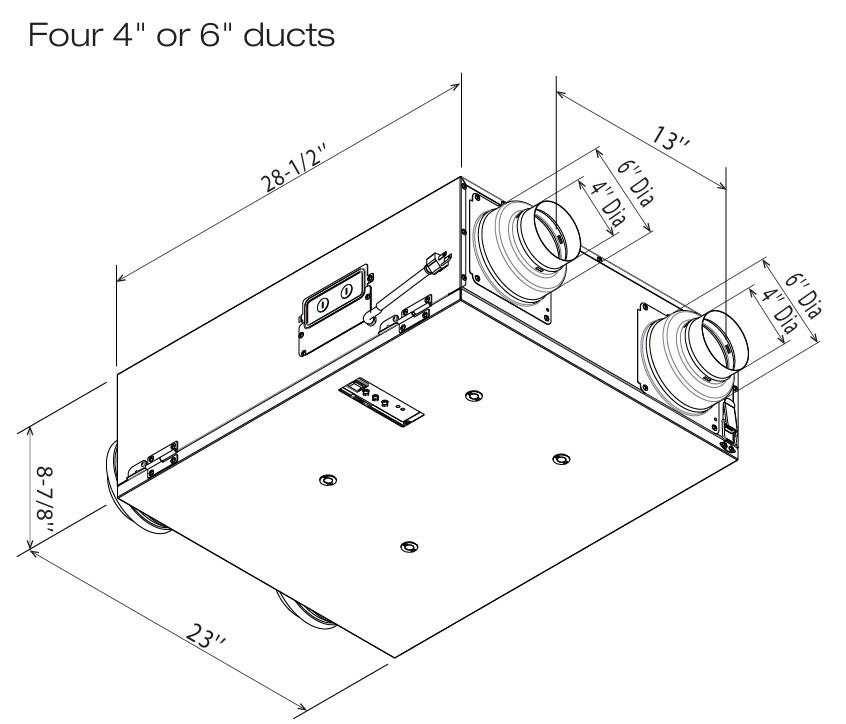

- Duct Size: 4" or 6" intake and exhaust ducts
- Core Technology: Capillary core for heat and moisture exchange
- Warranty: 6 years for DC motors, 3 years for all parts
Installation Tips
- Ensure proper placement on a ceiling or wall using pre-drilled brackets.
- Connect to 4" or 6" ducts for intake and exhaust airflow.
- Regularly inspect and replace filters with MERV 8 or optional MERV 13 filters.
- Test airflow using the built-in pressure ports for optimal performance.
- Follow the manual to adjust supply and exhaust settings to meet specific ventilation requirements.
Frequently Asked Questions
Q: What size homes is this ERV suitable for?
A: The FV-10VE1 is ideal for homes up to 3,000 sq. ft. or up to 7 bedrooms.
Q: Can the airflow be customized?
A: Yes, the supply and exhaust rates are adjustable between 50 and 100 CFM.
Q: Does this ERV operate efficiently in cold climates?
A: Yes, the Frost Prevention Mode ensures reliable operation even in low temperatures.
Q: What type of filters does it use?
A: The ERV comes with MERV 8 filters, and MERV 13 upgrades are available.
Q: Is the FV-10VE1 ENERGY STAR® certified?
A: Yes, it meets ENERGY STAR® requirements and other energy efficiency standards.
Q: What is the warranty on this unit?
A: It includes a 6-year warranty on DC motors and a 3-year warranty on all parts.
