Product Description
FV-0810VSS1 WhisperValue® DC Fan by Panasonic delivers ultra-quiet, ENERGY STAR® certified ventilation with advanced ECM motor technology. Designed for both ceiling and wall mounting, this low-profile fan features Pick-A-Flow™ speed selection (80 or 100 CFM), SmartFlow™ automatic adjustment, and is ideal for continuous and spot ventilation in compliance with ASHRAE 62.2 standards.
- Airflow: 80 or 100 CFM (manual selector)
- Noise Level: as low as 0.4 sones
- Motor: ECM brushless, continuous run
- Mounting: Ceiling or wall
- Duct: 4" oval (adapters available)
- Voltage: 120V / 60Hz
- ENERGY STAR®: Certified
- Free shipping on orders over $250
Product Benefits
- Supports ASHRAE 62.2 continuous and spot ventilation with customizable airflow
- Ultra-low noise operation ensures quiet comfort in bathrooms, laundry rooms, or offices
- SmartFlow™ technology adjusts motor speed based on static pressure
- ENERGY STAR® certified for efficiency and sustainable building compliance
Key Features
- Pick-A-Flow™ Switch allows manual selection of 80 or 100 CFM
- ECM Motor with SmartFlow™ for static pressure compensation
- Low profile housing fits in 2x4 construction for tight-space installations
- UL Listed for tub/shower enclosures with GFCI protection
- Polypropylene grille with torsion spring mount for easy access
Technical Specifications
| Technical Specs | |
|---|---|
| Voltage | 120V / 60Hz |
| Airflow Settings | 80 or 100 CFM (Selectable) |
| Noise Rating | 0.4–0.9 sones |
| Power Consumption | 8.5W – 13.4W |
| Duct Diameter | 4" oval (adapter to 3" round sold separately) |
| Physical Specs | |
|---|---|
| Housing Material | 26-gauge galvanized steel |
| Grille Material | Polypropylene |
| Mounting Options | Ceiling or wall (joist or stud) |

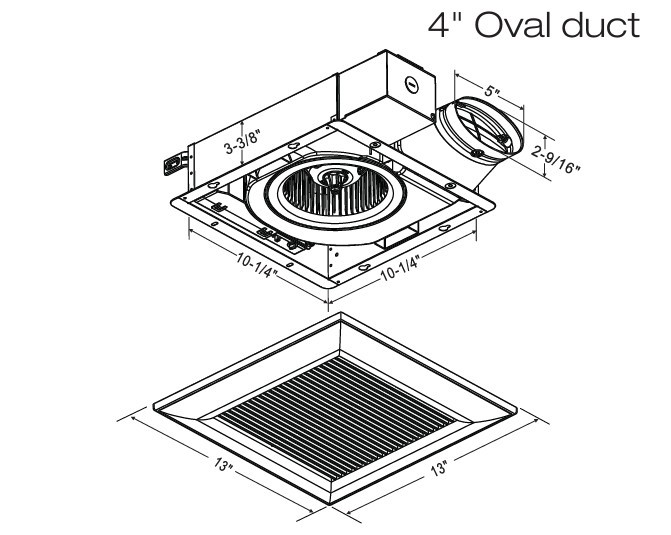

| Dimensions | 10.25” x 10.25” x 3.375” |
| Weight | 3.2 lbs |
| Performance Specs | |
|---|---|
| Air Volume | Up to 100 CFM |
| Noise (Sones) | As low as 0.4 sones |
| Energy Efficiency | Up to 10.0 CFM/W |
| Motor Speed (RPM) | Up to 1197 RPM |
| Compliance & Safety | |
|---|---|
| Certifications | UL, cUL, HVI, ENERGY STAR® |
| GFCI Rated | Yes (tub/shower with GFCI protection) |
| Ceiling Radiation Damper | Compatible (PC-RD05C5) |
Application Examples
- Residential bathrooms and powder rooms
- Multifamily dwellings requiring ASHRAE 62.2 compliance
- Laundry rooms, utility closets, or retrofit installations
- Wall or ceiling mountable for layout flexibility
Installation Tips
- Pre-set CFM at 80 or 100 using internal Pick-A-Flow™ switch
- Use wall switch to activate boost mode for spot ventilation
- Mount with included L-bracket to joist or stud—no additional framing required
- Install with 4" oval duct or use adapter (FV-VS43R) for 3" round
- Seal ductwork and insulate for best airflow and energy efficiency
Frequently Asked Questions
Can the FV-0810VSS1 be installed in a wall?
Yes, it is UL and cUL rated for both ceiling and wall mount installations using the included brackets and oval duct outlet.
What airflow rates does this fan support?
It supports either 80 or 100 CFM airflow rates, which can be selected manually via the Pick-A-Flow™ switch inside the housing.
Is this fan suitable for continuous operation?
Yes, it’s designed for 24/7 continuous operation, especially when set to a lower CFM level using the CustomVent module.
Can I use this fan in a bathroom or shower area?
Yes, it is UL listed for use in tub/shower enclosures when connected to a GFCI-protected circuit.
Does this fan require special wiring or speed controls?
No special controller is needed. Standard wall switches operate the fan, and the internal speed is set manually during installation.
What kind of motor does it use?
It uses an enclosed ECM (electronically commutated motor) that adjusts speed automatically based on static pressure conditions.
Is this fan ENERGY STAR® rated?
Yes, the FV-0810VSS1 is ENERGY STAR® certified and highly efficient with a CFM/W rating of up to 10.0.
What size duct should I use?
The fan is designed for 4" oval duct, but can be adapted to 3" round using the FV-VS43R adapter (sold separately).
What’s the warranty on this unit?
Panasonic offers a 6-year warranty on the ECM motor and a 3-year warranty on all other parts.
