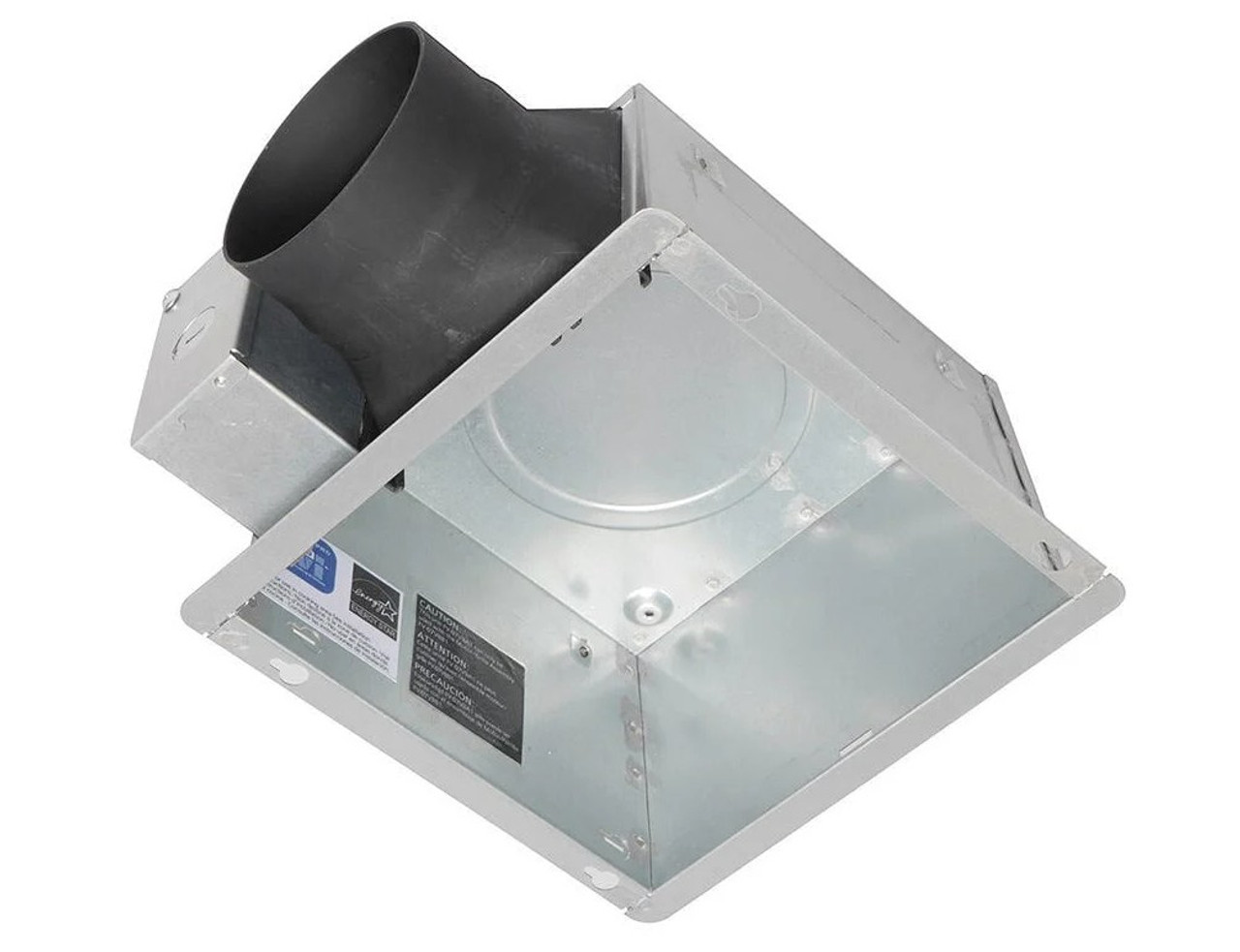

Product Description
FV-07VBA1A EcoVent® Universal Housing Can by Panasonic is part of the contractor-friendly EcoVent system, offering efficient and flexible installation for residential ventilation projects. This galvanized steel housing includes a pre-mounted duct adapter and junction box, and is engineered for use with the FV-07VBB1 motor/grille assembly (sold separately) to create a complete Pick-A-Flow® ventilation fan with selectable 70 or 90 CFM.
- Type: Contractor Pack – Universal Housing Can Only
- Compatible With: FV-07VBB1 Motor/Grille Assembly
- Construction: Galvanized steel body with flange
- Duct Size: 4" round with built-in backdraft damper
- Mounting: Direct-to-joist screw installation
- Free shipping on orders over $250
Product Benefits
- Modular design allows staged installation and easy handling on job sites
- Integrated junction box and duct adapter reduce labor during rough-in
- Works with FV-07VBB1 to deliver adjustable 70/90 CFM airflow
- Supports ASHRAE 62.2, ENERGY STAR®, and Title 24 requirements when completed
Key Features
- Galvanized steel housing is fire-rated and durable
- 4" round duct connection with backdraft damper
- Integrated metal flange provides air sealing and drywall blocking
- Mounts with just four screws to joist or framing
- Low-profile 4-3/4” depth fits tight ceiling cavities
Technical Specifications
| Housing Specs | |
|---|---|
| Model Number | FV-07VBA1A |
| Duct Diameter | 4" Round |
| Housing Depth | 4-3/4" |
| Material | 26-gauge galvanized steel |
| Includes | Housing, duct adapter, junction box |
Compliance & Safety
| Certifications (when paired) | UL, cUL, HVI, ENERGY STAR® |
| Shower Use | Yes, when paired and installed with GFCI circuit |
| Compatible Motor | FV-07VBB1 (sold separately) |
Application Examples
- New construction and multi-family housing ventilation systems
- Projects requiring staged or bulk-pack component storage
- Rough-in phase of bathroom or laundry room fan installs
Installation Tips
- Mount housing between ceiling joists using 4 screws at top and side panels
- Connect 4” round duct to adapter; ensure backdraft damper is unobstructed
- Seal housing to drywall for optimal air barrier performance
- Complete installation later with FV-07VBB1 motor/grille assembly
Frequently Asked Questions
What does the FV-07VBA1A include?
It includes only the galvanized steel housing, duct adapter, and junction box. The fan motor and grille are sold separately as FV-07VBB1:contentReference[oaicite:0]{index=0}.
Can this be used as a complete fan?
Not by itself. It must be combined with the FV-07VBB1 motor/grille assembly to function as a complete EcoVent fan:contentReference[oaicite:1]{index=1}.
What airflow does this fan support when assembled?
When completed with FV-07VBB1, the fan offers Pick-A-Flow® performance at 70 or 90 CFM:contentReference[oaicite:2]{index=2}.
Is it ENERGY STAR® rated?
Yes, the full fan assembly meets ENERGY STAR® requirements when fully built using this housing and the matching motor:contentReference[oaicite:3]{index=3}.
Is this housing suitable for wet areas?
Yes, when combined with the proper fan motor and installed on a GFCI circuit, it is rated for tub/shower use:contentReference[oaicite:4]{index=4}.
What is the advantage of the contractor pack?
The FV-07VBA1A comes in contractor packs of 4, ideal for staged installation and minimizing damage or loss of parts on-site:contentReference[oaicite:5]{index=5}.
