Product Description

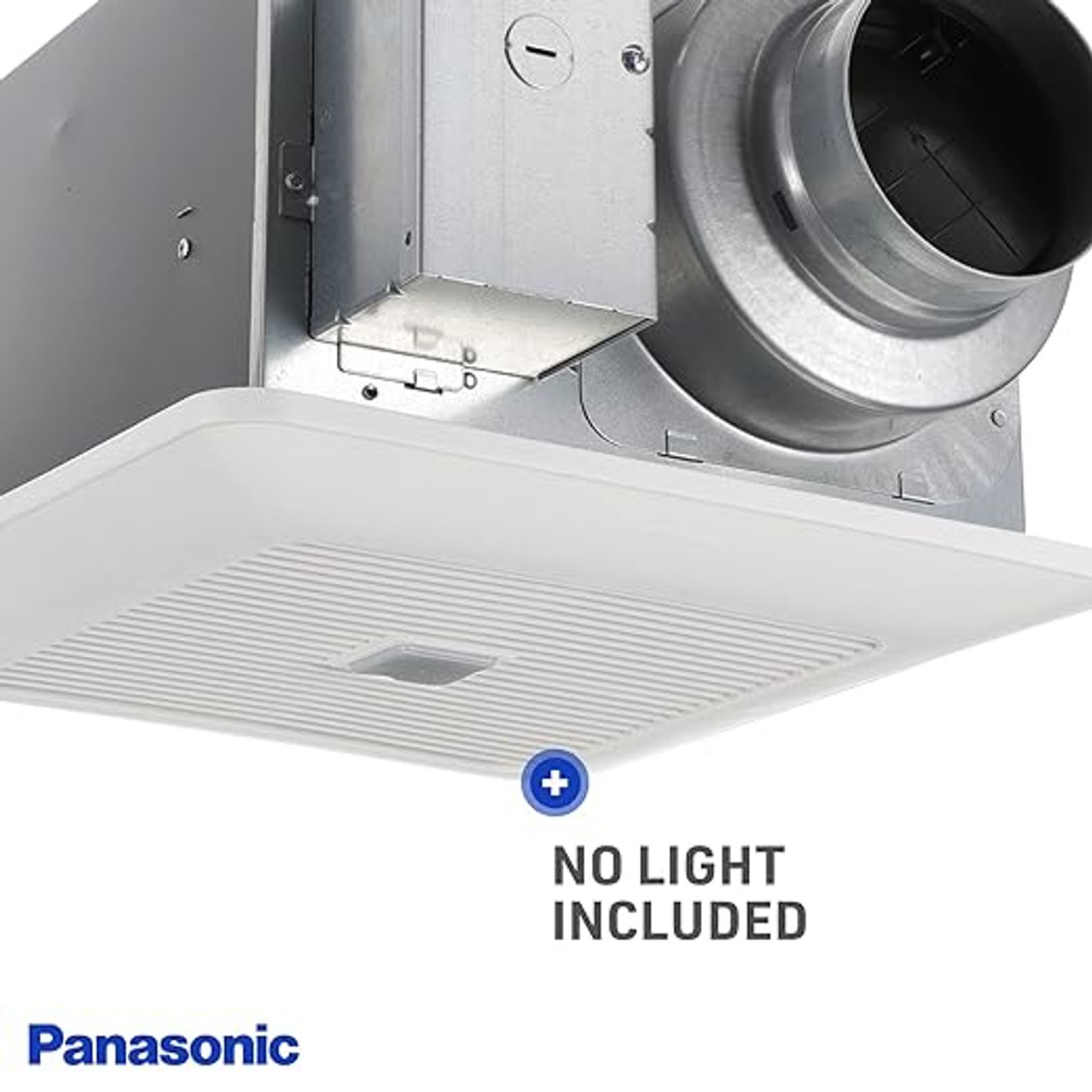

The Panasonic WhisperSense® DC FV-0511VQC1 Ventilation Fan delivers advanced performance and convenience, making it an excellent choice for bathrooms, laundry rooms, mudrooms, basements, or garages. This fan features a revolutionary ECM motor with SmartFlow™ technology to ensure optimum CFM output and dual-sensor technology for superior moisture and odor control.
Key Features
- Pick-A-Flow™ Speed Selector: Allows airflow selection of 50, 80, or 110 CFM with a simple switch, ensuring code compliance and minimizing callbacks.
- Dual-Sensor Technology: Combines motion and humidity sensors for automatic moisture and odor management.
- SmartFlow™ Technology: Automatically adjusts fan speed to maintain ideal airflow even in complex duct layouts.
- Flex-Z Fast™ Bracket: Enables quick and easy installation, even from below the ceiling.
- Energy-Efficient LED Lighting: Includes a dimmable 10W LED panel with an additional <1W LED night light for soft illumination.
- Durable and Quiet Operation: Ultra-quiet performance with a noise level as low as <0.3 sones and robust construction for long-lasting reliability.
Specifications
- Airflow Options: 50, 80, or 110 CFM
- Noise Level: <0.3 sones
- Motor: DC motor with thermal fuse protection
- Duct Diameter: 4" or 6"
- Lighting: 10W dimmable LED, 3000K, 90 CRI, 700 lumens, ENERGY STAR® certified
- Certifications: ASHRAE 62.2, LEED, ENERGY STAR® IAP, CALGreen, Title 24 compliant
- Warranty: 6 years (ECM Motor), 5 years (LED), 3 years (all other parts)
Installation Tips
- Use the Flex-Z Fast™ Bracket for quick and hassle-free mounting.
- Ensure the fan is GFCI-protected if installed in a tub or shower enclosure.
- Adjust the Pick-A-Flow™ Speed Selector to the desired airflow before finalizing the installation.
- Connect the separate wiring for the night light if using the LED feature.
- Test the motion and humidity sensors for optimal functionality post-installation.
Frequently Asked Questions
Q: Can this fan be used in wet locations?
A: Yes, it is UL listed for tub/shower enclosures when GFCI protected.
Q: What makes this fan energy-efficient?
A: The ECM motor, SmartFlow™ technology, and ENERGY STAR®-rated LED lighting combine to reduce energy consumption.
Q: How does the dual-sensor technology work?
A: The motion sensor activates the fan upon detecting movement, while the humidity sensor adjusts based on relative humidity levels, ranging from 30% to 80%.
Q: Can I adjust the delay timer?
A: Yes, the delay timer can be set between 30 seconds and 60 minutes for tailored operation.
Q: What accessories are available?
A: Accessories include a ceiling radiation damper (model #PC-RD05C5) and a variety of compatible grilles and duct adapters.
Conclusion
The Panasonic WhisperSense® DC FV-0511VQC1 is the ideal solution for efficient and reliable ventilation, combining advanced technology, energy efficiency, and a sleek design. Whether for residential or commercial use, this fan ensures optimal indoor air quality with minimal effort.
