Product Description
The Panasonic WhisperCeiling® DC SmartFlow™ Ventilation Fan is an innovative fan-only model designed for optimal air circulation in bathrooms, laundry rooms, and other residential or commercial spaces. Featuring revolutionary ECM motor technology with SmartFlow™, it ensures consistent performance even in high static pressure environments.
Key Features
- Precision Spot Ventilation: Ideal for use in bathrooms, laundry rooms, and other spaces requiring targeted ventilation.
- SmartFlow™ Technology: Automatically adjusts fan speed for optimal performance based on static pressure.

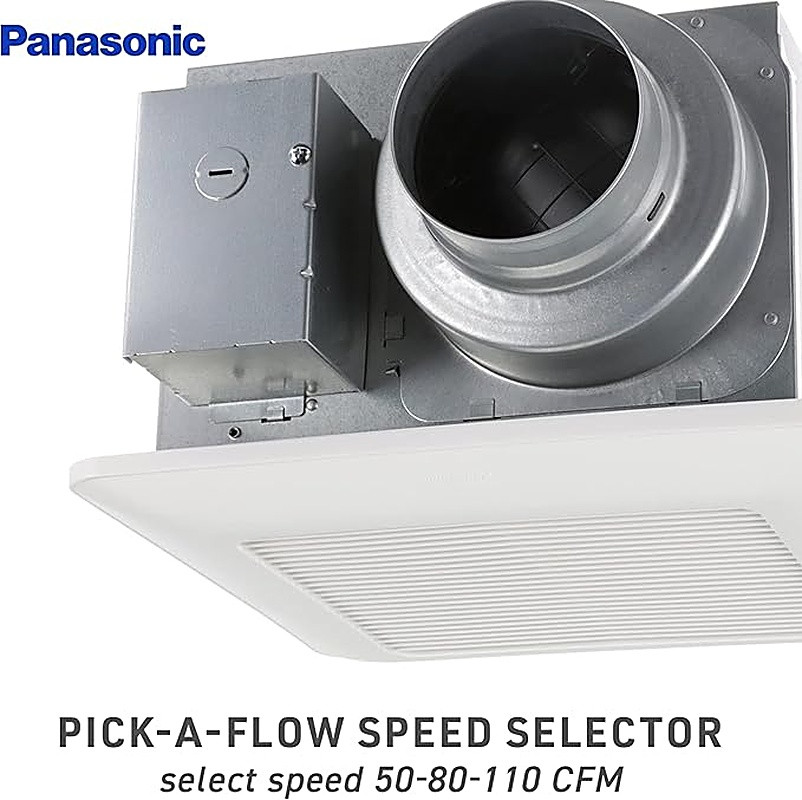

- Pick-A-Flow™ Speed Selector: Offers customizable airflow options (50-80-110 CFM).
- Quiet Operation: Runs at <0.3 sones, providing ultra-quiet performance.
- Energy Efficiency: Equipped with a DC motor that is up to 70% more efficient than AC motors.
- Durable and Versatile: Integrated 4" or 6" duct adapter and Flex-Z Fast™ bracket for flexible, easy installation.
Specifications
- Airflow: 50/80/110 CFM selectable
- Noise Level: <0.3 sones
- Wattage: 10.8W max
- Motor Type: ECM with ball bearing
- Compliance: ENERGY STAR® certified, UL Listed for tub/shower enclosure when GFCI-protected, and meets California Title 24 standards
- Voltage: 120V/60Hz
- Dimensions: 13" grille size; installation opening 10.5"
Installation Tips
- Ensure the Flex-Z Fast™ bracket is securely mounted between ceiling joists for stability.
- Position the fan body and ducting carefully to avoid air leaks; seal all connections with mastic or foil tape.
- Adjust the Pick-A-Flow™ switch to select the desired airflow setting before completing installation.
- Test the fan post-installation to ensure optimal functionality.
Frequently Asked Questions
Q: Is this fan suitable for continuous operation?
A: Yes, the DC motor is designed for continuous operation and energy efficiency.
Q: Can this fan be used in wet locations?
A: Yes, it is UL Listed for use in tub/shower enclosures when connected to a GFCI-protected circuit.
Q: Does this model include a lighting option?
A: This specific model does not include lighting; fan/light models are available separately.
Q: What duct sizes are compatible?
A: The fan supports both 4" and 6" duct diameters for flexible installation options.
Q: How can I ensure optimal performance?
A: Use the shortest and straightest duct routing possible, and seal all connections to minimize static pressure losses.
