Product Description

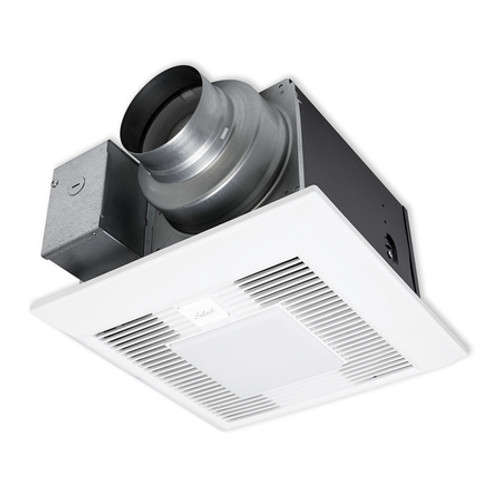

The FV-0511VKSL2 WhisperGreen® Select Fan/LED Light by Panasonic is a versatile and energy-efficient ventilation solution, ideal for maintaining optimal indoor air quality in bathrooms, laundry rooms, sunrooms, basements, or garages. Featuring an ECM motor with SmartFlow™ technology and a Pick-A-Flow™ airflow selector, it allows you to choose between 50, 80, or 110 CFM to suit your specific needs.
Key Features:
- Pick-A-Flow™ Airflow Selector: Choose between 50, 80, or 110 CFM to customize ventilation performance for your space.
- ECM Motor with SmartFlow™ Technology: Ensures consistent airflow by automatically adjusting the fan speed to maintain the selected CFM, even under varying duct conditions.
- Integrated LED Lighting: Equipped with a 10W dimmable LED chip panel (3000K, 90 CRI) and a <1W LED night light, providing energy-efficient illumination.
- Ultra-Quiet Operation: Operates at noise levels as low as <0.3 sones, ensuring a peaceful environment.
- Energy Efficiency: ENERGY STAR® certified, meeting stringent energy efficiency standards to reduce power consumption and lower utility bills.
- Flex-Z Fast™ Installation Bracket: Improved single-hinge bracket allows for fast and flexible installation, even in tight spaces.
- Durable Construction: Features a 26-gauge Zinc-Aluminum-Magnesium (ZAM) housing for enhanced durability and corrosion resistance.
Specifications:
- Airflow Options: 50, 80, or 110 CFM
- Noise Level: <0.3 sones at 50 CFM; 0.4 sones at 80 CFM; 0.8 sones at 110 CFM
- Power Consumption: 2.5W (50 CFM), 5.3W (80 CFM), 10.5W (110 CFM)
- Energy Efficiency: 15.7 CFM/W (50 CFM), 15.3 CFM/W (80 CFM), 10.5 CFM/W (110 CFM)
- Lighting: 10W dimmable LED chip panel (3000K, 90 CRI) with <1W LED night light
- Duct Compatibility: 4-inch and 6-inch diameters
- Dimensions: Housing: 10-1/4" x 10-1/4" x 7-3/8"; Grille: 13" x 13"
- Compliance: Meets ASHRAE 62.2, LEED, California Title 24, and CALGreen standards
- Warranty: 6 years on ECM motor, 5 years on LED light unit, 3 years on all other parts
Installation Tips:
- Utilize the Flex-Z Fast™ installation bracket for quick and flexible mounting between joists, even in tight spaces.
- Ensure proper duct sizing by using a 4-inch or 6-inch duct to optimize airflow efficiency.
- Follow the detailed installation instructions provided in the manual to ensure compliance with local building codes.
- Consider adding optional Plug 'N Play™ modules, such as the SmartAction® Motion Sensor or Condensation Sensor, to enhance functionality based on your specific needs.
Frequently Asked Questions:
Q: What is the benefit of the Pick-A-Flow™ feature?
A: The Pick-A-Flow™ feature allows you to select the desired airflow (50, 80, or 110 CFM) to match the specific ventilation requirements of your space, providing flexibility and ensuring optimal performance.
Q: How does the SmartFlow™ technology work?
A: SmartFlow™ technology automatically adjusts the fan speed to maintain the selected CFM, compensating for any changes in static pressure within the duct system to ensure consistent ventilation performance.
Q: Can this fan be installed in a bathroom?
A: Yes, the FV-0511VKSL2 is suitable for bathroom installations and is UL listed for tub/shower enclosures when GFCI protected.
Q: Is this fan energy efficient?
A: Yes, it is ENERGY STAR® certified, ensuring it meets strict energy efficiency guidelines for reduced power consumption and cost savings.
Q: What is the warranty on this fan?
A: The fan comes with a 6-year warranty on the ECM motor, a 5-year warranty on the LED light unit, and a 3-year warranty on all other parts.
