Product Description
The FV-0511VKS2 WhisperGreen® Select Fan by Panasonic is a customizable, energy-efficient ventilation solution featuring an ECM motor and Pick-A-Flow technology, allowing you to select airflow levels of 50, 80, or 110 CFM. This fan comes with a pre-installed multi-speed module, making it ideal for maintaining optimal indoor air quality in various residential settings.
Key Features:
- Pick-A-Flow Airflow Selector: Choose between 50, 80, or 110 CFM to meet your specific ventilation requirements.
- ECM Motor with SmartFlow™ Technology: Ensures consistent performance by adjusting fan speed to maintain the selected CFM, even under varying duct conditions.
- Pre-Installed Multi-Speed Module: Allows for continuous operation at a preset lower speed (0, 30-100 CFM) with a high/low delay timer, enhancing energy efficiency and compliance with ASHRAE 62.2 standards.
- Quiet Operation: Operates at less than 0.3 sones for ultra-quiet performance, ensuring minimal noise disruption.
- Energy Efficiency: ENERGY STAR® certified, ensuring low power consumption and cost savings.
- Flex-Z Fast™ Installation Bracket: Improved single-hinge bracket allows for flexible, fast, and easy installation in both new and retrofit applications.
- Elegant Grille Design: Complements the aesthetics of any room with its modern appearance.
Specifications:
- Airflow: Selectable 50, 80, or 110 CFM
- Noise Level: Less than 0.3 sones at 0.1" static pressure
- Power Consumption: 3.1W (50 CFM), 5.1W (80 CFM), 9.9W (110 CFM)
- Energy Efficiency: 16.2 CFM/W (50 CFM), 15.7 CFM/W (80 CFM), 11.1 CFM/W (110 CFM)

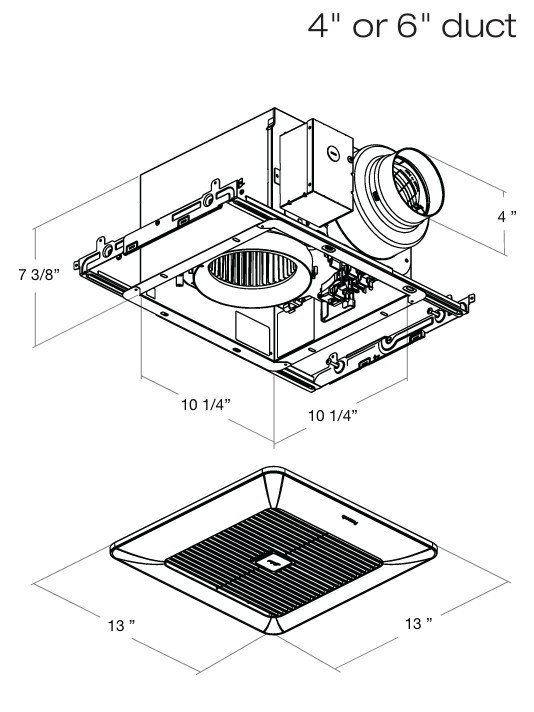

- Dimensions: Housing: 10-1/4" x 10-1/4" x 7-3/8"; Grille: 13" x 13"
- Duct Compatibility: Includes dual 4-inch and 6-inch duct adapters
- Compliance: Meets ASHRAE 62.2, LEED, California Title 24, and CALGreen standards
- Warranty: 6 years on ECM motor, 3 years on all other parts
Installation Tips:
- Utilize the Flex-Z Fast™ installation bracket for quick and flexible mounting between joists.
- Ensure proper duct sizing by using the included 4-inch or 6-inch duct adapters to optimize airflow efficiency.
- Follow the detailed installation instructions provided in the manual to ensure compliance with local building codes.
- Consider adding optional Plug 'N Play™ modules, such as the SmartAction® Motion Sensor or Condensation Sensor, to enhance functionality based on your specific needs.
Frequently Asked Questions:
Q: What is the benefit of the Pick-A-Flow feature?
A: The Pick-A-Flow feature allows you to select the desired airflow (50, 80, or 110 CFM) to match the specific ventilation requirements of your space, providing flexibility and ensuring optimal performance.
Q: How does the SmartFlow™ technology work?
A: SmartFlow™ technology automatically adjusts the fan speed to maintain the selected CFM, compensating for any changes in static pressure within the duct system to ensure consistent ventilation performance.
Q: What is the purpose of the pre-installed multi-speed module?
A: The pre-installed multi-speed module allows the fan to run continuously at a preset lower speed (0, 30-100 CFM) with a high/low delay timer, enhancing energy efficiency and ensuring compliance with ventilation standards like ASHRAE 62.2.
Q: Can this fan be installed in a bathroom?
A: Yes, the FV-0511VKS2 is suitable for bathroom installations and is UL listed for tub/shower enclosure when GFCI protected.
Q: Is this fan energy efficient?
A: Yes, it is ENERGY STAR® certified, ensuring it meets strict energy efficiency guidelines for reduced power consumption and cost savings.
Q: What is the warranty on this fan?
A: The fan comes with a 6-year warranty on the ECM motor and a 3-year warranty on all other parts.
