Product Description
FV-0511VHL1 WhisperWarm® DC by Panasonic is a premium ceiling-mounted fan, heater, and light combination that delivers quiet, effective ventilation along with energy-efficient heating and LED lighting. Designed with a variable CFM selector, powerful 1600W PTC heater, and warm white dimmable LED panel, this all-in-one unit is ideal for bathrooms where comfort and performance are a priority.
Model: FV-0511VHL1
Brand: Panasonic
Airflow Options: 50 / 80 / 110 CFM (Selectable)
Heater: 1600W Positive Temperature Coefficient (PTC)
Lighting: 10W Dimmable LED Panel + <1W Night Light
Noise Levels: <0.3 / <0.3 / 0.7 sones at 0.1" SP
Free shipping on orders over $250
Product Benefits
- All-in-one solution for ventilation, heating, and lighting in residential bathrooms
- Pick-A-Flow™ speed selector gives precise airflow control for optimal comfort
- LED lighting delivers energy-efficient brightness and meets Title 24 compliance
- Quiet and powerful performance with advanced ECM motor technology
Key Features
- Selectable Airflow: 50, 80, or 110 CFM options with Pick-A-Flow™ switch
- Advanced Heating: Self-regulating 1600W PTC heater for safe, fast warmth
- Dimmable LED Panel: 10W, 3000K, ≥90 CRI, 750 lumens with 50,000-hour life
- Night Light: Built-in <1W LED for subtle, energy-saving nighttime use

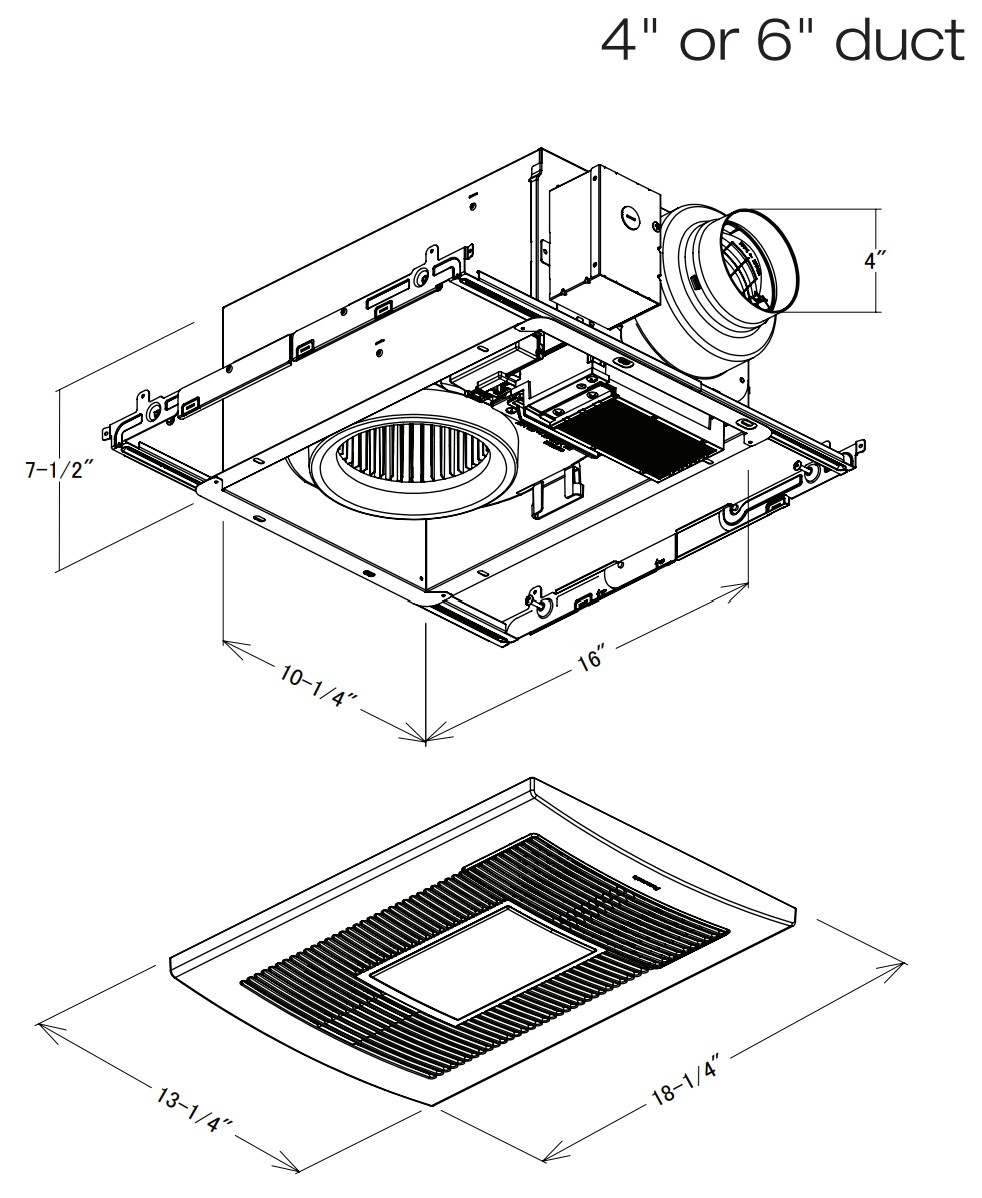

- Flexible Installation: Includes dual 4"/6" duct adapter and Flex-Z Fast™ bracket
Technical Specifications
| Technical Specs | |
|---|---|
| Model Number | FV-0511VHL1 |
| Voltage / Frequency | 120V / 60Hz |
| Motor Type | ECM (Brushless) |
| Dedicated Circuit | 20 Amp Required |
| Max Current | 0.50A |
| Performance Specs | |
|---|---|
| Air Volume (CFM) | 50 / 80 / 110 (Selectable) |
| Noise (Sones) | <0.3 / <0.3 / 0.7 |
| Power Consumption (Fan Only) | 4.7W – 26.0W |
| Heater Power | 1600W |
| Energy Efficiency | Up to 10.8 CFM/W |
| Lighting Specs | |
|---|---|
| LED Type | Dimmable Chip Panel |
| Color Temperature | 3000K (Warm White) |
| Color Rendering Index (CRI) | ≥90 |
| Lumen Output | 750 lumens |
| Rated Life | 50,000 hours |
| Night Light | <1W integrated LED |
Application Examples
- Primary and guest bathrooms requiring light, heat, and ventilation
- Cold climates and winter-ready builds
- Energy-efficient homes meeting California Title 24 requirements
- Retrofits and new construction with ceiling insulation up to R60
Installation Tips
- Install using included Flex-Z Fast™ bracket between 16–24" joist spacing
- Connect to either a 4" or 6" circular duct using mastic or foil tape
- Use a 20A dedicated circuit for proper power supply
- Mount grille correctly to ensure directional airflow and lighting alignment
Frequently Asked Questions
Does the FV-0511VHL1 provide both heat and light?
Yes, it includes a 1600W heater and a 10W dimmable LED light panel, along with a night light.
Can I adjust the fan speed?
Yes, the Pick-A-Flow™ switch allows you to choose from 50, 80, or 110 CFM to suit your needs.
Is it ENERGY STAR certified?
No, ENERGY STAR does not currently certify fan/heater/light combinations, though the unit is highly efficient and Title 24 compliant.
How quiet is it during operation?
It operates at <0.3 sones at lower CFM settings and 0.7 sones at 110 CFM, offering whisper-quiet performance.
Is the LED light replaceable?
No, the integrated LED chip panel is designed for long-term use with a 50,000-hour life rating.
Can I install this above a shower?
No, it is not approved for installation over tubs or showers.
What size duct is required?
This unit includes an integrated adapter for both 4" and 6" ducts.
Is a special switch required?
Standard multi-switch wall controls can be used to control the heat, vent, light, and night light functions.
