Product Description

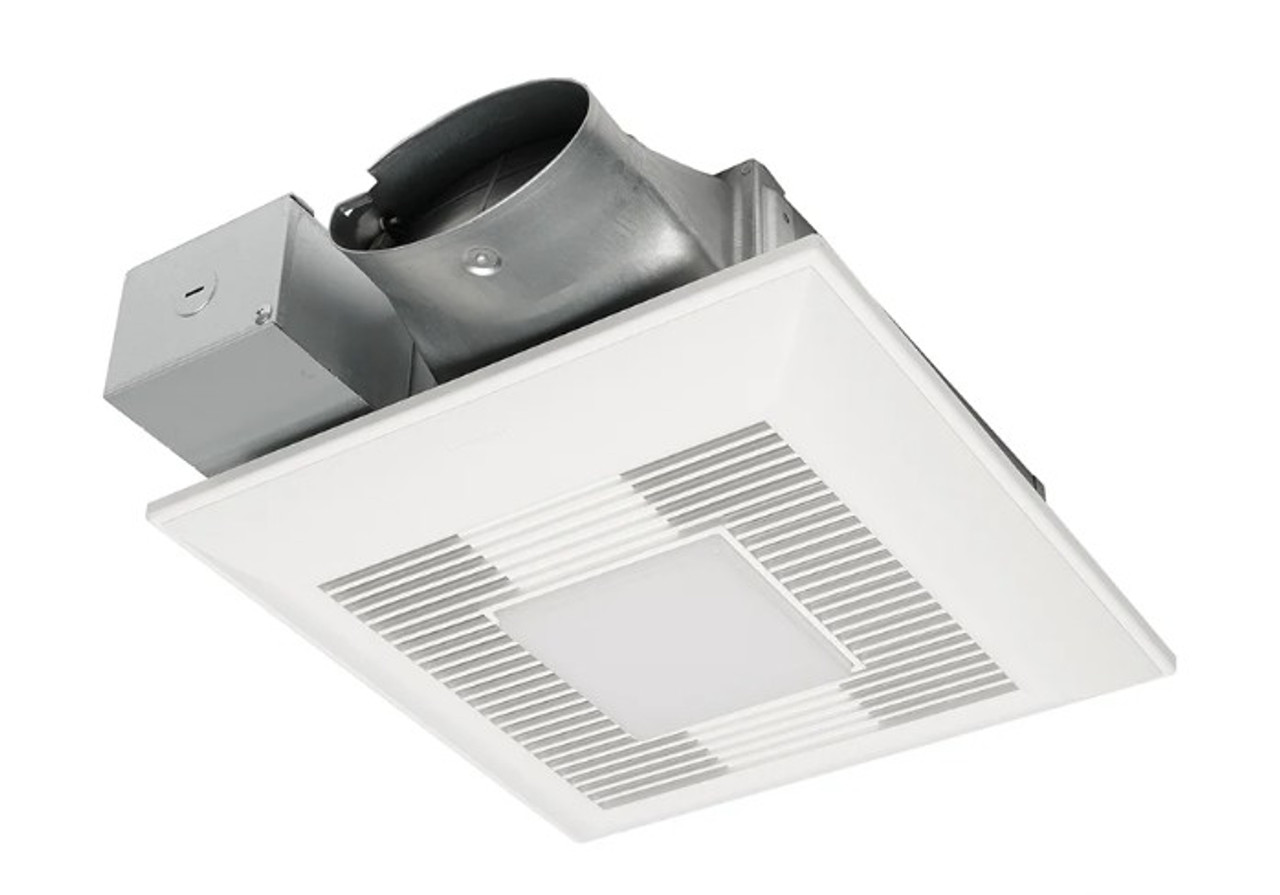

FV-0510VSCL1 WhisperValue® DC Fan/LED Light by Panasonic delivers quiet, efficient ventilation with integrated lighting and advanced humidity sensing. With selectable 50/80/100 CFM speeds and a built-in condensation sensor, this ENERGY STAR® certified model is ideal for bathrooms, laundry rooms, and other humid environments requiring both light and ventilation in a low-profile unit.
- Airflow: 50 / 80 / 100 CFM (Pick-A-Flow™)
- Noise Level: as low as <0.3 sones
- Lighting: 10W dimmable LED (700 lumens, 3000K)
- Humidity Control: Integrated condensation sensor
- Voltage: 120V / 60Hz
- ENERGY STAR®: Certified
- Free shipping on orders over $250
Product Benefits
- Supports ASHRAE 62.2 ventilation standards with customizable airflow
- Automatically responds to moisture and humidity with integrated RH sensor
- SmartFlow™ ECM motor maintains selected airflow under varying static pressure
- Quiet, continuous operation with dimmable LED lighting and built-in night light
Key Features
- Pick-A-Flow™ switch enables selection of 50, 80, or 100 CFM
- 10W LED panel produces 700 lumens at 3000K, 90+ CRI
- Condensation sensor with RH sensitivity adjustment
- SmartFlow™ brushless ECM motor for efficient, continuous performance
- UL/cUL listed for use in tubs or showers with GFCI circuit
Technical Specifications
| Technical Specs | |
|---|---|
| Voltage | 120V / 60Hz |
| Selectable Airflow | 50 / 80 / 100 CFM |
| Noise Rating | <0.3 – 0.9 sones |
| Power Consumption | 4.5W – 13.4W @ 0.1" w.g. |
| Max Current | 0.39A |
Performance Specs
| LED Output | 700 lumens |
| Color Temperature | 3000K Warm White |
| CRI | 90+ |
| Lifespan (LED) | 50,000 hours |
| Motor Speed | 733 – 970 RPM |
| Efficiency | Up to 12.1 CFM/W |
Compliance & Safety
| Certifications | UL, cUL, HVI, ENERGY STAR® |
| Shower Rated | Yes (with GFCI protection) |
| Radiation Damper Compatible | Yes – PC-RD05C5 (sold separately) |
Application Examples
- Bathrooms with high humidity or moisture buildup
- Powder rooms and utility closets with no windows
- New construction projects targeting green certifications
- Wall or ceiling installations in 2x4 construction
Installation Tips
- Use internal switch to set desired CFM before final assembly
- Connect condensation sensor and LED to grille as per wiring diagram
- Mount to joist or stud using included suspension bracket and flange
- Ensure duct runs are short, sealed, and insulated to maximize airflow
- Compatible with 4" oval or 3" round duct (adapter sold separately)
Frequently Asked Questions
Does the FV-0510VSCL1 come with a light?
Yes, it includes a 10W dimmable LED panel that produces 700 lumens of warm white light at 3000K, along with a <1W night light:contentReference[oaicite:0]{index=0}.
What is the purpose of the condensation sensor?
It detects humidity and temperature to automatically activate the fan and reduce moisture before condensation forms:contentReference[oaicite:1]{index=1}.
Can I adjust the humidity sensor sensitivity?
Yes, the built-in RH sensitivity control allows you to fine-tune the activation level for optimal performance in different environments:contentReference[oaicite:2]{index=2}.
Is this model ENERGY STAR® certified?
Yes, it meets ENERGY STAR® 2.0 requirements for ventilation and lighting efficiency:contentReference[oaicite:3]{index=3}.
What airflow options are available?
You can select 50, 80, or 100 CFM during installation using the Pick-A-Flow™ switch.
Can it be used over a tub or shower?
Yes, when installed on a GFCI circuit, this fan is UL/cUL listed for wet location use.
Is it compatible with dimmers?
Yes, it works with most 600W-rated dimmer switches from Lutron, Leviton, GE, and Almond brands:contentReference[oaicite:4]{index=4}.
What type of motor does it use?
It features a fully enclosed, brushless ECM motor designed for long life and continuous, quiet operation.
