Product Description

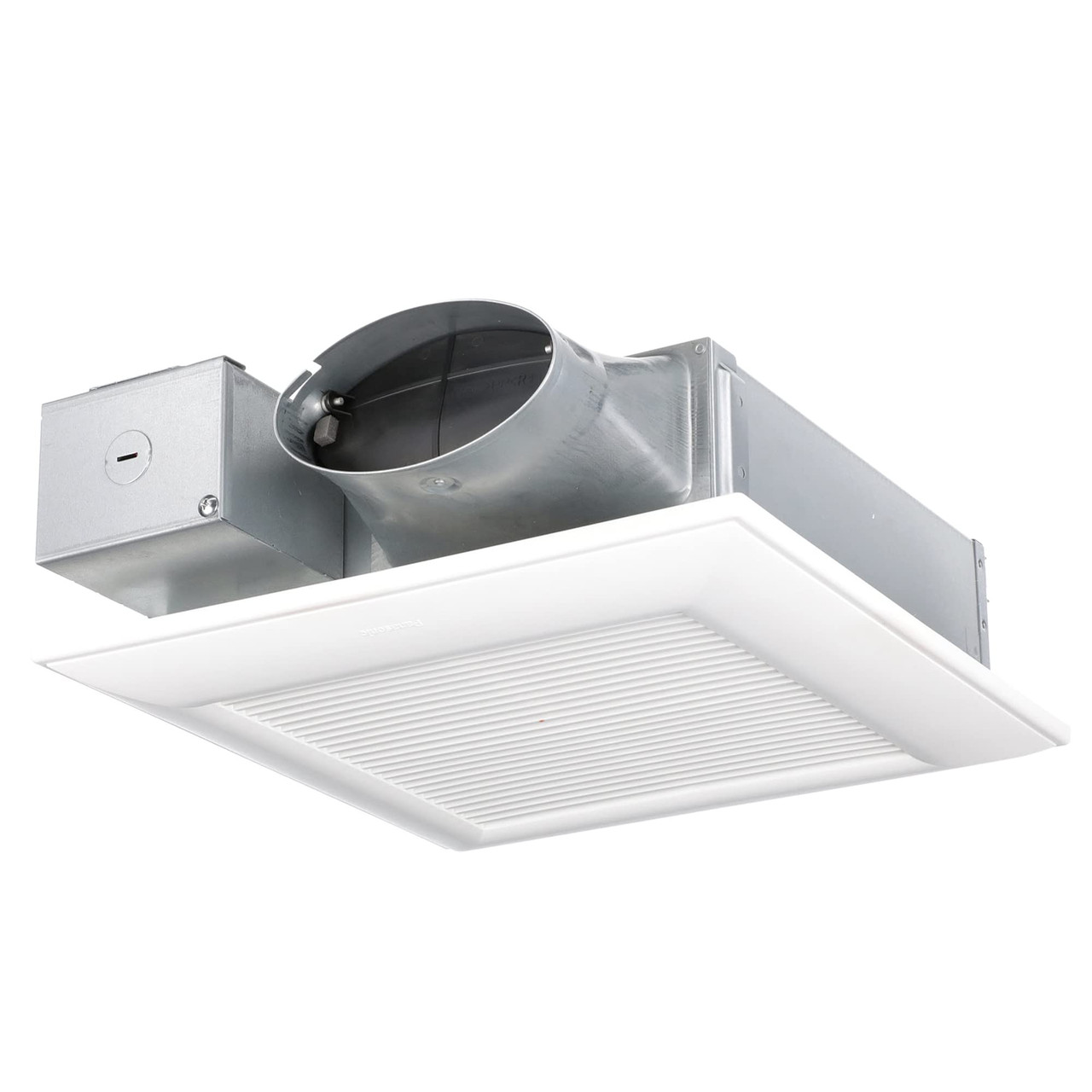

The Panasonic WhisperValue™ DC FV-0510VSC1 Ventilation Fan is a compact, high-performance fan equipped with innovative features to ensure optimal indoor air quality and energy efficiency. With an optional built-in condensation sensor and low-profile housing, this fan is perfect for residential and light commercial applications.
Key Features

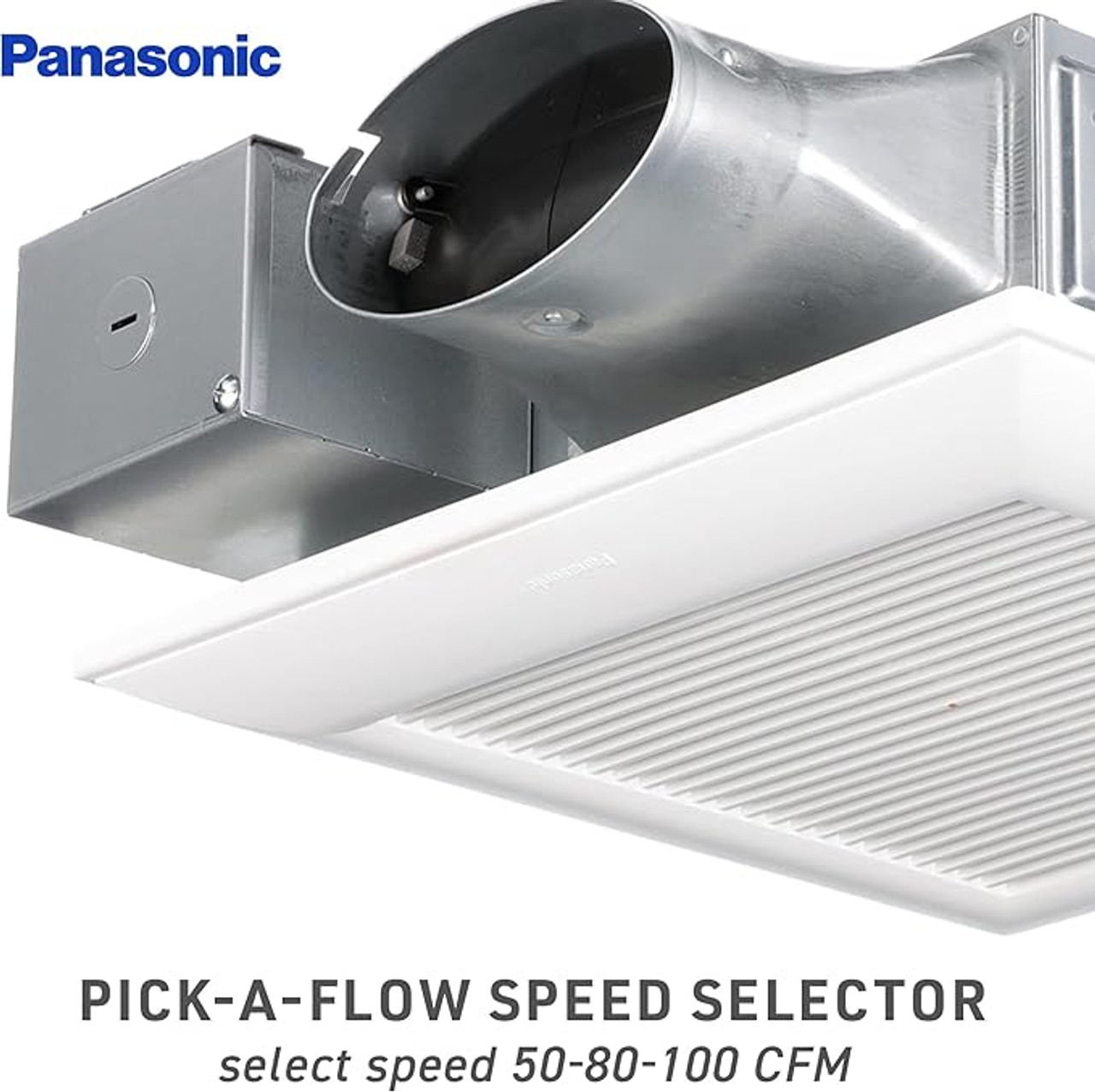

- Pick-A-Flow™ Technology: Customize airflow with 50, 80, or 100 CFM settings via an easy-to-use selector switch.
- SmartFlow™ Technology: Automatically adjusts the fan\u2019s speed to maintain optimal CFM performance under varying static pressures.
- Compact Design: The 3-3/8-inch housing depth makes it the lowest profile ENERGY STAR®-rated fan, ideal for 2x4 construction.
- Condensation Sensor (Optional): Helps control bathroom humidity and prevent mold and mildew by detecting relative humidity and temperature changes.
- Quiet Operation: Operates at less than 0.3 sones for a whisper-quiet environment.
- Energy Efficiency: Features an ECM motor for reliable, energy-efficient performance that meets ENERGY STAR® standards.
- LED Lighting: Includes a 10W dimmable LED chip panel with <1W nightlight for warm, energy-efficient illumination (3000K, 90 CRI, 700 lumens).
- Code Compliance: Meets ASHRAE 62.2, LEED, CALGreen, and Title 24 requirements, and is UL listed for tub/shower enclosure when GFCI protected.
Specifications
- Airflow: 50/80/100 CFM
- Noise: <0.3 sones
- Power Consumption: 4.4-12.4 watts (depending on airflow setting)
- Duct Diameter: 4\u201d oval to 3\u201d round (adapter sold separately)
- Grille Dimensions: 13" x 13"
- Motor Type: ECM with ball bearing for durability
- Power Supply: 120V/60Hz
- Certifications: ENERGY STAR®, UL Listed, ISO 9001 Certified Facility
- Warranty: 6 years (motor), 5 years (LED), 3 years (other parts)
Installation Tips
- Ensure a compatible housing, such as Panasonic models NH-PVHS1 or NH-PVHC2, is installed for new construction.

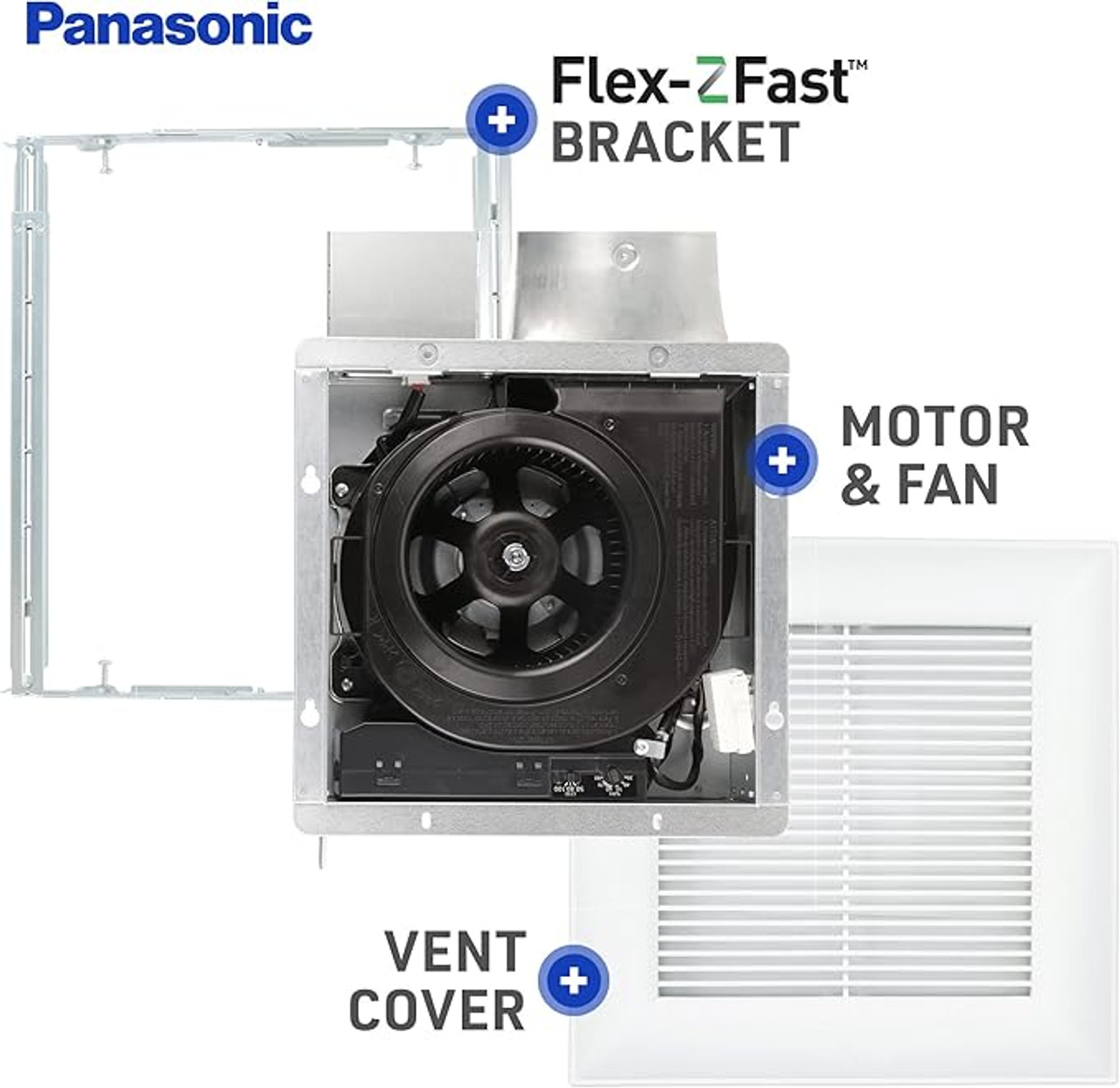

- Use the included mounting brackets for secure and straightforward installation.
- Position the fan for the desired airflow setting using the Pick-A-Flow™ selector switch before installation.
- A separate circuit is required for the LED nightlight wiring if utilized.
- For optimal performance, ensure the duct system minimizes bends and obstructions.
Accessories (Sold Separately)
- Duct Adapter: Model FV-VS43R for transitioning from 4\u201d oval to 3\u201d round.
- Ceiling Radiation Damper: Model PC-RD05C5 for fire-rated installations.
- Transfer Register Box: Model FV-JD for room-to-room air circulation.
Frequently Asked Questions (FAQs)
Q: What makes the condensation sensor unique?
A: The sensor detects both relative humidity and temperature changes to anticipate dew point and automatically activates the fan to reduce humidity, preventing mold and mildew growth.
Q: Is this fan suitable for small bathrooms?
A: Yes, the Pick-A-Flow™ settings allow you to adjust the airflow to suit smaller spaces.
Q: Can the fan be mounted on a wall?
A: Yes, the WhisperValue DC™ can be installed on ceilings or walls, making it versatile for various applications.
Q: Does the LED nightlight require a separate switch?
A: Yes, the LED nightlight must be wired separately to operate independently of the main light.
Q: Is this fan compliant with California\u2019s stringent energy standards?
A: Yes, it meets California Title 24, CALGreen, and other energy efficiency codes.
The Panasonic WhisperValue™ DC FV-0510VSC1 is a reliable and efficient solution for ventilation needs, combining innovative technology, energy efficiency, and a compact design. It ensures optimal indoor air quality while meeting stringent code requirements.
