Product Description

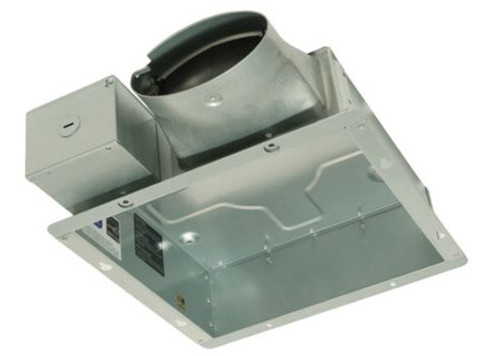

FV-0510VSA1 WhisperValue® DC Fan Housing Can by Panasonic is part of a modular contractor pack solution designed for streamlined installation and flexible stocking. Intended for use with compatible motor/grille assemblies (FV-0510VSB1, FV-0510VSCB1, or FV-0810VSSB1), this durable 26-gauge galvanized steel housing includes a 4" oval duct collar and built-in damper for efficient airflow and static pressure control.
- Compatible With: FV-0510VSB1, FV-0510VSCB1, FV-0810VSSB1
- Duct Connection: 4" oval (adapts to 4" round)
- Mounting: Ceiling or wall (includes suspension brackets)
- Housing Material: 26-gauge galvanized steel
- Airflow Capacity: Supports 50/80/100 CFM configurations
- Free shipping on orders over $250
Product Benefits
- Modular design lets contractors stock and install housing separately from motor/grille assembly
- Built-in L-bracket and suspension system simplify ceiling or wall installation
- Air Barrier flange helps reduce leakage during blower door testing for energy code compliance
- Ideal for large projects where multiple housings need to be staged ahead of time
Key Features
- Universal Housing compatible with multiple fan configurations
- 4" Oval duct collar with built-in backdraft damper
- UL Listed for tub/shower installation with GFCI protection
- ENERGY STAR® compliant when combined with qualifying motor units
- Meets ASHRAE 62.2 ventilation code when used with multi-speed motors
Technical Specifications
| Technical Specs | |
|---|---|
| Voltage | 120V / 60Hz (via motor) |
| Duct Collar | 4" oval (also compatible with 4" round) |
| Material | 26-gauge galvanized steel |
| Dimensions | 10-1/4” x 10-1/4” x 3-3/8” |
| Weight | 3.2 lbs |
Physical Specs
| Mounting Options | Ceiling or wall, L-bracket included |
| Compatible Fan Modules | FV-0510VSB1, FV-0510VSCB1, FV-0810VSSB1 |
| Backdraft Damper | Yes, pre-installed |
| Radiation Damper Compatibility | Model PC-RD05C5 (sold separately) |
Application Examples
- New construction and large-scale residential ventilation projects
- Modular installations for faster rough-in and delayed trim-out
- ENERGY STAR® and LEED-compliant construction sites
- Pre-wiring and pre-ducting phases of HVAC/electrical planning
Installation Tips
- Install housing before drywall or ceiling finishes using the L-bracket and 2x4 joists/studs
- Ensure ductwork is short and straight for best airflow performance
- Seal joints with foil tape and insulate to reduce heat loss and condensation risk
- Insert fan motor/grille module (sold separately) after wall or ceiling is complete
Frequently Asked Questions
What is included in the FV-0510VSA1 contractor pack?
This model includes the housing, duct adapter, junction box, and installation hardware. It does not include the motor or grille assembly.
Which fan modules are compatible with this housing?
Compatible units include FV-0510VSB1, FV-0510VSCB1 (with humidity sensor), and FV-0810VSSB1.
Can I use this housing for ceiling and wall installations?
Yes, it is designed for both orientations and includes mounting brackets suitable for either configuration.
Is the housing UL listed for use above showers?
Yes, when installed with a GFCI-protected circuit and compatible UL-listed motor assemblies.
Does this product include the motor?
No, FV-0510VSA1 is the housing only. The motor/grille must be purchased separately to complete the fan assembly.
Is this housing ENERGY STAR® rated?
When used with a qualifying motor/grille assembly, the complete unit meets ENERGY STAR® criteria.
How many units come in a contractor pack?
The contractor pack includes 4 housing cans per box. Matching fan modules are also available in 4-pack configurations.
Is the duct collar compatible with 3" round duct?
Yes, with the optional Panasonic 4" oval to 3" round adapter (model FV-VS43R), sold separately.
