Product Description

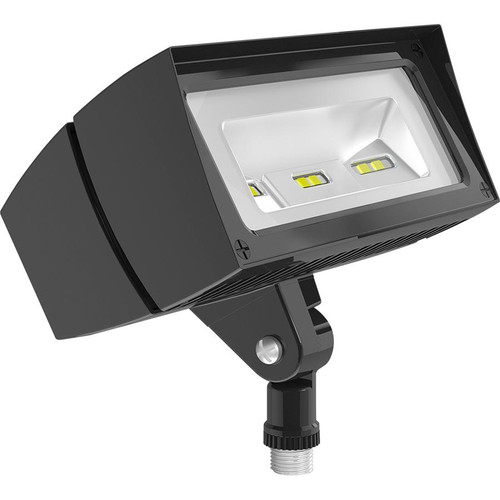

RAB FFLED18N Floodlight delivers 2,416 lumens of neutral 4000K light from an efficient 18W package, replacing 70W metal halide with instant-on performance and rugged outdoor reliability. The rectangular form factor with patented Air-Flow heat sink enhances thermal management for long LED and driver life in facade, sign, landscape, and security lighting applications.
- Lumen Output: 2,416 lm
- Wattage: 18W (Input 19.6W)
- Color Temperature: 4000K Neutral (82 CRI)
- Efficacy: 123 lm/W (typ.)
- Beam: NEMA 7H x 6V
- Voltage: 120–277V, Class 2 driver
- Surge Protection: 6kV
- Listings: UL Wet Location, IP66; DLC Premium
- Operating Temps: -40°C to 40°C ambient
- Finish: Bronze; Weight 3.9 lbs
- Free shipping on orders over $250
Product Benefits
- Energy-cutting replacement: Outperforms 70W metal halide with far lower power and maintenance.
- Clean, uniform illumination: NEMA 7H x 6V beam with semi-specular reflector for balanced coverage.
- Built for harsh weather: IP66 enclosure and silicone gaskets defend against dust and water.
- Fast installs & aiming: Heavy-duty knuckle arm with O-ring seal enables precise, secure focus.
Key Features
- Air-Flow heat-sink design improves thermal performance and longevity.
- Wide input range 120–277V with high power factor and low THD.
- Cold-start rated to -40°C for instant-on illumination in frigid climates.
- Dimming & controls options: 0–10V dimming driver and photocell/sensor accessories available (per ordering matrix).
- DLC Premium listed for top-tier rebate eligibility.
Enhanced Specifications
Technical Specs
| Lumen Output | 2,416 lm |
| Wattage / Input | 18W LED / 19.6W input |
| CCT / CRI | 4000K / 82 CRI |
| Efficacy | ≈123 lm/W |
| Beam | NEMA 7H x 6V |
| Lifespan | L70 @ 100,000 hours |
Physical Specs
| Housing | Die-cast aluminum body, lens frame & arm |
| Lens / Optics | Tempered glass; semi-specular anodized reflector |
| Finish | Bronze, high-durability coating |
| Dimensions | Approx. 8 2/3" L × 5" W × 7" H |
| Weight | 3.9 lbs |
Electrical & Compliance
| Input Voltage | 120–277V AC, 50/60 Hz; Class 2 constant current driver |
| Power Factor / THD | PF up to 0.99; THD as low as 12.6% (120V) |
| Protection | 6kV surge |
| Listings | UL Listed for wet locations; IP66; DLC Premium |
| Ambient Range | -40°C to 40°C |
| Warranty | 5-Year Limited |
Application Examples
- Building facades and perimeter security
- Sign and monument illumination
- Landscape accents and tree uplighting
- Small parking courts and pathways
Installation Tips
- Seal the knuckle arm threads with Teflon tape or silicone; plug unused holes for weatherproofing.
- Mount to a 1/2" NPS hole on a junction box or landscape post; tighten securely before aiming.
- For 0–10V dimming, run separate low-voltage control conductors to PURPLE (+) and PINK/GRAY (–).
- Always turn power OFF and verify ground continuity before wiring.
Frequently Asked Questions
Q: What HID fixture does FFLED18N replace?
A: It’s designed as an 18W LED replacement for 70W metal halide floods with superior efficacy.
Q: Is it weatherproof?
A: Yes. The enclosure is rated IP66 and UL Listed for wet locations, suitable for ground mounting.
Q: Can I dim this floodlight?
A: 0–10V dimming is available on dimming-driver models; verify configuration in the ordering matrix.
Q: Will it start in cold climates?
A: Yes. It’s cold-start rated down to -40°C (-40°F) for instant-on performance.
Q: Are photocells or sensors available?
A: Yes. Swivel/button photocells and motion sensors are offered as factory options (voltage-dependent).
