Product Description

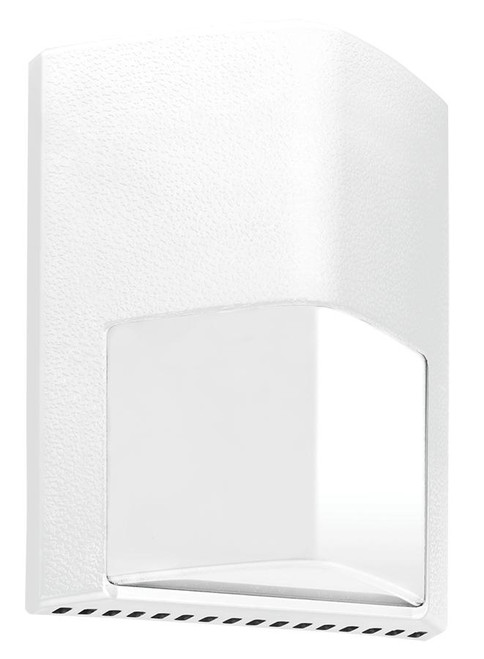

The ENTRA12W Wall Pack by RAB Lighting provides an affordable, high-performance, and energy-efficient LED solution for doorway lighting. Designed for durability and long-lasting performance, this fixture is perfect for mounting heights up to 10 feet, offering superior illumination while replacing 70W high-pressure sodium lamps.
Key Features
- Lumen Output: 1284 lumens
- Color Temperature: 5000K (Cool)
- CRI: 70
- Wattage: 12W
- Low-profile, vandal-resistant polycarbonate housing
- 100,000-hour LED lifespan
- IP66-rated for dust and water ingress protection
- ADA-compliant design
- 5-year no-compromise warranty
Specifications
- Lumen Output: 1284 lumens
- Color Temperature: 5000K (Cool)
- CRI: 70
- Wattage: 12W
- Input Voltage: 120-277V
- Efficacy: 89.2 lm/W
- Material: Die-cast aluminum housing with polycarbonate lens
- Ingress Protection: IP66
- Lifespan: 100,000 hours
- Operating Temperature: -40°F to 104°F (-40°C to 40°C)
Installation Tips
- Ensure power is OFF before installation or maintenance.
- For junction box mounting, ensure gaskets are fully sealed and all screws are tightened firmly.
- For wall mounting, use suitable hardware and seal all gaps with caulk for weatherproofing.
- Refer to the INSTALLATION GUIDE for detailed instructions.
Frequently Asked Questions
Q: Is the ENTRA12W suitable for outdoor use?
A: Yes, it is IP66-rated for dust and water resistance, making it ideal for outdoor installations.
Q: What is the expected lifespan of the LED?
A: The ENTRA12W features a 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
Q: Does this fixture comply with ADA requirements?
A: Yes, the ENTRA12W is ADA-compliant.
Q: What is the equivalent wattage compared to traditional fixtures?
A: The ENTRA12W is equivalent to a 70W high-pressure sodium fixture.
Q: Can it operate in cold weather?
A: Yes, the ENTRA12W can operate in temperatures as low as -40°F (-40°C).
Q: Is the product covered by a warranty?
A: Yes, it comes with a 5-year, no-compromise warranty.
