Product Description

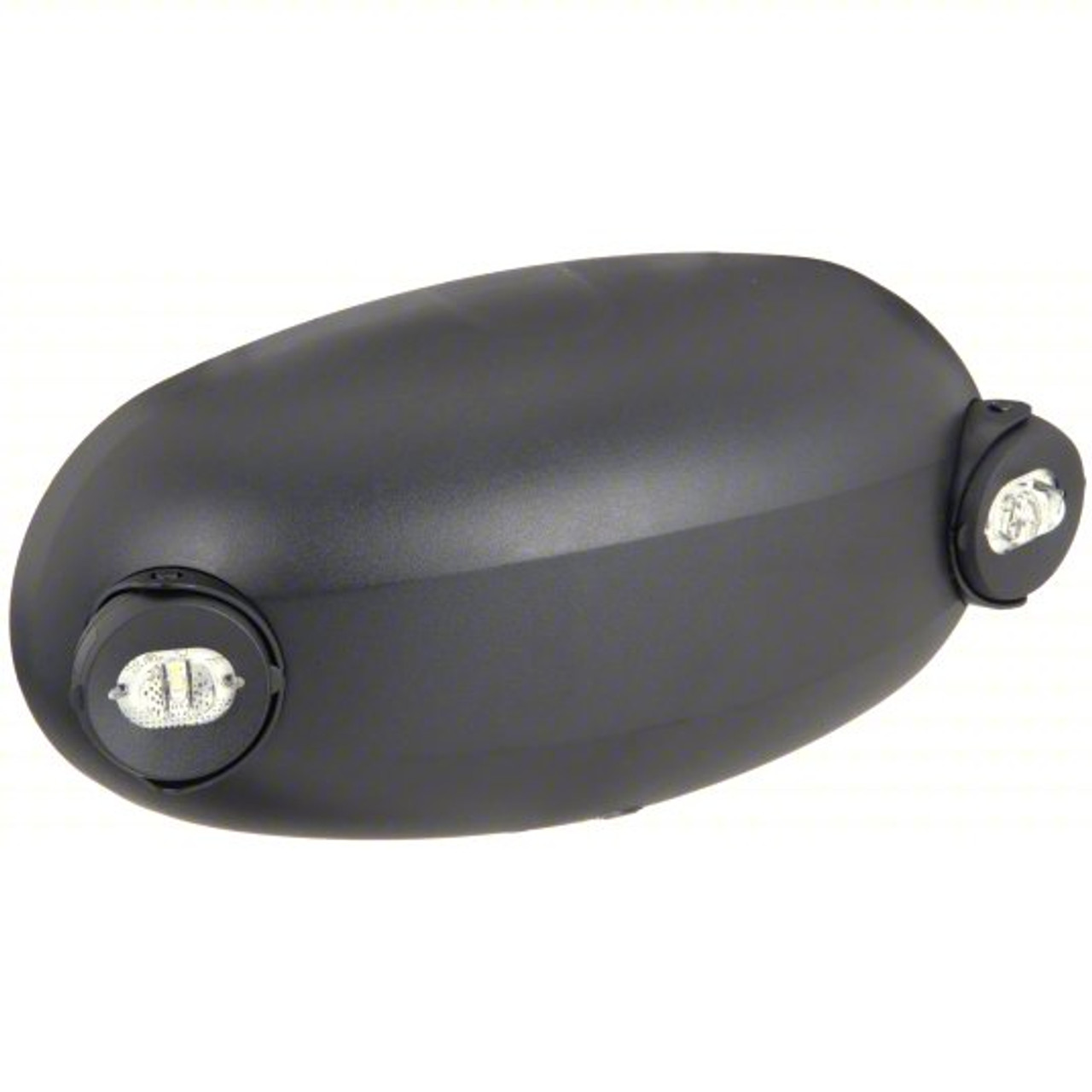

ELM2L-B-M12 is Lithonia Lighting’s contemporary commercial LED emergency light with aimable optics, black housing, and standard 120/277V AC input. Each head uses 1.2W high-performance LEDs and the unit provides a minimum 90 minutes of emergency illumination—ideal for corridors, stairwells, lobbies, and small rooms in commercial facilities.
Product Summary
- Series: ELM2L (aimable optics) emergency light
- Input Voltage: 120/277V AC, 60 Hz (other voltages available)
- Lamp Heads: Two LEDs, 1.2W each with acrylic lenses
- Total Light Output: ~220 lumens (linear pattern)
- Housing Color: Black (B), 5VA flame-rated thermoplastic
- Runtime: Minimum 90 minutes
- Rating: Damp Location; Wet Location with WPVS accessory
- Dimensions: 9.72" L × 3.10" D × 4.68" H; ~1.31 lb
Free shipping on orders over $250
Product Benefits
- Code-compliant egress lighting: Provides 90 minutes of illumination to meet UL 924/NFPA 101 life safety requirements.
- Quick installation: Universal J-box pattern, blind-mate connector, and tool-less front cover speed both mount and service.
- Aimable optics: Track-and-swivel heads let you target stair treads, landings, or corridor turns for optimal coverage.
- Tough, long-lasting build: 5VA flame-rated, impact- and scratch-resistant thermoplastic with UV-stable resin to resist discoloration.
Key Features
- Two LED heads with acrylic lenses; 1.2W per head delivering a combined ~220 lm at 5000K CCT.
- Damp Location listed standard; add WPVS accessory for Wet Location and vandal protection.
- Ceiling or wall mount for ELM2L; 7/8" top entry for 1/2" conduit.
- Self-diagnostics and remote test available (SDRT option) for automated monthly/annual testing.
- Battery choices: Nickel-cadmium or Lithium Iron Phosphate (LTP). LTP supports extended run or remote heads.
Specifications
Technical Specs
| Brand / Series | Lithonia Lighting / ELM2L |
| Input Voltage | 120/277V AC, 60 Hz (other voltages available) |
| Battery | Sealed, maintenance-free Nickel-Cadmium or Lithium Iron Phosphate |
| Runtime | ≥ 90 minutes (LTP option can extend to 3 hours without remotes) |
| Testing | Push-button test; optional SDRT self-diagnostics & remote test |
| Warranty | 5-year limited |
Performance Specs
| Lamp Heads | 2 × 1.2W LEDs, acrylic lenses |
| Total Output | ~220 lumens (linear pattern) |
| Color Temperature | 5000K |
| Primary Circuit Power | ~1.1–1.4 W input depending on battery/voltage |
| Spacing (guideline) | At 7.5' MH, ~35' multiple-luminaire spacing for a 3' egress path (1 fc avg) |
Physical Specs
| Dimensions | 9.72" L × 3.10" D × 4.68" H |
| Weight | ~1.31 lb (0.59 kg) |
| Housing | Black (B) thermoplastic, 5VA flame rated, UV-stable |
| Mounting | Wall or ceiling; universal J-box pattern; 7/8" KO for 1/2" conduit |
| Status Indicator | Back-lit test switch with multi-color LED |
Compliance & Safety
| Listings | UL 924, NFPA 101, NFPA 70, FCC Part 15, OSHA; CSA C22.2 No. 141-10 |
| Environmental | Damp Location 50–104°F (10–40°C); Wet Location when used with WPVS accessory |
| Buy American | BAA option available |
Application Examples
- Commercial corridors, stairwells, and elevator lobbies
- Small offices, storage rooms, mechanical & electrical rooms
- Retail back-of-house and restrooms
- Schools, healthcare support spaces, and hospitality egress paths
Installation Tips
- Use the universal J-box pattern on the back plate; remove the front cover tool-lessly for wiring.
- For conduit, use the top 7/8" entry (1/2" trade size) and secure per local code.
- Select battery type/voltage options per project spec; standard unit accepts 120/277V input.
- Add the WPVS accessory where wet-location or vandal resistance is required.
- Enable SDRT for automatic 30-day/annual tests and remote (laser) walk-testing if desired.
Frequently Asked Questions
How long will the ELM2L provide emergency lighting?
The unit provides a minimum of 90 minutes of illumination at the rated wattage; LTP battery versions can extend runtime up to about 3 hours with no remotes.
Is this model suitable for wet locations?
It is Damp Location listed as standard. For wet environments, use the WPVS wet protective vandal shield accessory to obtain a Wet Location listing.
What do the “1.2W” and “~220 lm” specs refer to?
Each head uses a 1.2W LED; together the two heads deliver approximately 220 lumens with a linear distribution at 5000K.
Can I mount it on the ceiling?
Yes. The ELM2L version supports wall or ceiling mounting. (The ELM2LF fixed-optic version is wall-mount only.)
Does it offer self-diagnostics?
Yes. Choose the SDRT option for automatic monthly and annual tests with a multi-color status LED and remote test capability.
What’s the operating temperature range?
Listings are based on operation between approximately 50–104°F (10–40°C). Higher or lower temperatures can affect battery life and capacity.
Can this unit power remote heads?
Lithium Iron Phosphate (LTP) versions support remote capacity for compatible ELMRE/ELMRW remote heads or can be configured for extended runtime.
What does “B” and “M12” indicate in the catalog number?
“B” designates the black housing color. “M12” typically denotes a manufacturer multi-pack; confirm order quantities with your distributor.
