Product Description

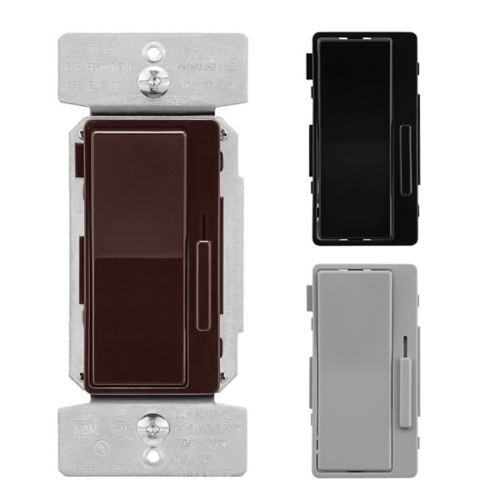

DUL06P-C7 Universal Decorator Dimmer, 120V, w/ preset Brown/Gray/Black by Eaton is a universal, forward phase-cut dimmer engineered for smooth, reliable control of today’s most common lighting loads. With preset functionality, adjustable trim settings, and no neutral requirement, this dimmer is ideal for residential and light commercial applications where performance, flexibility, and modern aesthetics matter.
Quick Specs
- Voltage: 120V AC, 60Hz
- Wiring: Single pole or 3-way
- LED/CFL Rating: 300W
- INC/HAL/FLR/ELV Rating: 600W
- MLV Rating: 600VA
- Dimming Type: Forward phase-cut
- Neutral: Not required
- Finish Kit: Brown / Gray / Black (C7)
- Compliance: UL/cUL Listed, California Title 20/24
Free shipping on orders over $250
Product Benefits
- Universal load compatibility: Controls dimmable LED, CFL, incandescent, halogen, dimmable fluorescent, ELV, and MLV lighting with one device.
- Preset convenience: Automatically returns lights to the previous brightness level when switched ON.
- Easy retrofit installation: No neutral required, making replacement of standard decorator switches simple.
- Enhanced LED performance: Adjustable low-end and high-end trim helps reduce flicker and dropout.
Key Features
- Preset dimmer: Remembers last selected light level
- Integrated full-slide control: Smooth, linear dimming operation
- Single pole & 3-way capable: Install dimmer in either 3-way location
- No neutral required: Ideal for existing wiring conditions
- Adjustable trim settings: Optimize minimum and maximum dim levels
- Soft ON feature: Gradual ramp-up for comfortable lighting transitions
- Interference protection: Built-in RF filtering and ESD protection
- Modern color options: Includes Brown, Gray, and Black faceplates
Specifications
Technical
| Input Voltage | 120V AC, 60Hz |
| Wiring Type | Single pole or 3-way |
| Dimming Method | Solid-state, forward phase-cut |
Load Ratings
| Dimmable LED / CFL | 300W |
| Incandescent / Halogen | 600W |
| Dimmable Fluorescent | 600W |
| Electronic Low Voltage (ELV) | 600W |
| Magnetic Low Voltage (MLV) | 600VA |
Physical & Compliance
| Form Factor | Decorator |
| Finish | Brown / Gray / Black |
| Listings | cULus Listed, NOM Certified |
| Energy Compliance | California Title 20 / Title 24 |
| Warranty | 2-Year Limited Warranty |
Applications
- Residential lighting: Living rooms, bedrooms, dining areas, and hallways.
- LED retrofits: Smooth dimming for modern LED fixtures.
- 3-way locations: Stairways, corridors, and rooms with multiple entrances.
- Light commercial spaces: Offices, meeting rooms, and shared areas.
Installation Tips
- Turn power OFF: Switch off circuit breaker before installation.
- One dimmer per 3-way circuit: Use a standard switch at the other location.
- Adjust trim settings: Fine-tune low-end and high-end trim for optimal lamp compatibility.
- Use copper conductors: Compatible with #14 or #12 copper wire only.
- Verify lamp ratings: Do not exceed the maximum rated load.
FAQ
What lighting types can this dimmer control?
It supports dimmable LED, CFL, incandescent, halogen, dimmable fluorescent, ELV, and MLV lighting loads.
Does this dimmer require a neutral wire?
No. This dimmer is designed to operate without a neutral connection.
Can it be installed in a 3-way application?
Yes. The dimmer can be installed in either location of a 3-way circuit, with a standard switch used at the other location.
What is the maximum LED load?
The maximum rated load for dimmable LED and CFL lighting is 300W.
Are the faceplate colors included?
Yes. The C7 version includes Brown, Gray, and Black color options.
Is it compliant with California energy codes?
Yes. It meets California Title 20 and Title 24 requirements.
