Product Description

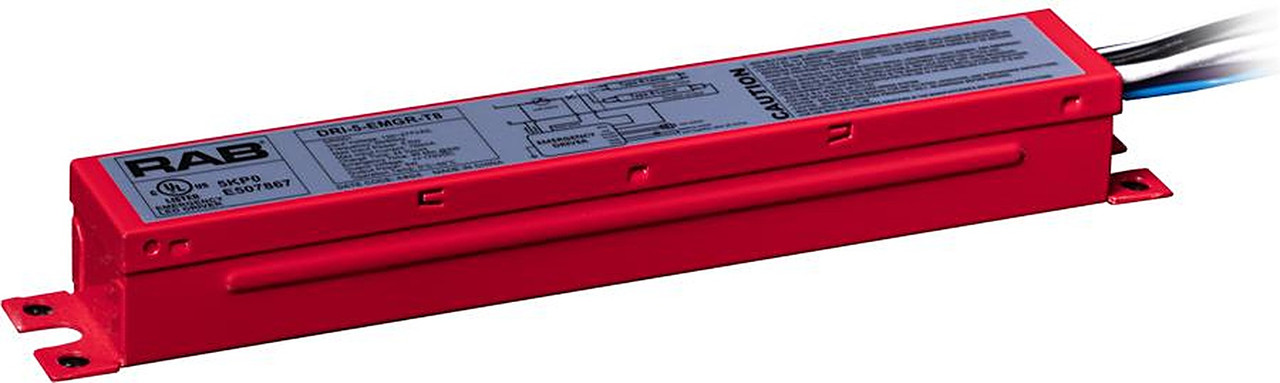

DRI-5-EMGR-T8 Driver Linear Tubes 5W EM Driver for LED T8 Bypass Tubes Double from RAB Lighting is a compact emergency LED driver designed for use with single- or double-ended bypass T8 tubes. Delivering constant 5W output in emergency mode for up to 90 minutes, it ensures uninterrupted illumination during power outages. Housed in a durable metal casing, the driver includes a 2-in-1 test switch and LED indicator for easy maintenance and compliance with UL 924.
RAB Lighting
Input Power: 5W
Input Voltage: 120–277V AC
Emergency Duration: 90 minutes
Max Output Voltage: 300VDC
Compatible with: T8 Type B Single & Double-Ended Bypass Tubes
UL Listed / NSF Listed / CEC Compliant
Operating Temp: 32°F to 122°F (0°C to 50°C)
Free shipping on orders over $250
Benefits
- Ensures uninterrupted light during outages with 90-minute emergency operation
- Compact metal design fits easily into troffer and strip fixture housings
- Compatible with both single and double-ended LED bypass tubes
- Test switch with LED indicator simplifies monthly testing and maintenance
Key Features
- One-Piece Metal Housing for durability and easy fixture integration
- UL 924 Evaluated to meet emergency lighting standards
- 2-in-1 LED Test Switch and Indicator Light included
- Rated for Food Zones with NSF/ANSI compliance
- Safe for Max Mounting Height of 8.5 ft (2.6 m)
- 5-Year Limited Warranty on all components including battery and finish
Technical Specifications
| Performance Specs | |
|---|---|
| Product Type | Emergency LED Driver |
| Input Wattage | 5W |
| Output Power | 5W (constant) |
| Emergency Duration | 90 minutes |
| Electrical Specs | |
|---|---|
| Input Voltage | 120–277V AC |
| Power Factor | >0.4 @ 120V |
| Input Current @ 120V | 100mA |
| Max Output Voltage | 300VDC |
| Physical Specs | |
|---|---|
| Material | Metal housing |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Compliance | |
|---|---|
| UL Listed | Yes, UL 924 compliant |
| NSF Listed | Yes, for non-contact and splash food zones |
| CEC Status | Lawful for sale in California |
Application Examples
- Commercial offices using T8 LED bypass lamps
- Food zone environments such as kitchens (with tube guard)
- Schools, hospitals, and emergency corridors
- Warehouses and manufacturing spaces with linear lighting
Installation Tips
- Mount in troffer or strip fixture per provided wiring diagrams
- Install test switch in a visible location using included hardware
- Do not connect inverter connector until AC power is supplied
- Use only with grounded, UL listed fixtures rated for damp locations
- Charge for 12 hours before testing emergency function
Frequently Asked Questions
Q: What kind of LED tubes is this emergency driver compatible with?
A: It works with RAB Type B single-end and double-end bypass T8 LED tubes, such as T8-9-24G-8XX-DE-BYP and T8-14-48G-8XX-DE-BYP:contentReference[oaicite:0]{index=0}.
Q: How long does it operate in emergency mode?
A: It provides 5W of constant power for at least 90 minutes.
Q: Is the unit dimmable?
A: No, the DRI-5-EMGR-T8 is not compatible with dimmers:contentReference[oaicite:1]{index=1}.
Q: Can it be used outdoors?
A: No, it is designed for indoor use only:contentReference[oaicite:2]{index=2}.
Q: How high can it be mounted?
A: The maximum mounting height is 8.5 feet (2.6 meters):contentReference[oaicite:3]{index=3}.
Q: Is this unit UL listed?
A: Yes, it is evaluated to UL 924 and fully listed:contentReference[oaicite:4]{index=4}.
Q: Does it include a test switch and indicator?
A: Yes, a 2-in-1 LED test switch and indicator light are included for easy monitoring:contentReference[oaicite:5]{index=5}.
Q: What warranty does RAB offer for this product?
A: RAB provides a 5-year limited warranty covering performance, driver, battery, and finish:contentReference[oaicite:6]{index=6}.
