Product Description
DRI-10-EMGR-TYPE B Emergency Driver B by RAB Lighting delivers reliable emergency lighting functionality for T8 LED Bypass Linear fixtures. Designed for indoor damp locations, this compact emergency driver ensures continuous illumination during power outages with a constant 10-watt output for up to 90 minutes.
- Input Voltage: 120-277V AC, 50/60Hz
- Emergency Output: 10W constant power
- Operation Time: 90 minutes
- Temperature Range: 32°F to 122°F (0°C to 50°C)
- Listings: UL Listed, RoHS compliant, FCC Part 15B
Free shipping on orders over $250
Product Benefits
- Ensures emergency lighting compliance in T8 LED Bypass installations
- Operates one LED lamp for up to 90 minutes during outages
- Compact design with built-in LED test switch simplifies installation
- Ideal for offices, schools, retail, and healthcare environments
Key Features
- One-piece metal housing for durability and ease of integration
- 2-in-1 LED test switch and indicator light pre-installed
- UL 924 compliant emergency performance
- FCC-compliant with reduced interference
- RoHS-compliant and mercury-free components
Technical Specifications
| Technical Specs | |
|---|---|
| Input Voltage | 120–277V AC |
| Frequency | 50/60Hz |
| Output Power (Emergency) | 10 Watts |
| Operation Time | 90 minutes |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Physical Specs | |
|---|---|

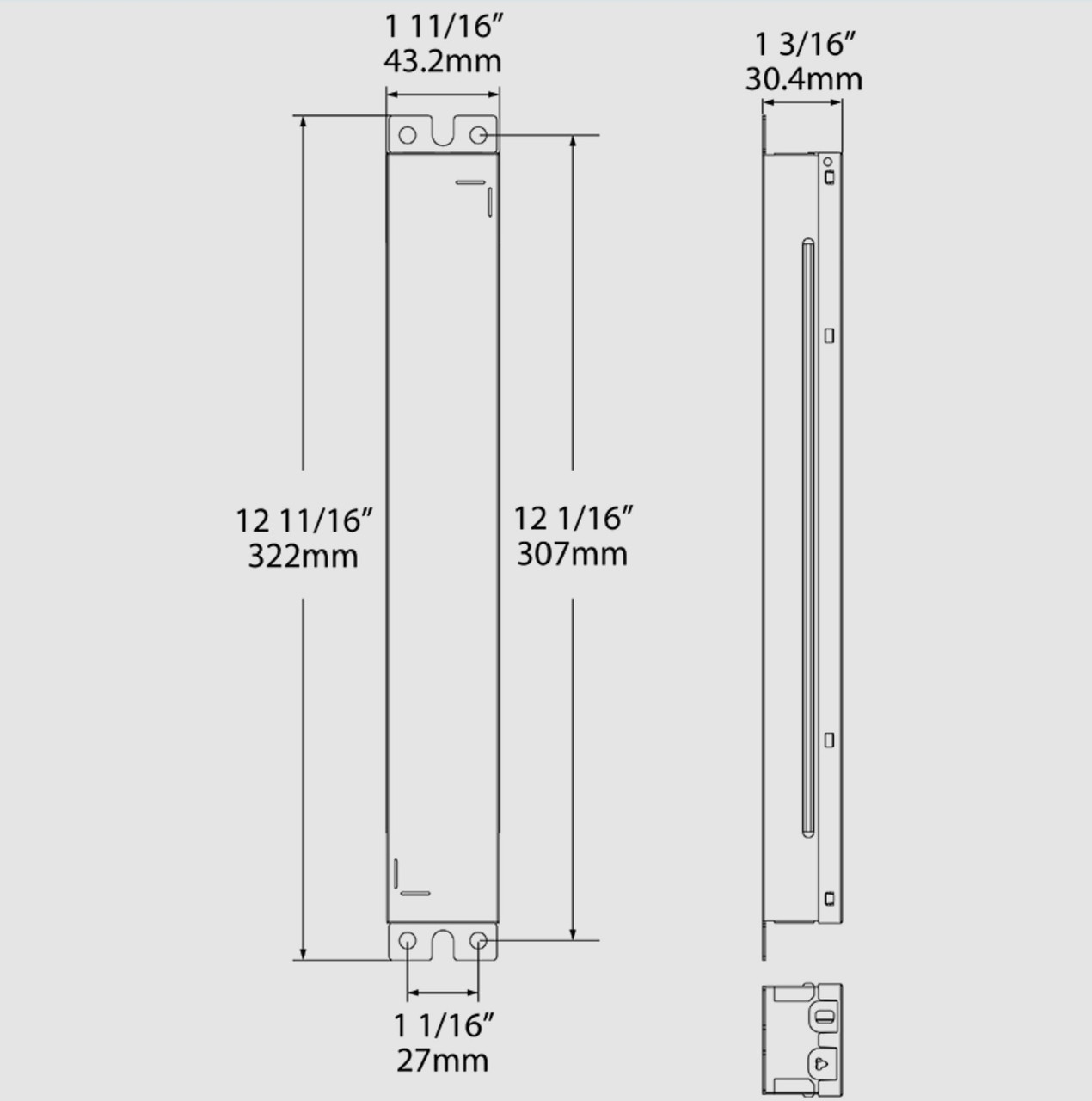

| Housing | Metal, cuboid shape |
| Minimum Compartment Size | 14 in (L) |
| Compliance & Safety | |
|---|---|
| Certifications | UL Listed, T20 Compliant |
| RoHS | Yes – Mercury and UV free |
| FCC | Part 15B Compliant |
Application Examples
- Commercial offices and corridors
- Educational facilities and classrooms
- Retail stores and shopping centers
- Healthcare and patient care areas
- Linear LED fixtures using Type B bypass tubes
Installation Tips
- Use only with un-switched 120–277V AC circuits
- Install in dry or damp-rated fixtures only
- Do not connect inverter leads until AC power is applied
- Drill 1/2" hole to install test switch and indicator light visibly
- Follow national and local electrical codes
Frequently Asked Questions
Q: How long does the emergency driver operate the LED lamp?
A: It provides a minimum of 90 minutes of illumination at 10W output during a power outage.
Q: Can this driver be used with dimmable fixtures?
A: No, the DRI-10-EMGR-TYPE B is not compatible with dimmers.
Q: What type of lamps are compatible with this driver?
A: It supports T8 Type B bypass linear LED tubes with opal diffusers and 3000–5000K CCT, including models like T10040 and T8-17-48G series:contentReference[oaicite:0]{index=0}.
Q: Is it suitable for outdoor use?
A: No, it is rated for indoor use in damp locations only:contentReference[oaicite:1]{index=1}.
Q: How do I test the emergency function?
A: Use the integrated test button to simulate an outage and verify reduced-output operation for at least 30 seconds monthly:contentReference[oaicite:2]{index=2}.
Q: What maintenance is required?
A: Monthly indicator inspection, 30-second operation test, and an annual 90-minute full discharge test:contentReference[oaicite:3]{index=3}.
Q: What safety precautions should be followed during installation?
A: Ensure inverter leads remain disconnected until AC power is applied; use only UL-listed, grounded fixtures:contentReference[oaicite:4]{index=4}.
Q: Is there a warranty?
A: Yes, RAB provides a 5-year limited warranty covering light output, driver performance, and finish:contentReference[oaicite:5]{index=5}.
