Product Description

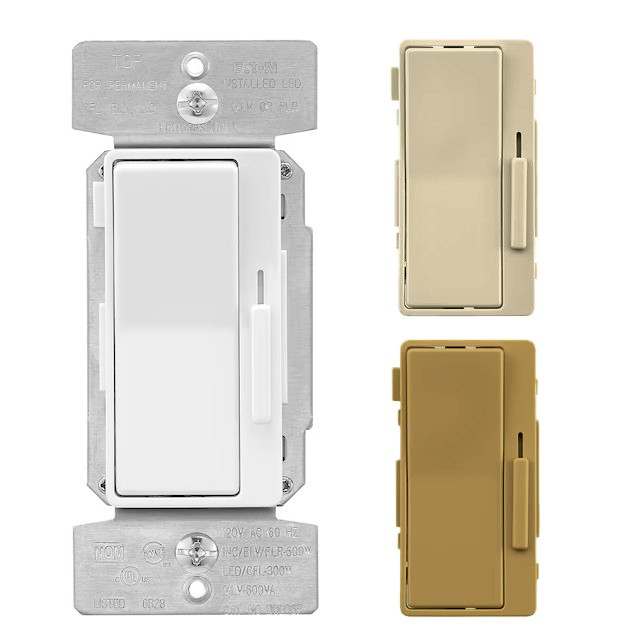

DF10P-C2 Universal Decorator 0-10V Dimmer, 120/277V, w/ preset White/Ivory/Light Almond by Eaton provides smooth, full-range linear-slide dimming control for 0-10V compatible LED and fluorescent lighting systems. Designed for residential and light commercial environments, this decorator-style dimmer combines preset functionality, flexible wiring options, and broad voltage compatibility in a clean, modern form factor.
Quick Specs
- Voltage: 120V / 277V AC, 60Hz
- Wiring: Single pole or 3-way
- Dimming Type: 0-10V DC
- Load Rating: 1200W @ 120V / 1660W @ 277V
- Dimming Control Power: 0-10V DC, 200 mA
- Neutral: Not required
- Preset: Returns to last light level
- Finish Kit: White / Ivory / Light Almond (C2)
- Compliance: cULus Listed, NOM, California Title 20
Free shipping on orders over $250
Product Benefits
- Professional 0-10V control: Provides smooth, full-range dimming for compatible LED and fluorescent ballasts.
- Preset convenience: Integrated ON/OFF switch automatically returns lights to the previous brightness level.
- Flexible installation: Supports both single pole and 3-way wiring without requiring a neutral.
- Clean decorator appearance: Works with standard decorator or screwless wallplates for a polished finish.
Key Features
- 0-10V dimming: Compatible with dimmable LED and fluorescent 0-10V ballasts
- Integrated full-slide control: Precise, linear dimming adjustment
- Preset ON/OFF switch: Maintains selected light level
- Single pole & 3-way capable: One dimmer per multi-location circuit
- No neutral required: Simplifies retrofit installations
- Adjustable high-end trim: Optimizes compatibility with connected loads
- ESD protection: Enhanced durability and reliability
- Color flexibility: Includes interchangeable White, Ivory, and Light Almond faceplates
Specifications
Technical
| Input Voltage | 120V / 277V AC, 60Hz |
| Dimming Performance | 0-10V DC, full-range continuous |
| Control Output | 0-10V DC, 200 mA |
Load Ratings
| 0-10V LED / Fluorescent | 1200W @ 120V / 1660W @ 277V |
Physical & Compliance
| Form Factor | Decorator |
| Wiring Method | Back & side wire terminals with 0-10V leads |
| Operating Temperature | -20°C to 70°C |
| Listings | cULus Listed to UL1472, NOM, California Title 20 |
Applications
- Commercial lighting: Offices, classrooms, corridors, and conference rooms.
- Architectural LED systems: 0-10V controlled luminaires and fixtures.
- Fluorescent retrofits: Compatible with 0-10V dimmable ballasts.
- Multi-location control: Spaces requiring 3-way dimming control.
Installation Tips
- Power off before wiring: Always de-energize the circuit prior to installation.
- One dimmer per circuit: Use standard switches for additional 3-way locations.
- Connect 0-10V leads properly: Violet (+) and gray (-) control wires must be wired correctly.
- Adjust high-end trim: Optimize maximum output for connected fixtures.
FAQ
What types of lighting does this dimmer control?
This dimmer is designed for dimmable LED and fluorescent fixtures that use 0-10V control ballasts or drivers.
Does this dimmer require a neutral wire?
No. A neutral connection is not required for installation.
Can this dimmer be used in a 3-way application?
Yes. It supports both single pole and 3-way wiring configurations.
What voltage systems are supported?
The dimmer supports both 120V and 277V AC circuits.
Does it remember the last light level?
Yes. The preset feature automatically returns lighting to the previous brightness level.
Are multiple faceplate colors included?
Yes. The C2 version includes White, Ivory, and Light Almond faceplates.
