Product Description

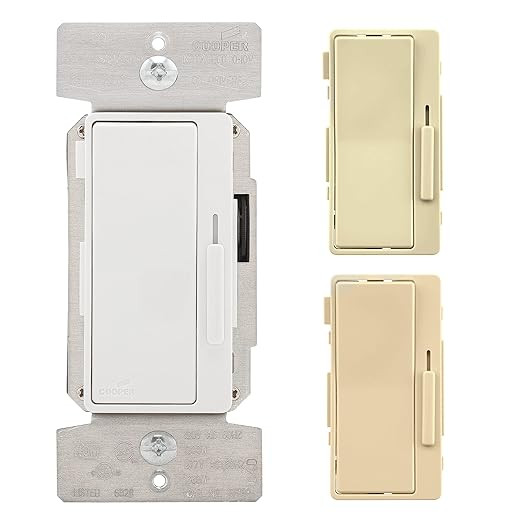

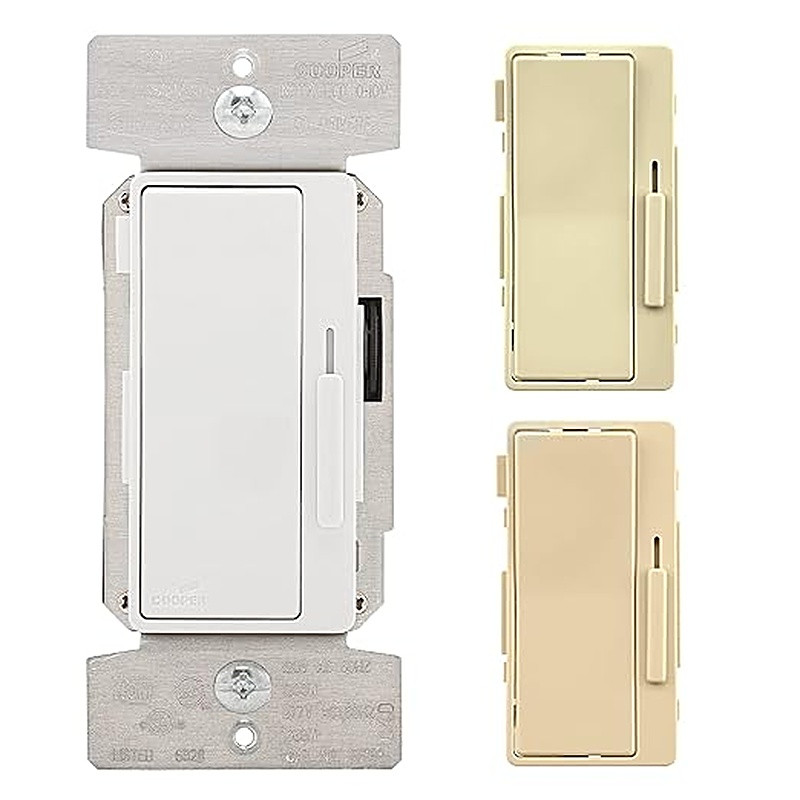

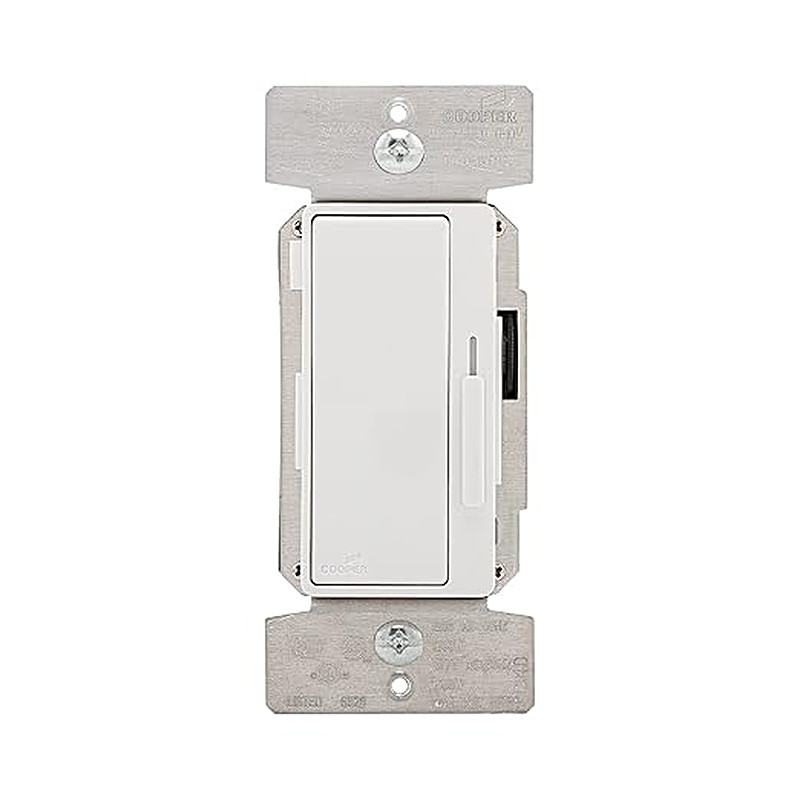

DF10P-C1 Universal Decorator Dimmer, 120/277V, w/ preset White/Ivory/Almond delivers smooth, full-range linear-slide dimming for compatible 0-10V LED and fluorescent ballast applications, with an integrated ON/OFF preset switch that returns lights to your previous level. Designed by Eaton for residential and light commercial control, it supports single-pole or 3-way wiring and installs without a required neutral.
Quick Specs
- Control Type: Decorator slide dimmer with integrated preset ON/OFF switch
- Dimming Method: 0-10V dimming (full-range, continuously variable)
- Voltage: 120V/277V AC
- Wiring: Single pole or 3-way (neutral not required)
- Load Rating (Switch Relay): 1200W at 120V, 1660W at 277V
- 0-10V Control Power: 200mA DC
- Included Colors: White / Ivory / Almond preset kit
Shipping
Free shipping on orders over $250
Preset memory automatically restores your preferred brightness after power interruptions or switching.
Product Benefits
- Reliable preset operation: Turn lights on and return to the previous level without re-adjusting your slider.
- No neutral required: Simplifies retrofit installs in many existing wall boxes.
- Broad application fit: Designed for dimmable LED and fluorescent 0-10V ballasts in residential and light commercial spaces.
- Cleaner compatibility tuning: High-level trim adjustment helps optimize performance with connected drivers/ballasts.
Key Features
- Integrated full-slide control for precise dimming adjustments
- Single pole or 3-way capable for one-location or multi-location control
- Removable faceplate for quick color changes (decorator style)
- Electrostatic discharge protection to help protect electronics
- Power-failure memory returns lighting to the same level prior to interruption
- Decorator wallplate compatibility works with standard decorator or screwless decorator wallplates
Specifications
Technical Specs
| Device Type | Decorator slide dimmer (AL series) |
| Input | 120V/277V AC, sixty hertz |
| Dimming Performance | 0-10V dimming, full-range continuously variable |
| 0-10V Control Output | 0-10V DC, 200mA |
| Load Rating (Switch Relay) | 1200W at 120V, 1660W at 277V |
| Surge Protection | Tested to withstand up to 6000V surges and up to 200A current surges |
Physical Specs
| Form Factor | Decorator |
| Finish | Gloss |
| Materials | Top Housing: Polycarbonate Bottom Housing: Polycarbonate Strap: Aluminum |
| Temperature Rating | -20°C to 70°C (-4°F to 158°F) |
Performance Specs
| Preset Feature | Returns to previous light level when turning lights ON |
| High-Level Trim | Adjustable high-level trim for optimal lamp/ballast compatibility |
| Power-Failure Memory | Restores lighting to the same level prior to interruption |
Application Examples
- Commercial offices: Smooth dimming control for 0-10V LED drivers in open offices and conference rooms.
- Retail lighting: Fine-tune brightness for displays and aisles using compatible 0-10V ballasts.
- Multi-family and hospitality: Reliable preset dimming for corridors, lobbies, and amenity spaces.
- Residential upgrades: Decorator-style retrofit for rooms using 0-10V dimmable fixtures or drivers.
Installation Tips
- Confirm load type: This dimmer is intended for 0-10V compatible dimmable LED and fluorescent ballasts/drivers.
- Choose wiring method: Wire for single pole (one location) or 3-way (multi-location) as needed.
- Neutral note: A neutral is not required for installation of the device.
- Use the trim setting: Adjust the high-level trim to improve compatibility and reduce potential issues at the top end.
- Safety first: Turn off power at the breaker before wiring, and follow local electrical codes.
FAQ
What types of lights are compatible with the DF10P-C1?
This dimmer is designed for 0-10V compatible dimmable light sources using LED drivers or fluorescent ballasts that accept a 0-10V control signal.
Does this dimmer require a neutral wire?
No. The DF10P series is designed so a neutral is not required for installation, which can simplify retrofit applications.
Can I use this dimmer in a 3-way application?
Yes. It can be wired as single pole or 3-way, allowing control from one location or from multiple locations when paired with the appropriate 3-way switch setup.
What does the preset ON/OFF feature do?
The preset switch turns the lights on and returns them to the previous brightness level without needing to move the slider each time.
What are the voltage ratings for this dimmer?
The device supports 120V and 277V applications, making it suitable for both residential and many commercial installations.
What is the maximum load rating?
The switch relay load rating is 1200W at 120V and 1660W at 277V. Always confirm driver/ballast and fixture requirements before installation.
Can I change the device color?
Yes. The faceplate is removable for color changes, and this configuration includes a preset kit with White, Ivory, and Almond options.
Is it compliant with common codes and standards?
The DF10P series is listed to UL standards (cULus) and is designed to meet requirements such as California Title Twenty for applicable installations.
