Product Description

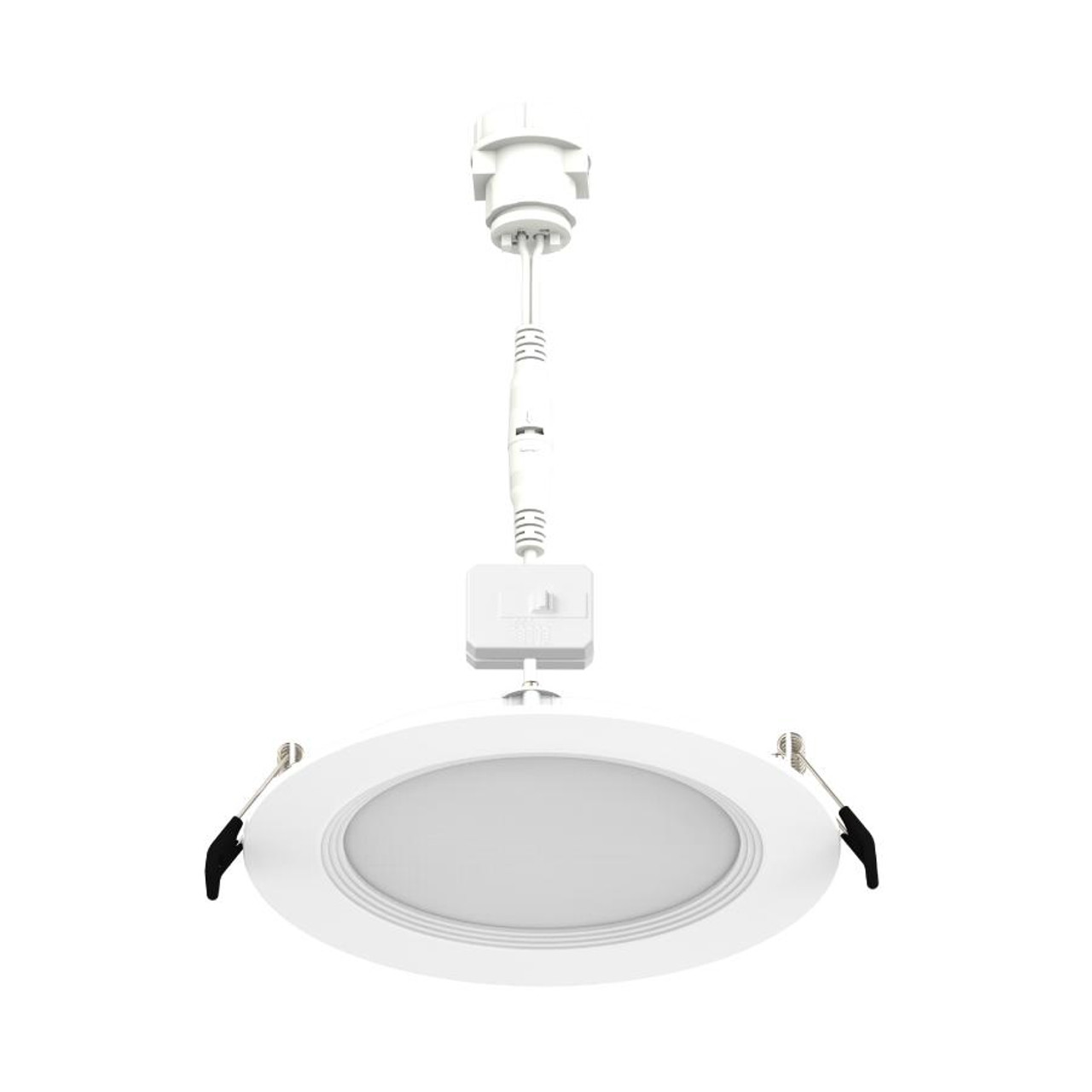

The DAISY6B by RAB Lighting is a versatile and slim edge-lit LED wafer downlight, perfect for new construction or retrofit applications. With selectable CCT and compatibility with Daisy kits, it offers seamless installation and superior performance for various spaces.
Key Features:
- Delivers 1000 lumens of bright and uniform light.
- Field-adjustable color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K.
- High 90 CRI for enhanced color accuracy.
- Slim, edge-lit design for modern aesthetics.
- Compatible with Daisy kits and extension cables for easy installation.
- Air-tight housing for energy efficiency and improved performance.
- 50,000-hour LED lifespan for long-term reliability.
- 0-10V dimming capability down to 5% for customizable lighting levels.
Specifications:
- Lumen Output: 1000 lm
- Color Temperature: 2700K/3000K/3500K/4000K/5000K
- CRI: 90+
- Wattage: 11W
- Voltage: 120-277V
- Dimming: 0-10V, down to 5%
- Lifespan: 50,000 hours
- Compliance: UL Listed, suitable for dry, damp, and wet environments
- Warranty: 5 years from RAB Lighting
Installation Tips:
- Use the included template to cut a precise hole in the ceiling for recessed installation.
- Select the desired CCT using the dip switch before securing the fixture in place.
- Ensure compatibility with Daisy kits for powering multiple wafers with a single driver.
- Follow the provided installation guide for step-by-step setup instructions.
Frequently Asked Questions:
Q: What applications is this fixture suitable for?
A: The DAISY6B is ideal for residential, commercial, and retail spaces, including kitchens, bathrooms, and offices.
Q: How many wafers can be powered with a single driver?
A: Up to 8 wafers can be powered using a compatible Daisy kit.
Q: Can this fixture be used in wet locations?
A: Yes, it is UL Listed for dry, damp, and wet locations.
Q: Is this fixture dimmable?
A: Yes, it supports 0-10V dimming down to 5%.
Q: Does it require a recessed housing?
A: No, the slim design eliminates the need for recessed housing or a J-box.
