Product Description
CTCL-150H-WH Skylark Contour Slide-to-Off Dimmer by Lutron provides smooth, dependable dimming control for dimmable LED, CFL, incandescent, and halogen lighting. Featuring advanced LED+ technology and a simple slide-to-off operation, this dimmer delivers excellent low-end performance and a clean, contoured look ideal for residential applications.
Product Summary
- Control Type: Slide-to-off dimmer with linear slider
- Load Ratings: 150W LED/CFL, 600W Incandescent/Halogen
- Voltage: 120V, 60 Hz
- Application: Single Pole
- Technology: LED+ advanced dimming
- Finish: White
- Environment: Indoor use only
- Warranty: 1-Year Limited Warranty
Free shipping on orders over $250
Product Benefits
- Optimized for LED lighting: LED+ technology reduces flicker, drop-out, and pop-on for smooth dimming.
- Simple everyday control: Adjust light level with the slider and slide fully down to turn lights off.
- Wide lamp compatibility: Supports dimmable LED, CFL, incandescent, and halogen bulbs.
- Clean, modern appearance: Skylark Contour styling blends easily with residential interiors.
Key Features
- Slide-to-off operation: Captive linear slider provides precise light control.
- Low-end trim adjustment: Built-in adjustment lever allows customization for different bulb types.
- Mechanical air-gap switch: Disconnects load power for safe servicing.
- Power-failure memory: Returns lights to previous level after power restoration.
- Factory tested: 100% tested for long-term reliability.
Specifications
Technical
| Catalog Number | CTCL-150H-WH |
| Application | Single Pole |
| Input Voltage | 120V AC, 60 Hz |
Load Ratings
| Dimmable LED / CFL | 150W |
| Incandescent / Halogen | 600W |
| Minimum Load | 10W Incandescent/Halogen, 1 LED lamp |
Physical
| Finish | White |

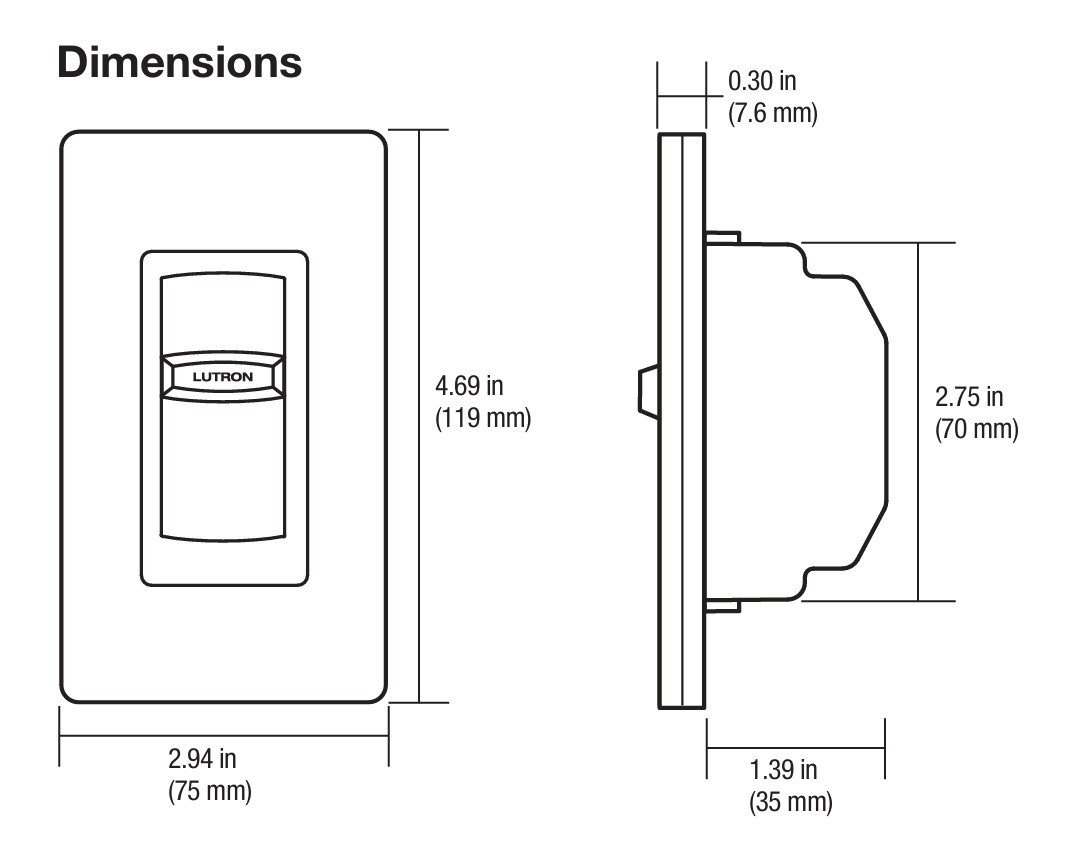

| Wallbox Requirement | Standard U.S. wallbox, 2-1/2" minimum depth |
Applications
- Residential living rooms, bedrooms, and dining spaces
- Kitchens and hallways using screw-base LED or CFL lamps
- Single-pole lighting circuits requiring smooth dimming control
- Retrofit upgrades from incandescent to LED lighting
Installation Tips
- Single-pole use only: Not designed for 3-way applications.
- Wallplate required: Compatible wallplate sold separately.
- Adjust low-end trim: Set minimum light level before final installation for optimal LED performance.
- Multigang derating: Load capacity may be reduced when installed in multi-gang wallboxes.
- Indoor use only: Install in dry locations within rated temperature limits.
FAQ
What lamps can the CTCL-150H-WH control?
This dimmer controls dimmable LED, CFL, incandescent, and halogen lamps.
What is the difference between CTCL-150 and CTCL-150H?
The H designation indicates clamshell retail packaging. Electrical performance and functionality are the same.
Is this dimmer compatible with 3-way wiring?
No. This model is designed for single-pole applications only.
What is the maximum LED load?
The maximum rated load is 150W for dimmable LED or CFL lighting.
Does it remember the last light level?
Yes. The dimmer includes power-failure memory and restores the previous light level after power returns.
Is a wallplate included?
No. A compatible wallplate is sold separately.
