Product Description
CTCL-150-GR Skylark Contour Slide-to-Off Dimmer by Lutron provides smooth, reliable dimming control for dimmable LED, CFL, incandescent, and halogen lighting. Designed with Lutron’s advanced LED+ technology, this single-pole dimmer delivers superior low-end performance, simple slider operation, and a clean, contoured aesthetic ideal for residential applications.
Product Summary
- Control Type: Slide-to-off dimmer with captive linear slider
- Load Ratings: 150W LED/CFL, 600W Incandescent/Halogen
- Voltage: 120V, 60 Hz
- Application: Single Pole
- Technology: LED+ advanced dimming
- Finish: Gray
- Environment: Indoor use only
- Warranty: 1-Year Limited Warranty
Free shipping on orders over $250
Product Benefits
- Superior LED performance: Lutron LED+ technology minimizes flicker, drop-out, and pop-on issues for smooth, consistent dimming.
- Simple intuitive control: Slider adjusts light level while sliding fully down turns lights off.
- Wide compatibility: Controls dimmable LED, CFL, incandescent, and halogen bulbs.
- Clean architectural style: Contoured Skylark design complements modern and traditional interiors.
Key Features
- Slide-to-off operation: Captive linear slider provides precise brightness control.
- Low-end trim adjustment: Built-in adjustment lever allows fine-tuning of minimum light level.
- Mechanical air-gap switch: Safely disconnects load power during relamping or servicing.
- Power-failure memory: Returns lights to previous level after power restoration.
- UL Listed: Certified to UL1472 and CSA C22.2 standards.
Specifications
Technical
| Catalog Number | CTCL-150-GR |
| Application | Single Pole |
| Input Voltage | 120V AC, 60 Hz |
Load Ratings
| Dimmable LED / CFL | 150W |
| Incandescent / Halogen | 600W |
| Minimum Load | 10W Incandescent/Halogen, 1 LED lamp |

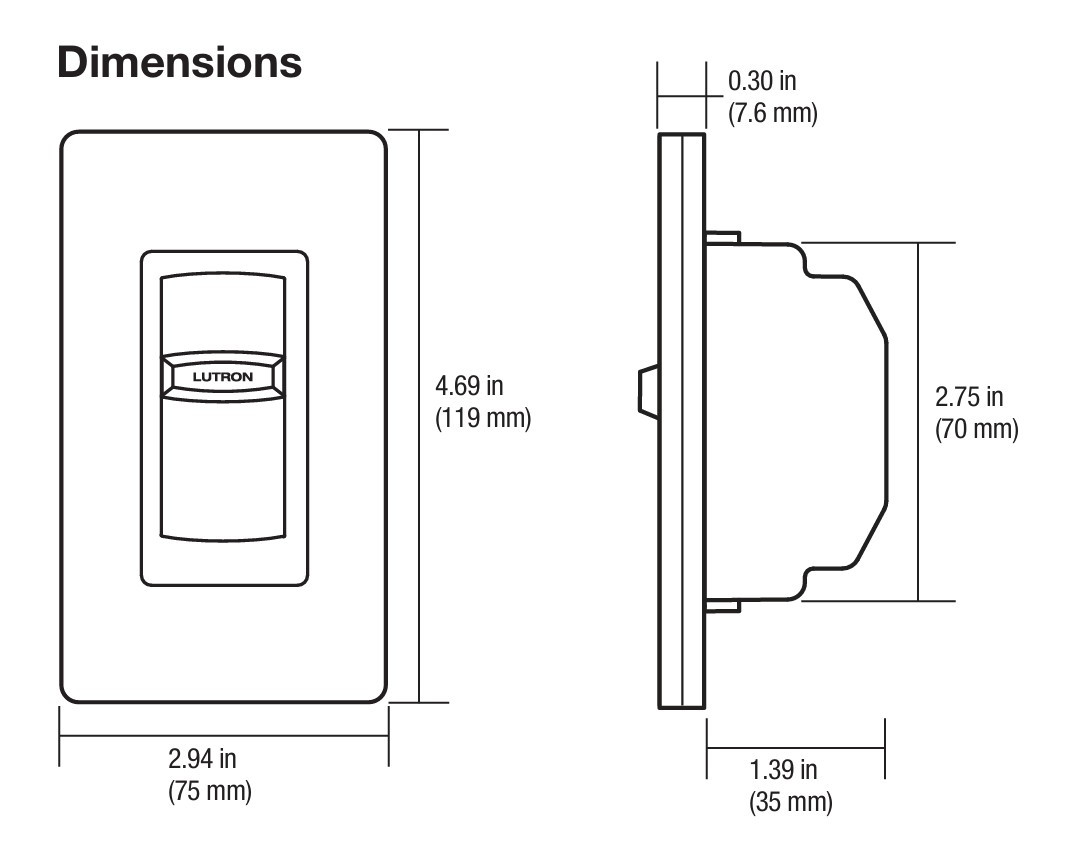

Physical
| Finish | Gray |
| Mounting | Standard wallbox, 2-1/2" minimum depth |
Applications
- Residential living rooms, bedrooms, and dining areas
- Kitchens and hallways using screw-base LED or CFL lamps
- Single-pole lighting circuits requiring smooth dimming
- Retrofit upgrades from incandescent to LED lighting
Installation Tips
- Single-pole only: Designed for single-pole applications and not for 3-way use.
- Wallplate required: Compatible wallplate sold separately.
- Set low-end trim: Adjust the low-end light level before finalizing installation for best LED performance.
- Multigang considerations: Derating may be required when installed in multi-gang wallboxes.
- Indoor use only: Install in dry, indoor locations within rated temperature limits.
FAQ
What types of bulbs can this dimmer control?
The CTCL-150-GR controls dimmable LED, CFL, incandescent, and halogen bulbs.
What does LED+ technology mean?
Lutron LED+ technology is engineered to provide smoother dimming, improved low-end control, and reduced flicker with compatible LED and CFL lamps.
Is this dimmer compatible with 3-way wiring?
No. This model is designed for single-pole applications only.
What is the maximum LED load?
The maximum rated load is 150W for dimmable LED or CFL lighting.
Does the dimmer remember the last light level?
Yes. The dimmer includes power-failure memory and returns to the previous light level after power is restored.
Is a wallplate included?
No. A compatible wallplate is sold separately.
