Product Description

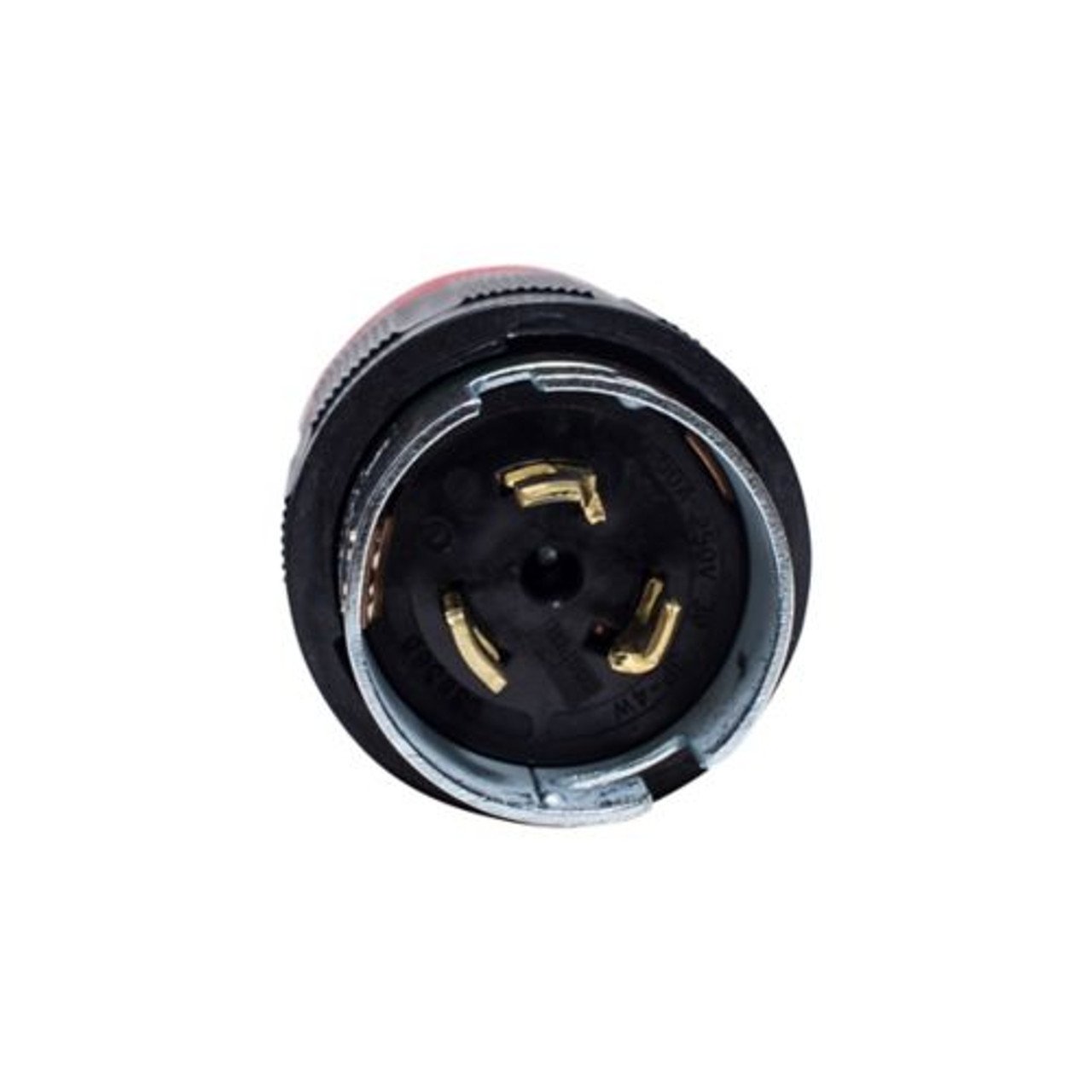

Eaton CS8365EX Locking Plug is a heavy-duty, industrial-grade connector designed to deliver secure power connections for demanding environments. With a 50A rating, three-pole, four-wire configuration, and durable pro grip design, this plug ensures long-lasting reliability for industrial applications.
Key Specifications:
- Amperage: 50A
- Voltage: 250V, 3-Phase
- Wire Size: #10–4 AWG
- Poles/Wires: 3-Pole / 4-Wire
- Material: Glass-filled nylon body, zinc plated brass contacts
- Operating Temperature: -40 to 105°C
- Compliance: RoHS Compliant, cULus Listed
Free shipping on orders over $250
Product Benefits
- Secure locking mechanism prevents accidental disconnection in industrial environments.
- Durable pro grip design ensures safe handling and easy installation.
- Extra heavy-duty construction withstands demanding applications and harsh conditions.
- Wide cord diameter range (0.44–1.06 in) for versatile compatibility.
Key Features
- Type: Locking plug, California standard
- Color: Black and Red
- Design Type: Pro grip for added safety
- Wiring Method: Back wiring
- Torque Rating: 45 lbf-inch
Technical Specifications
| Technical Specs | |
|---|---|
| Catalog Number | CS8365EX |
| UPC | 032664663949 |
| Type | Locking Plug |
| Standard | California standard |
| Device Grade | Extra heavy duty |
| Physical Specs | |
|---|---|
| Length | 6.94 in |
| Height | 3.38 in |
| Width | 3.61 in |
| Weight | 1.05 lb |
| Material | Nylon, Glass-filled nylon body |
| Colors | Black, Red |
| Cord Diameter | 0.44–1.06 in (11.1–26.0 mm) |
| Performance Specs | |
|---|---|
| Amperage Rating | 50A |
| Voltage Rating | 250V, 3Ø |
| Poles/Wires | 3-Pole, 4-Wire Grounding |
| Allowable Wire Size | #10–4 AWG |
| Operating Temperature | -40 to 105 °C (-40 to 221 °F) |
| Contact Material | Zinc plated brass |
| Torque Rating | 45 lbf-inch |
Application Examples
- Industrial power distribution systems
- Manufacturing facilities requiring high-amperage connections
- Construction sites with heavy-duty electrical equipment
- Generators and backup power systems
Installation Tips
- Ensure the circuit is de-energized before wiring.
- Match wire size (#10–4 AWG) to rating for safe installation.
- Use the pro grip design for secure handling during wiring.
- Tighten all terminal connections to 45 lbf-inch torque rating.
- Verify plug engagement to prevent accidental disconnection.
Frequently Asked Questions
Q: What is the amperage and voltage rating of the CS8365EX?
A: It is rated for 50A and 250V, three-phase power.
Q: Can this plug be used with #10 AWG wire?
A: Yes, it supports wire sizes from #10 to #4 AWG.
Q: Is this a NEMA standard configuration?
A: No, this is a California standard locking plug with a Non-NEMA configuration.
Q: What materials are used in construction?
A: The body is glass-filled nylon, and the contacts are zinc plated brass.
Q: What environments can it operate in?
A: It can withstand -40 to 105°C, making it suitable for harsh industrial conditions.
Q: Does this plug include a grounding feature?
A: Yes, it has a 4-wire grounding configuration.
Q: What safety certifications does it have?
A: It is RoHS compliant and cULus listed.
Q: Is this plug reusable?
A: Yes, it can be rewired as needed, provided safety standards are followed.
