Product Description

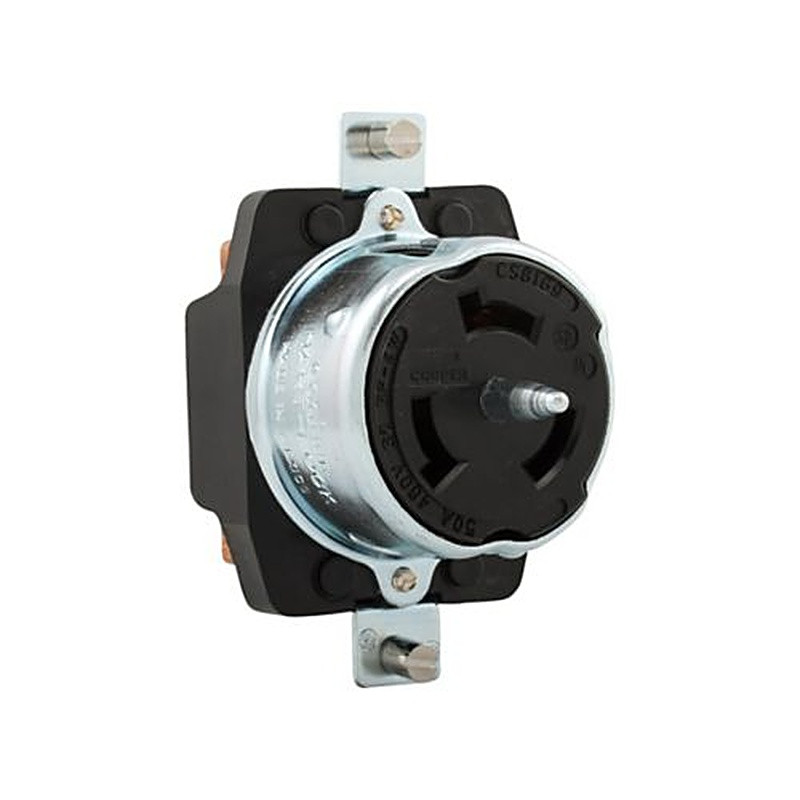

Eaton CS8169 Locking Receptacle is a rugged, industrial-grade solution designed to deliver safe and secure high-voltage connections. With a 50A rating, three-pole, four-wire grounding configuration, and California standard design, this receptacle provides exceptional durability and reliability in demanding environments.
Key Specifications:
- Amperage: 50A
- Voltage: 480V, 3-Phase
- Wire Size: #10–6 AWG
- Poles/Wires: 3-Pole / 4-Wire Grounding
- Material: Glass-filled nylon body, zinc plated brass contacts
- Operating Temperature: -40 to 105°C
- Certifications: UL Listed, CSA Certified, cULus Listed
Free shipping on orders over $250
Product Benefits
- Secure locking design ensures safe, uninterrupted connections in industrial environments.
- Extra heavy-duty construction built to withstand harsh operating conditions.
- Reliable grounding system for enhanced safety in high-voltage applications.
- Back wiring design simplifies installation and maintenance.
Key Features
- Type: Locking receptacle, California standard
- Color: Black
- Design Type: Single receptacle
- Wiring Method: Back wiring
- Torque Rating: 45 lbf-inch
Technical Specifications
| Technical Specs | |
|---|---|
| Catalog Number | CS8169 |
| UPC | 040893679686 |
| Type | Locking Receptacle |
| Standard | California standard |
| Device Grade | Extra heavy duty |
| Physical Specs | |
|---|---|
| Length | 6.25 in |
| Height | 3.25 in |
| Width | 3 in |
| Weight | 0.88 lb |
| Material | Steel housing, glass-filled nylon body |
| Color | Black |
| Performance Specs | |
|---|---|
| Amperage Rating | 50A |
| Voltage Rating | 480V, 3Ø |
| Poles/Wires | 3-Pole, 4-Wire Grounding |
| Allowable Wire Size | #10–6 AWG |
| Operating Temperature | -40 to 105 °C (-40 to 221 °F) |
| Contact Material | Zinc plated brass |
| Torque Rating | 45 lbf-inch |
Application Examples
- Industrial machinery requiring secure power connections
- High-voltage power distribution systems
- Construction sites with heavy-duty electrical equipment
- Manufacturing plants with high-demand power needs
Installation Tips
- Disconnect all power before installation to ensure safety.
- Use #10–6 AWG wires as specified for secure connections.
- Ensure proper torque (45 lbf-inch) on terminals for safe operation.
- Mount securely in compatible enclosures for industrial use.
- Verify grounding connection before powering the system.
Frequently Asked Questions
Q: What is the amperage and voltage rating of the CS8169?
A: It is rated for 50A and 480V, three-phase power.
Q: Is this receptacle a NEMA standard design?
A: No, it uses a California standard locking configuration (Non-NEMA).
Q: What materials are used in the CS8169?
A: The housing is steel, the body is glass-filled nylon, and the contacts are zinc plated brass.
Q: Can this receptacle be used in outdoor or harsh environments?
A: Yes, it operates reliably in temperatures from -40 to 105°C.
Q: What certifications does this product carry?
A: It is UL Listed, CSA Certified, and cULus Listed.
Q: How should the wires be connected?
A: The CS8169 is designed for back wiring installation.
Q: Is this suitable for high-demand industrial applications?
A: Yes, it is extra heavy duty and designed for industrial-grade use.
