Product Description

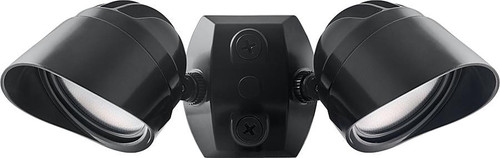

BULLET2X12NA Bullet Flood Kit is a high-performance dual-head LED floodlight offering field-adjustable wattage and color temperature. Each head outputs up to 12W, and users can toggle between 12/9/6W and 3000K, 4000K, or 5000K for versatile outdoor lighting. Designed for 120V applications, it includes the CU4 universal mounting plate and protective hoods in a durable bronze finish. Ideal for landscape, security, and building perimeter lighting, this IP65-rated fixture delivers reliable illumination in harsh environments.
Brand: RAB Lighting
Model: BULLET2X12NA
Wattage: Field-adjustable 2 × (12W / 9W / 6W)
Color Temperature: 3000K / 4000K / 5000K (adjustable)
Voltage: 120V AC, 60Hz
Mount: CU4 Plate for surface or junction box installation
Finish: Bronze with Hood
Free shipping on orders over $250
Product Benefits
- Two adjustable flood heads provide targeted, high-efficiency lighting
- Field-selectable wattage and CCT for flexible application
- IP65 rated for reliable outdoor use in wet locations
- Easy to install with pre-wired CU4 plate and included hardware
Key Features
- Field-Adjustable Wattage: Choose from 24W / 18W / 12W total system output
- Selectable CCT: 3000K (warm), 4000K (neutral), or 5000K (daylight) with 4000K default
- High Lumen Output: Up to 2,645 lumens with efficacy up to 120.9 lm/W:contentReference[oaicite:0]{index=0}
- Durable Design: Die-cast aluminum housing and UV-stabilized polycarbonate lens:contentReference[oaicite:1]{index=1}
- Wet Location Rated: UL listed and IP65 certified for exterior environments
Technical Specifications
| Specifications | |
|---|---|
| Model | BULLET2X12NA |
| Wattage Settings | 24W / 18W / 12W (12/9/6W per head) |
| Input Voltage | 120V, 60Hz |
| Lumens (4000K) | Up to 2,645 lm total:contentReference[oaicite:2]{index=2} |
| Color Temperature | Adjustable 3000K / 4000K / 5000K |
| CRI | 83–84 |
| IP Rating | IP65 (dust and water resistant) |
| Mounting Options | CU4 Plate – compatible with round/octagonal/surface boxes:contentReference[oaicite:3]{index=3} |
| Dimming | TRIAC/ELV dimmable down to 10% |
| Lifespan | 100,000 hours (L70) |
| Warranty | 5-Year limited warranty |
Application Examples
- Building exteriors and walkways
- Commercial signage and perimeter lighting
- Landscape and architectural illumination
- Parking areas and residential security
Installation Tips
- Ensure power is off before beginning installation
- Use included CU4 Plate to mount to junction box (surface, round, or octagonal)
- Apply silicone sealant around junction box and conduit entries for waterproofing:contentReference[oaicite:4]{index=4}
- Use hanging hook to hold CU4 Plate during wiring
- Adjust flood heads to desired direction and tighten locknuts
Frequently Asked Questions
Q: Can I change the color temperature after installation?
A: Yes, the fixture includes a built-in switch to toggle between 3000K, 4000K, or 5000K CCTs:contentReference[oaicite:5]{index=5}.
Q: Is this fixture dimmable?
A: Yes, it is compatible with most TRIAC and ELV dimmers and can dim down to 10%:contentReference[oaicite:6]{index=6}.
Q: What surfaces can it be mounted to?
A: The included CU4 Plate allows mounting to surface, round, rectangular, or octagonal junction boxes:contentReference[oaicite:7]{index=7}.
Q: Is this safe for wet locations?
A: Yes, it is UL listed for wet locations and features an IP65 rating for outdoor use:contentReference[oaicite:8]{index=8}.
Q: Does the kit include installation hardware?
A: Yes, it includes mounting screws, hanging hook, gaskets, and a weatherproof CU4 Plate:contentReference[oaicite:9]{index=9}.
Q: What is the default factory setting?
A: Default output is 2 × 12W at 4000K color temperature:contentReference[oaicite:10]{index=10}.
