Product Description

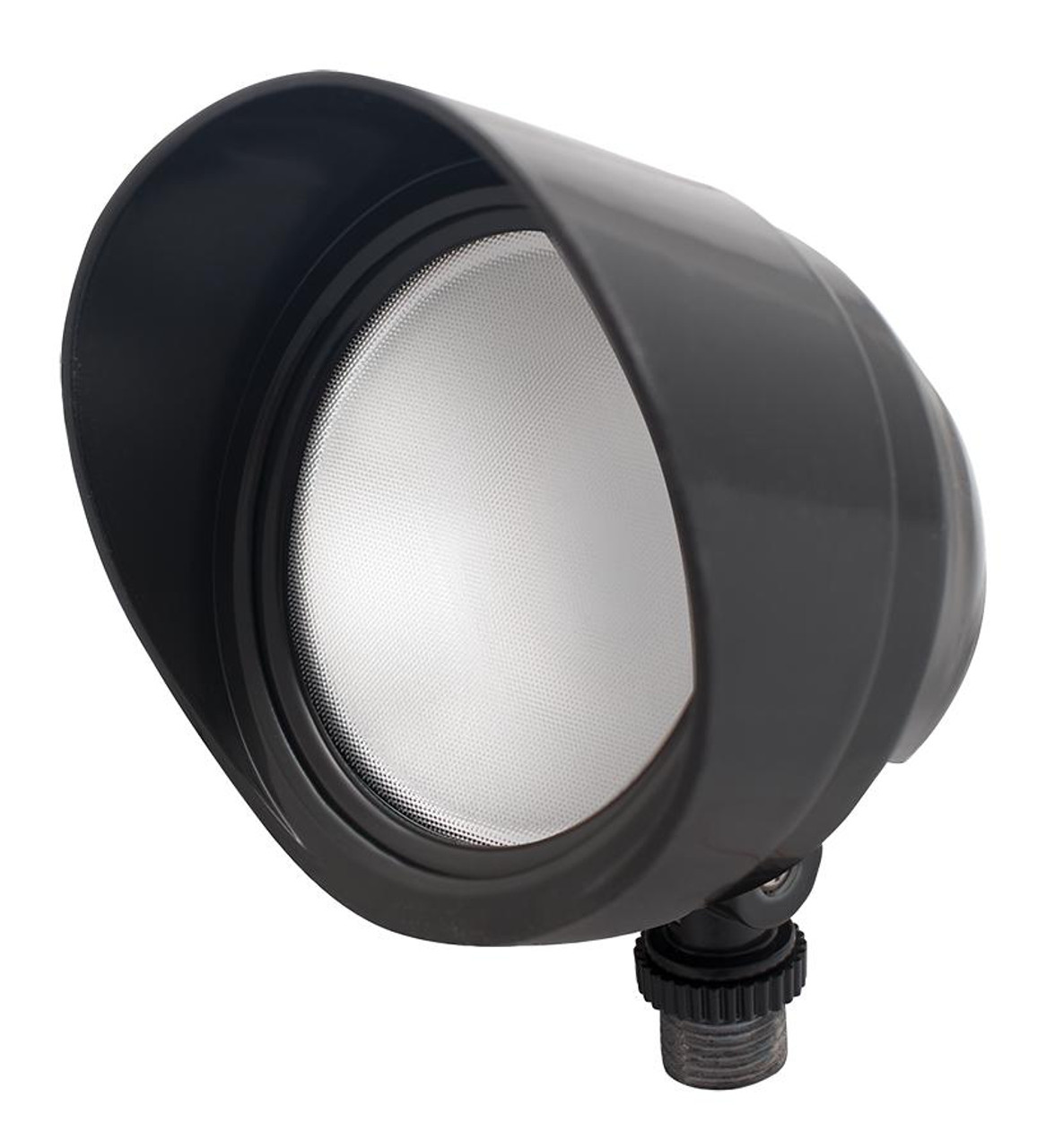

BULLET12NA Bullet Flood 12W Neutral LED 120V W/ Hood & Lens Bronze delivers efficient, focused accent lighting in a compact die-cast bullet form. With 1,071 lumens at 4000K and long 100,000-hour performance, this fixture provides smooth, even distribution through its microprismatic lens—perfect for architectural accents and landscape highlights.
Model: BULLET12NA
Type: Bullet Floodlight with Hood & Microprismatic Lens
Lumens: 1,071 lm
Wattage: 12W (Input Watts 11.2W)
Efficacy: 95.6 lm/W
Color Temperature: 4000K (Neutral)
CRI: 85
Voltage: 120V (TRIAC/ELV dimming)
Beam: NEMA 6H x 6V
Finish: Bronze
Listing: UL Listed for wet locations
Warranty: 5-Year Limited
Free shipping on orders over $250
Product Benefits
- High output, low wattage—1,071 lumens from just 12W for energy-saving accent lighting.
- Smooth, even distribution via microprismatic diffusion lens for clean wall/facade highlights.
- Rugged exterior build with die-cast aluminum housing, silicone gaskets, and polyester powder coat.
- Flexible aiming—mount as up- or downlight; heavy-duty arm with locknut keeps aim secure.
Key Features
- Long life: L70 100,000 hours (LM-80/TM-21 tested).
- Dimming: 120V TRIAC & ELV compatible for simple control.
- Beam pattern: NEMA 6H x 6V for balanced spot/flood coverage.
- Weather-ready: UL Listed for wet locations; suitable within 4' of ground.
- Field-proven finish: durable polyester powder coat for long-lasting color.
Specifications
| Technical Specs | |
|---|---|
| Wattage | 12W (Input 11.2W) |
| Voltage | 120V only |
| Dimming | TRIAC & ELV |
| Power Factor | 0.99 |
| THD | 11.9% @120V |
| Driver | Integrated constant-current |
| Performance Specs | |
|---|---|
| Lumen Output | 1,071 lm |
| Efficacy | 95.6 lm/W |
| CCT | 4000K (Neutral) |
| CRI | 85 |
| L70 Lifespan | 100,000 hours |
| Beam / NEMA | 6H x 6V |
| Physical Specs | |
|---|---|
| Housing | Die-cast aluminum with external heat-sink fins |
| Lens | Microprismatic diffusion |
| Finish | Bronze polyester powder coat |
| Dimensions | Approx. 4-3/4" L x 4-1/2" H |
| Weight | 1.7 lbs |
| Mounting | Heavy-duty arm for junction box or RAB Mighty Post |
| Compliance & Safety | |
|---|---|
| Listings | UL Listed for wet locations; LM-79 & LM-80 tested |
| RoHS | Mercury & UV free components |
| Warranty | 5-Year Limited |
Application Examples
- Facade and signage accent lighting
- Landscape features, trees, and architectural columns
- Pathway and perimeter highlighting
- Residential or commercial entryways and eaves
Installation Tips
- Mount to a weatherproof junction box or to a RAB Mighty Post; apply silicone sealant around box edges for a proper weatherproof seal.
- Use silicone or Teflon tape on the arm threads to prevent water ingress.
- Wire at 120V: connect line (black), neutral/common (white), and ground per code.
- Aim the fixture, then tighten the locknut and arm screw to secure the position.
- Suitable for up- or down-lighting; keep hood clear of leaves/debris for best performance.
Frequently Asked Questions
Q: Is the BULLET12NA rated for wet locations?
A: Yes, it is UL Listed for wet locations and suitable for mounting within 4 feet of the ground.
Q: What dimmers can I use?
A: The integrated driver supports most 120V TRIAC and ELV dimmers.
Q: Can this be mounted as an uplight or downlight?
A: Yes. It can be installed on a weatherproof junction box or on a RAB Mighty Post for up- or down-lighting.
Q: What is the beam spread?
A: The optic provides a NEMA 6H x 6V distribution for balanced coverage.
Q: How long will the LEDs last?
A: Rated L70 of 100,000 hours under LM-80/TM-21 calculations.
Q: What comes in the “Hood & Lens” configuration?
A: A protective hood with a microprismatic diffusion lens that smooths output and reduces glare.
Q: What are the dimensions?
A: Approximately 4-3/4" long and 4-1/2" high, with a compact, aimable bullet form.
Q: Is it multi-voltage?
A: This model operates on 120V only.
