Product Description

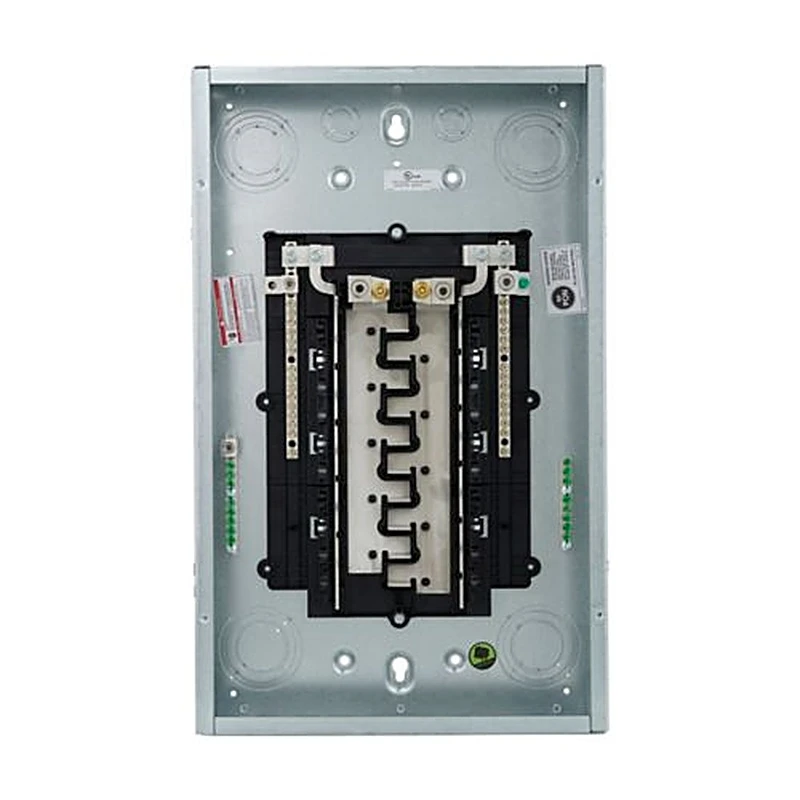

BRP20L150G from Eaton is a Type BR 1-inch PON (plug-on neutral) main lug loadcenter delivering 150A capacity with 20 spaces / 40 circuits. It includes a factory ground bar, features an aluminum bus, and ships with a cover for single-phase 120/240V applications in a durable NEMA 1 metallic enclosure.
Catalog #: BRP20L150G
Series: BR (PON)
Configuration: MLO (Main Lug Only)
Spaces / Circuits: 20 / 40
Ampacity: 150A
Voltage: 120/240V, Single-phase
Bus Material: Aluminum
Interrupt Rating: 10 kAIC
Enclosure: NEMA 1, Metallic (cover included)
Included: Factory Ground Bar
Dimensions: 23 in × 14.31 in × 3.88 in
UPC: 786689053253
Perk: Free shipping on orders over $250
Product Benefits
- Compact power distribution—20 spaces support up to 40 circuits to consolidate branch loads.
- PON (plug-on neutral) design speeds installs with cleaner wiring and fewer pigtails when used with BR PON breakers.
- Included ground bar simplifies terminations and speeds inspection.
- Durable indoor enclosure—NEMA 1 metallic cabinet and included cover for a clean finish.
Key Features
- 150A MLO configuration for subpanel or downstream distribution.
- Aluminum bus for reliable conductivity and light weight.
- 10 kAIC short-circuit rating with Type BR 1-inch breakers.
- Single-phase 120/240V; two hots, neutral, and ground.
- Cover included and NEMA 1 metallic enclosure for indoor use.
Specifications
Technical Specs
| Series | BR (PON) |
| Configuration | Main Lug Only |
| Spaces / Circuits | 20 / 40 |
| Used With | Type BR 1-inch breakers |
| Included | Ground bar; cover |
| Box Size | X3 |
Physical Specs
| Enclosure | NEMA 1, Metallic |
| Dimensions | 23 in × 14.31 in × 3.88 in |
| Weight | 21 lb |
| Finish | Factory-painted, indoor |
Electrical Specs
| Ampacity | 150A |
| Voltage | 120/240V |
| Phase | Single-phase |
| Interrupt Rating | 10 kAIC |
| Number of Wires | Two hots, neutral, and ground |
| Convertible MB Kit | CSR2125 (per specification sheet) |
Compliance & Safety
| Certifications | UL 67; UL 50 |
| UPC | 786689053253 |
| Warranty | 10 year limited |
Application Examples
- Residential subpanels for remodels, additions, and detached structures
- Light commercial tenant spaces using BR PON breakers
- HVAC, EV-ready circuits, and small equipment rooms needing up to 40 circuits
- Service upgrades where a compact, indoor MLO panel is preferred
Installation Tips
- De-energize and follow NEC/local codes; mount plumb and verify working clearances.
- Use compatible Eaton Type BR breakers; for plug-on neutral convenience, use BR PON models.
- Terminate equipment grounds on the included ground bar; isolate neutral when used as a subpanel.
- Confirm conductor sizes, tightening torques, and labeling per the device markings.
Frequently Asked Questions
Q: Is BRP20L150G main lug or main breaker?
It is a main lug only panel. If a service disconnect is required, use an upstream main or convert using the specified main breaker kit.
Q: How many circuits can it support?
It provides 20 spaces supporting up to 40 circuits with tandem breakers where permitted.
Q: What breakers are compatible?
It is used with Eaton Type BR 1-inch breakers, including plug-on neutral (PON) styles.
Q: What enclosure rating does it have?
NEMA 1 metallic enclosure for indoor use; cover is included.
Q: What short-circuit rating applies?
10 kAIC interrupt rating per the specification.
Q: What is the UPC?
786689053253.
