Product Description

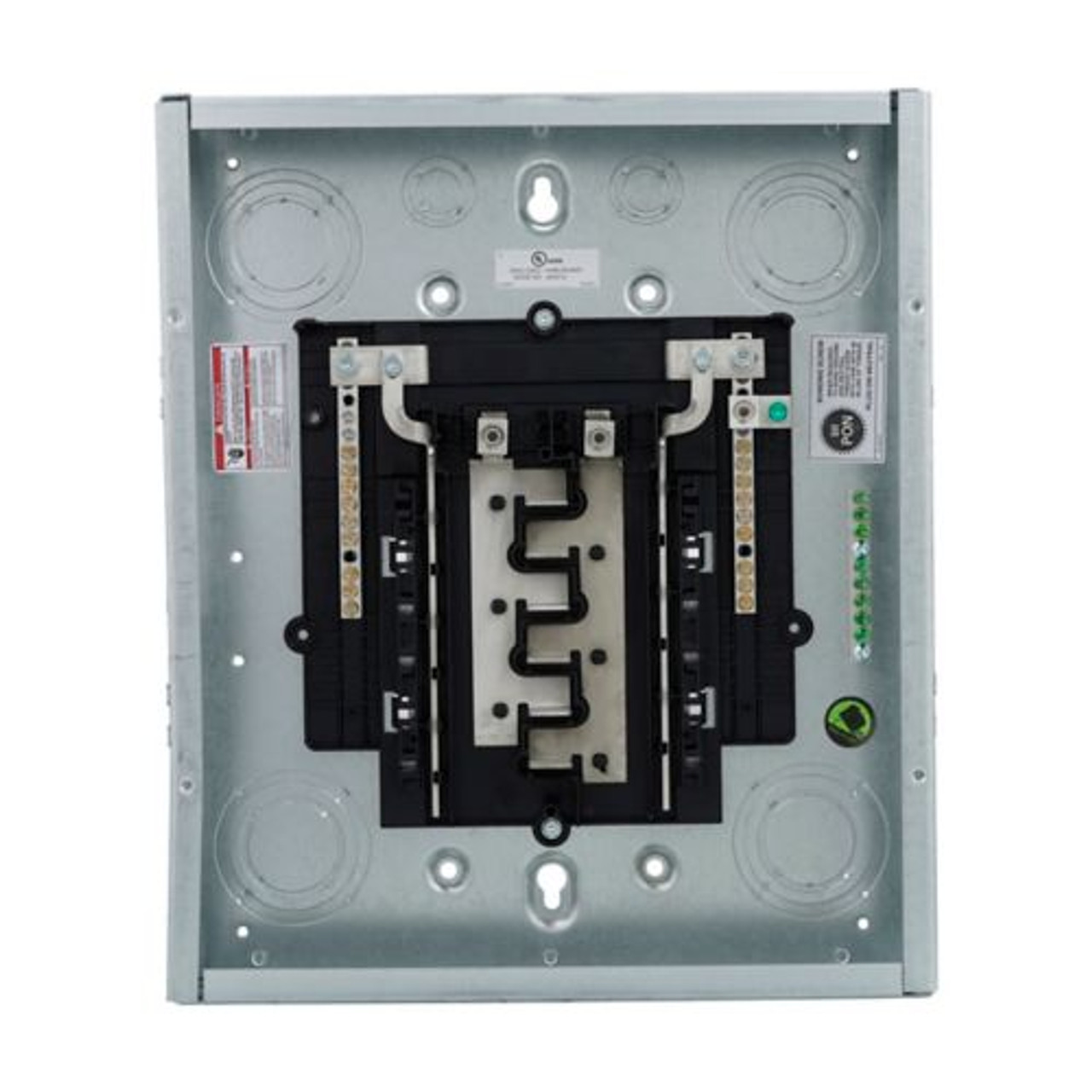

BRP12L125G from Eaton is a Type BR main lug loadcenter designed for compact residential and light commercial distribution. It delivers 125 A capacity with 12 spaces / 24 circuits, includes a factory ground bar, and features an aluminum bus in a durable NEMA 1 metallic enclosure for 120/240V single-phase systems.
Ampacity: 125 A
Spaces / Circuits: 12 / 24
Configuration: MLO (Main Lug Only)
Bus Material: Aluminum
Voltage: 120/240V, Single-phase
Interrupt Rating: 10 kAIC
Used With: Type BR 1-inch breakers
Mounting: Surface or flush

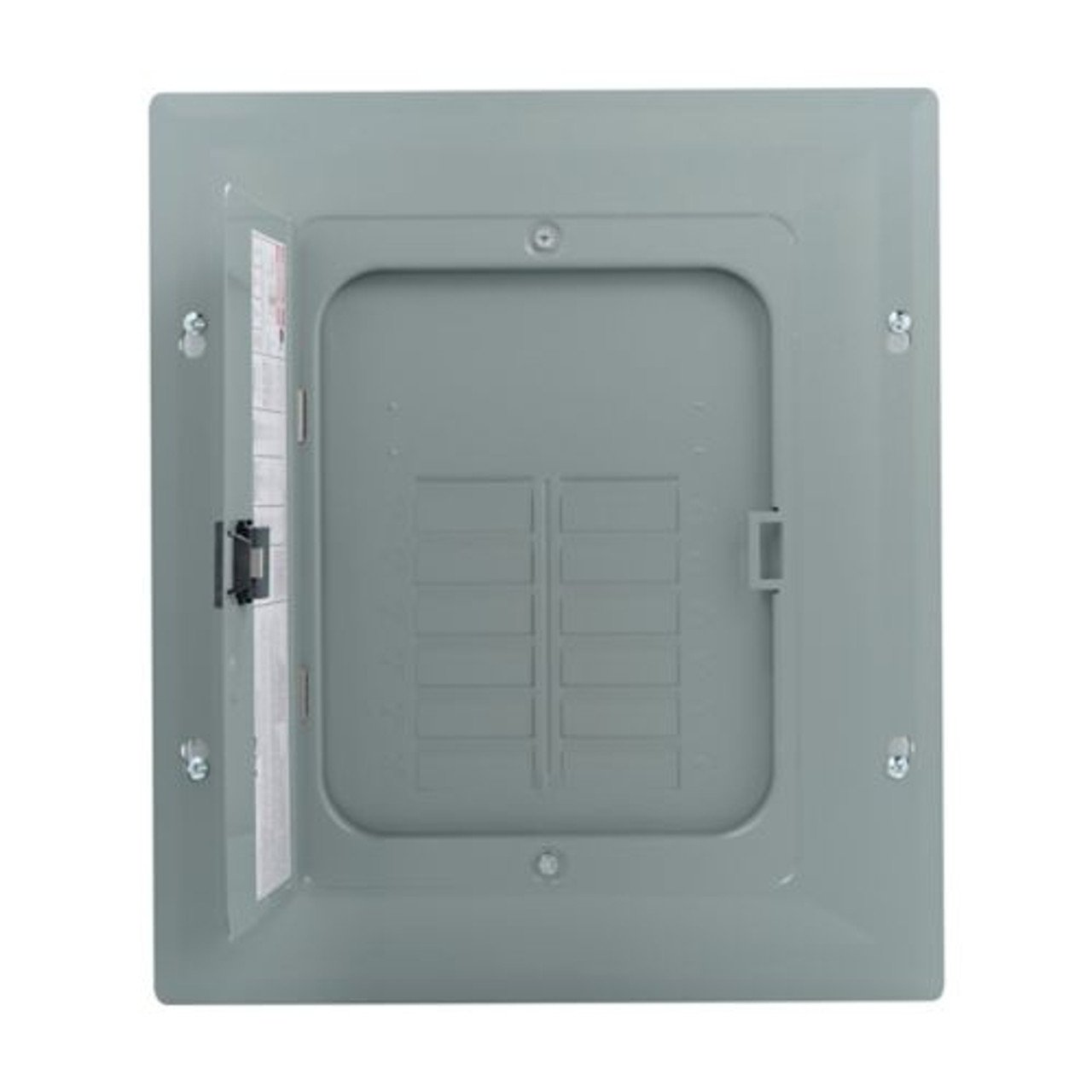

Enclosure: NEMA 1, Metallic (cover included)
Wire Range: #6–2/0 AWG Cu/Al
Dimensions (H×W×D): 16.75" × 14.31" × 3.88"
UPC: 786689053000
Perk: Free shipping on orders over $250
Product Benefits
- Compact capacity—12 spaces support up to 24 circuits for small subpanels or remodels.
- Faster installs with surface or flush options and a cover included for a clean finish.
- Reliable aluminum bus and 10 kAIC rating for dependable branch circuit protection.
- Ground bar included to simplify equipment grounding terminations.
Key Features
- MLO configuration for downstream subpanel applications.
- 120/240V single-phase distribution (two hots, neutral, and ground).
- Type BR 1-inch breaker platform for broad compatibility.
- NEMA 1 metallic indoor enclosure with cover.
- #6–2/0 AWG Cu/Al feeder accommodation.
Specifications
Technical Specs
| Series | BR |
| Configuration | Main Lug Only (MLO) |
| Spaces / Circuits | 12 / 24 |
| Used With | Type BR 1-inch breakers |
| Included | Ground bar; cover |
| Box Size | X0 |
Physical Specs
| Enclosure | NEMA 1, Metallic |
| Mounting | Surface or flush |
| Bus Material | Aluminum |
| Dimensions (H×W×D) | 16.75 in × 14.31 in × 3.88 in |
| Weight | 16.1 lb |
| UPC | 786689053000 |
Electrical Specs
| Ampacity | 125 A |
| Voltage | 120/240V |
| Phase / Wires | Single-phase / Two hots, neutral, and ground |
| Interrupt Rating | 10 kAIC |
| Wire Range | #6–2/0 AWG Cu/Al |
| Convertible Main Breaker | BR2125 (per specification sheet) |
Compliance & Warranty
| Certifications | UL 67; UL 50 |
| Warranty | 10 year limited |
Application Examples
- Residential subpanels for additions, garages, and small shops
- Light commercial tenant build-outs needing up to 24 circuits
- Equipment subpanels for HVAC, pumps, or lighting
- Service upgrades where a compact indoor MLO panel is preferred
Installation Tips
- De-energize and follow NEC/local codes; verify working clearances before mounting.
- Mount plumb for surface or flush installations; install the included cover after wiring.
- Land equipment grounds on the ground bar; isolate neutrals when used as a subpanel.
- Use conductors within the specified #6–2/0 AWG range and torque per labeling.
Frequently Asked Questions
Q: Is BRP12L125G main lug or main breaker?
It is a main lug only loadcenter. If a service disconnect is required, use an upstream main or the convertible main breaker listed on the spec sheet.
Q: How many circuits can it support?
It provides 12 spaces and up to 24 circuits.
Q: What breakers are compatible?
It uses Eaton Type BR 1-inch circuit breakers.
Q: What enclosure rating does it have?
NEMA 1 metallic enclosure for indoor use.
Q: What wire sizes are accepted?
#6–2/0 AWG copper or aluminum conductors.
Q: What is the interrupt rating?
10 kAIC short-circuit rating.
Q: Does it include a ground bar and cover?
Yes—both the ground bar and the cover are included.
Q: What are the overall dimensions and weight?
Approximately 16.75 in × 14.31 in × 3.88 in and 16.1 lb.
