Product Description

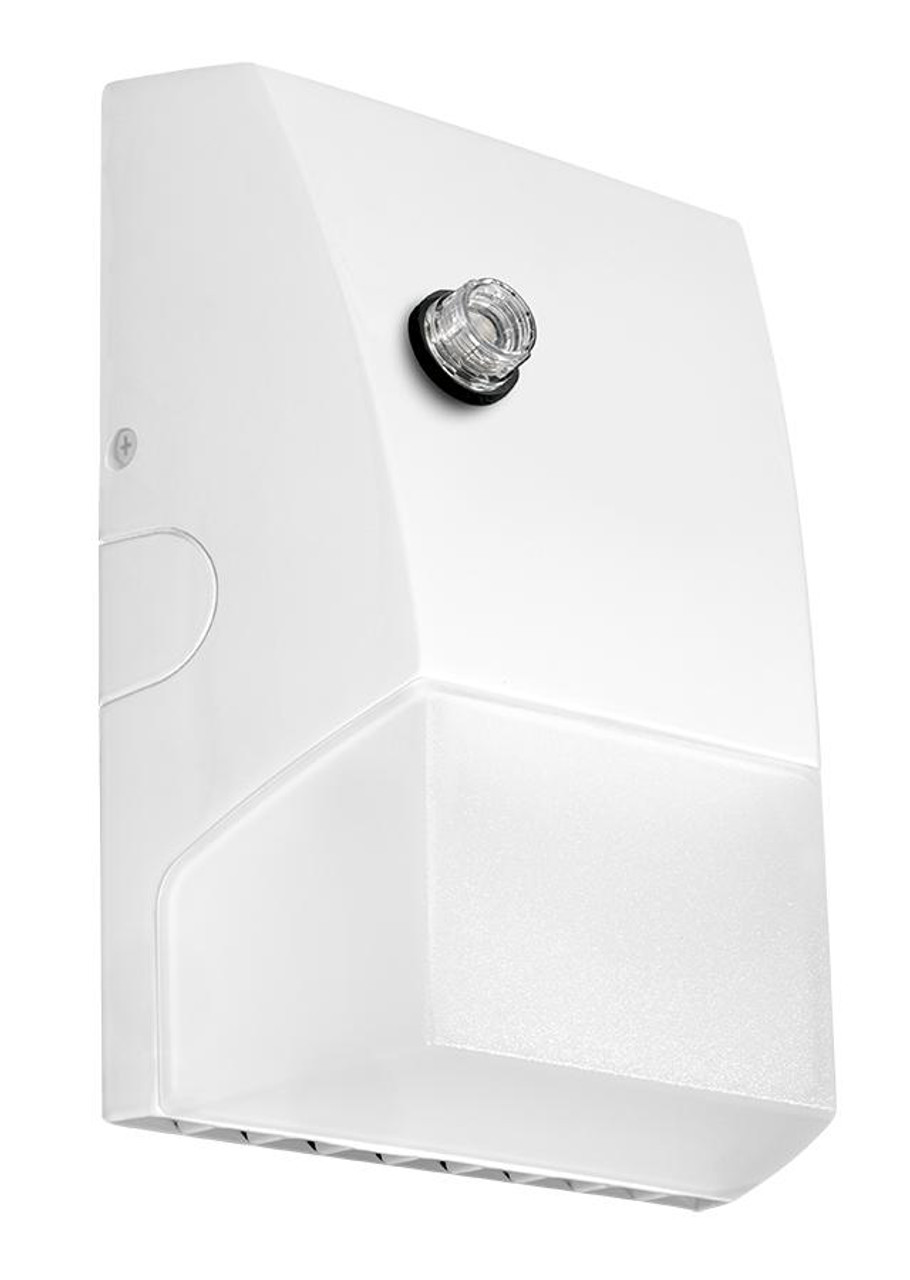

BRISKM48L-730W/PCU by RAB Lighting is a high-efficiency LED wall pack offering 4,968 lumens of warm light (3000K) in a white, low-profile housing. Built with a universal voltage photocell (120V–277V), it delivers reliable dusk-to-dawn automation and rugged weather resistance—ideal for commercial exterior lighting needs.
- Output: 4,968 Lumens
- Power: 35 Watts
- Photocell: 120V–277V Button Type
- Color Temperature: 3000K (Warm)
- Voltage: Universal 120-277V
- Finish: White
- IP Rating: IP66 (Wet Location Rated)
- Free shipping on orders over $250
Why Choose BRISKM48L-730W/PCU?
- Built-in photocell sensor for automated dusk-to-dawn control
- Energy-efficient alternative to 150W metal halide or 100W HPS
- Weatherproof design with IP66 rating for long-lasting outdoor use
- Perfect for building perimeters, walkways, and wall-mounted security lighting
Key Features
- LED Output: Delivers 4,968 lumens at 154.3 lm/W
- Power Consumption: 35W with high power factor (99.4% @120V)
- Photocell: Integrated 120-277V button photocell for automatic operation
- Construction: Die-cast aluminum housing with diffused acrylic lens
- Lifespan: 60,000-hour rated life (L70)
- BUG Rating: B1 U4 G3 for low light pollution
- Warranty: 5-Year limited warranty on light output, driver, and finish
Specifications
Technical Specs
| Power | 35W |
| Lumen Output | 4,968 lm |
| Efficacy | 154.3 lm/W |
| Color Temperature | 3000K (Warm) |
| CRI | 74 |
| Voltage | 120-277V |
| THD | 8.38% @120V, 6.43% @277V |
| Power Factor | 99.4% @120V, 96.9% @277V |
Physical Specs
| Finish | White |
| Housing | Die-cast aluminum |
| Lens | Diffused acrylic |
| Weight | 4.5 lbs |

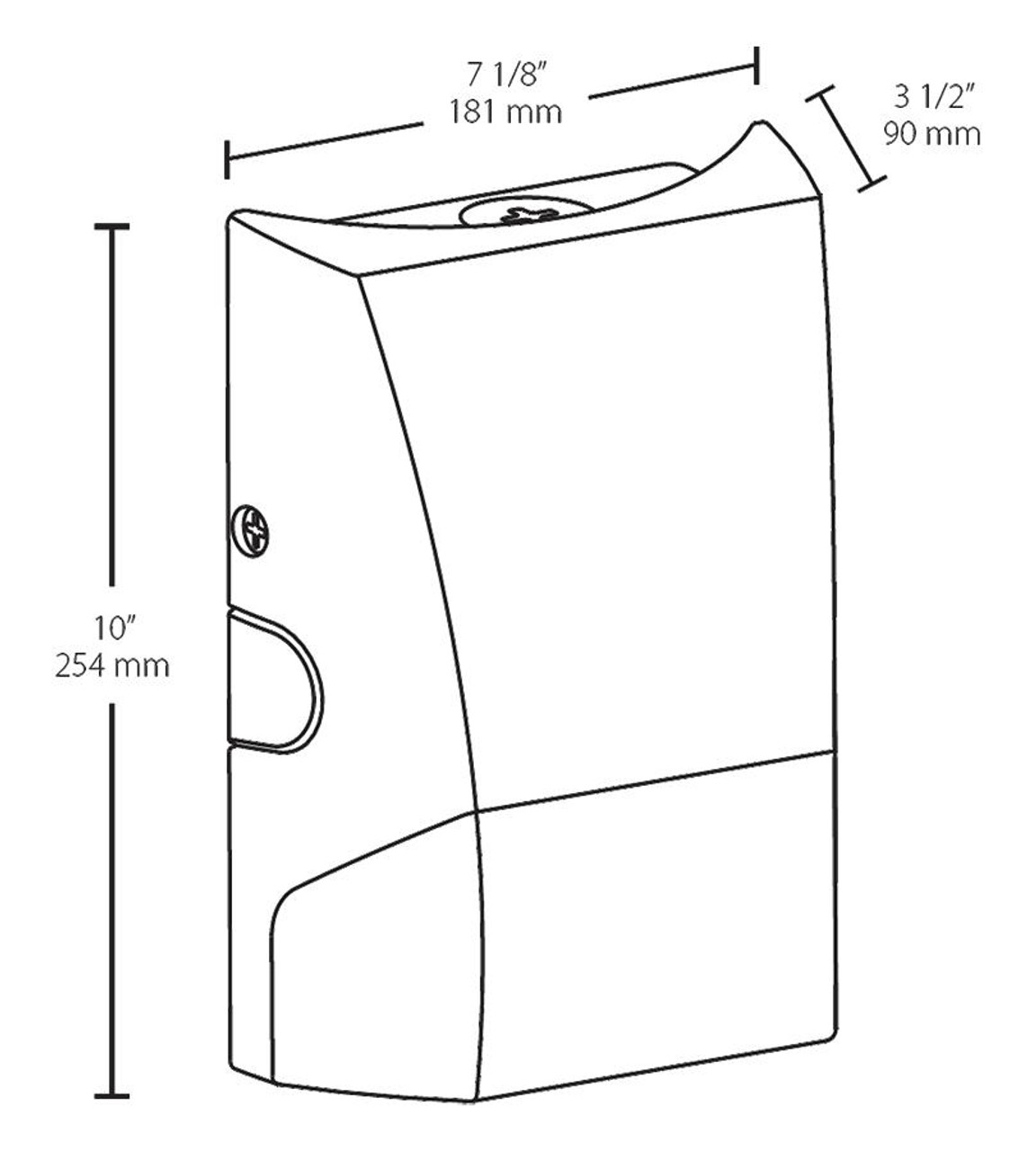

| Dimensions | 10" H x 7 1/8" W x 3 1/2" D |
Performance Specs
| Lifespan | 60,000 hours (L70) |
| IP Rating | IP66 (Dust and Water Resistant) |
| Cold Start Temperature | -30°C (-22°F) |
| Ambient Temp Range | Up to 40°C (104°F) |
| Photocell Type | Button type, 120–277V compatible |
Application Examples
- Commercial building facades
- Perimeter lighting for retail and warehouses
- Walkways, breezeways, and loading docks
- Security lighting for entrances and exits
Installation Tips
- Shut off power before beginning any installation
- Mount directly to junction box or secure to a flat wall with included knockouts
- Ensure all gaskets are fully seated for weatherproof seal
- Use silicone around all conduit entries and unused ports
Frequently Asked Questions
Q: What type of photocell is included with this model?
A: It comes with an integrated 120-277V button-style photocell for dusk-to-dawn operation.
Q: Is this fixture suitable for outdoor environments?
A: Yes, it is IP66 rated and UL listed for wet locations, ensuring reliable outdoor performance.
Q: Can it operate in cold weather?
A: Absolutely. It starts reliably at temperatures as low as -30°C (-22°F).
Q: What are the dimensions of the wall pack?
A: The unit measures 10 inches tall, 7 1/8 inches wide, and 3 1/2 inches deep.
Q: Does this replace older HID systems?
A: Yes, it is equivalent to 150W metal halide or 100W HPS systems.
Q: Is this product dimmable?
A: It supports 0–10V dimming when not using the photocell control.
