Product Description

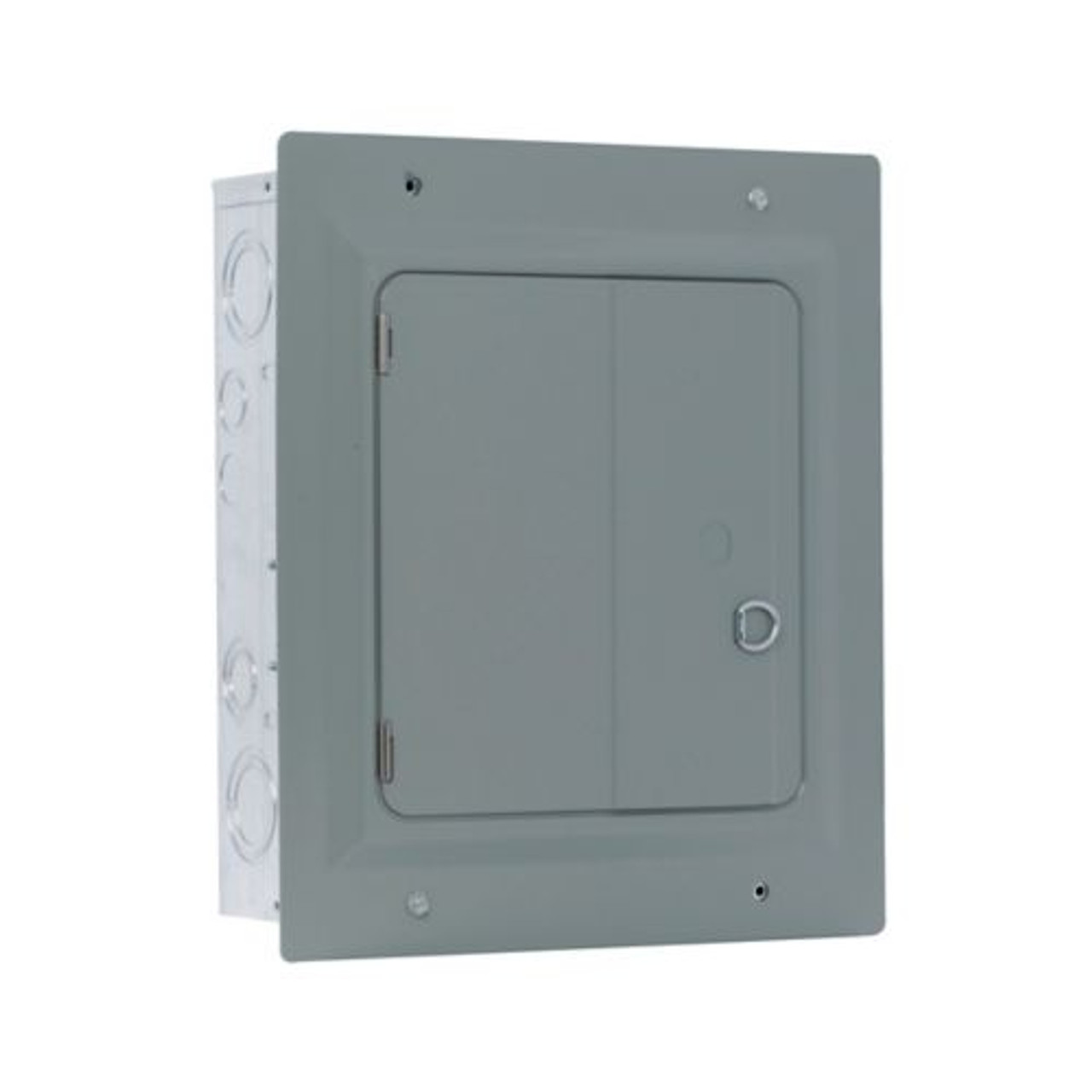

BR816L125FDGP from Eaton is a BR-series main lug loadcenter engineered for compact residential and light commercial subpanel applications. It delivers 125 A capacity with 8 spaces / 16 circuits, a durable NEMA 1 metallic enclosure, dual grounds, and an aluminum bus for 120/240V single-phase, three-wire systems using Type BR 1-inch breakers.
Ampacity: 125 A
Spaces / Circuits: 8 / 16
Bus Material: Aluminum
Special Feature: Dual grounds
Voltage: 120/240V
Phase / Wires: Single-phase, three-wire
Interrupt Rating: 10 kAIC
Breaker Type: Type BR 1-inch
Enclosure: NEMA 1, Metallic (Flush mount)
Wire Range: #14 – 1 AWG Cu/Al
Dimensions (H×W×D): 13" × 11" × 3.56"
Warranty: 10-Year
Perk: Free shipping on orders over $250
Product Benefits
- Compact capacity—8 spaces / 16 circuits deliver room for branch circuits in tight locations.
- Clean grounding with dual grounds to simplify code-compliant terminations.
- Durable indoor enclosure—NEMA 1 metallic cover withstands everyday use.
- Seamless BR ecosystem using readily available Eaton Type BR breakers and accessories.
Key Features
- Main Lug Only configuration for downstream subpanel installations.
- 125 A rating with 10 kAIC short-circuit rating.
- Aluminum bus with reliable conductivity for residential/light commercial loads.
- Flush mount design for a low-profile, finished appearance.
- Three-wire, single-phase 120/240V distribution for standard U.S. services.
Specifications
Technical Specs
| Series | BR |
| Configuration | Main Lug Only |
| Spaces / Circuits | 8 / 16 |
| Breaker Type | Type BR 1-inch |
| Special Features | Dual grounds |
Physical Specs
| Enclosure | NEMA 1, Metallic (Cover included) |
| Mounting | Flush |
| Dimensions (H×W×D) | 13 in × 11 in × 3.56 in |
| Weight | 12.8 lb |
| Box Size | 7 |
Electrical Specs
| Ampacity | 125 A |
| Voltage | 120/240V |
| Phase / Wires | Single-phase / Three-wire |
| Interrupt Rating | 10 kAIC |
| Wire Range | #14 – 1 AWG Cu/Al |
Compliance & Safety
| Certifications | UL 67, UL 50 |
| Warranty | 10-Year limited |
| UPC | 786676002172 |
Application Examples
- Residential subpanel for additions, garages, or remodels
- Light commercial tenant spaces needing a small BR panel
- Equipment subpanels for HVAC, pumps, or workshop circuits
- Panel upgrades where flush mounting and dual grounds are preferred
Installation Tips
- De-energize and lock out sources; follow NEC and local codes.
- Mount plumb and flush with wall surface; verify clearances before rough-in.
- Use conductors within the specified #14–1 AWG Cu/Al range and torque lugs per labeling.
- When used as a subpanel, isolate neutrals from grounds per code; use the provided dual ground provisions.
- Populate only with Eaton Type BR breakers for compatibility.
Frequently Asked Questions
Q: Is BR816L125FDGP main lug or main breaker?
Main lug only. Use an upstream main disconnect if required by code.
Q: How many circuits does it support?
It provides 8 spaces and up to 16 circuits.
Q: What breakers are compatible?
Eaton Type BR 1-inch breakers.
Q: What is the enclosure rating?
NEMA 1 metallic enclosure for indoor use with a flush-mount cover.
Q: What is the short-circuit rating?
10 kAIC interrupt rating.
Q: What wire sizes are accepted?
#14 to 1 AWG copper or aluminum conductors.
Q: Does it include dual grounds?
Yes, the panel features dual grounds to simplify grounding terminations.
Q: What is the warranty?
10-year limited warranty from Eaton.
