Product Description

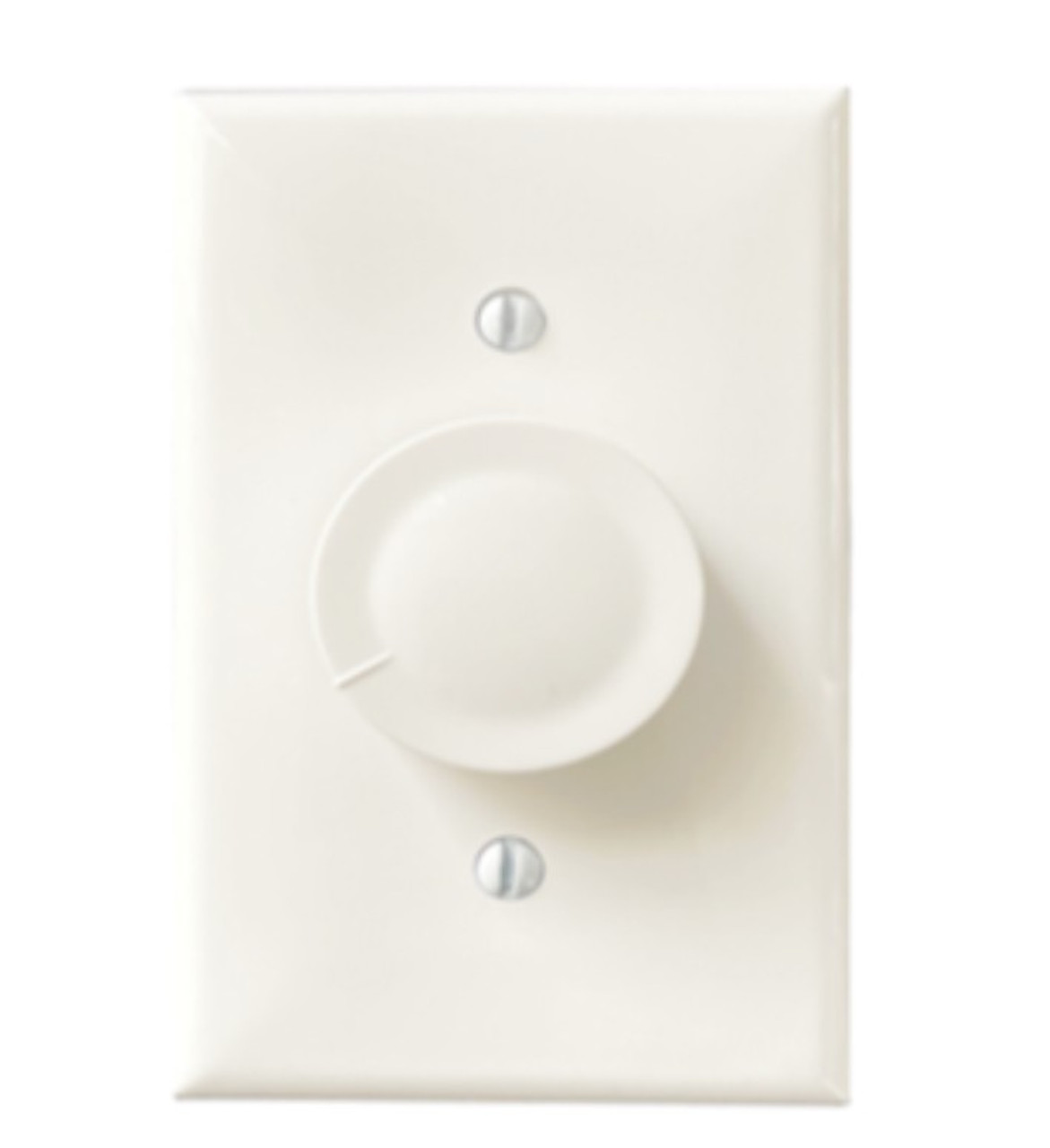

AVR-5-115 Atmosphere Inline Fan Control is a solid-state rotary-style variable speed controller designed for inline fans running on 115V AC. This wall-mounted fan controller offers fully adjustable speed settings, built-in On/Off functionality, and an RFI suppression filter to reduce electrical noise. Ideal for precise ventilation control in residential and commercial settings, it pairs seamlessly with compatible Atmosphere inline fans.
Brand: Atmosphere / Panasonic
Model: AVR-5-115
Voltage: 115V AC
Current: 5 Amps
Frequency: 50/60 Hz
Control Type: Rotary variable speed with On/Off switch
Mounting: Fits standard 2” x 4” wall box
Warranty: 1-Year Manufacturer Warranty
Free shipping on orders over $250
Product Benefits
- Customizes fan speed for energy savings and optimal airflow control
- Rotary control with integrated power switch simplifies operation
- Reduces electromagnetic interference with RFI noise suppression
- Designed for use with Atmosphere and compatible 115V inline fans
Key Features
- Fully Variable Control: Adjust fan speed to any level from low to high
- Impact-Resistant Housing: Durable thermoplastic construction
- Built-In On/Off Switch: Offers convenient fan control from the wall
- RFI Filter: Minimizes electrical noise interference
- Wall Mount Design: Installs easily in standard 2" x 4" electrical boxes
Technical Specifications
| Specifications | |
|---|---|
| Model | AVR-5-115 |
| Voltage | 115V |
| Frequency | 50/60 Hz |
| Max Amperage | 5 Amps |
| Max Operating Temp | 104°F (40°C) |
| Installation | Standard 2" x 4" electrical wall box |
Application Examples
- Pair with S-Line or VTX inline fans for adjustable airflow control
- Used in grow rooms to fine-tune air circulation
- Ideal for bathroom, attic, or kitchen exhaust fan systems
- Commercial settings where airflow must be manually regulated
Installation Tips
- Disconnect power before installation or wiring
- Wire per included diagram: Black (hot), White (neutral), Green (ground)
- Install into a grounded 2” x 4” wall box using provided screws
- Ensure connections are tight and properly insulated
- Test rotary control after power is restored to confirm operation
Frequently Asked Questions
Q: Is the AVR-5-115 compatible with all inline fans?
A: It is designed for 115V AC fans drawing up to 5 Amps. Check fan specs for compatibility.
Q: Does it provide true variable speed control?
A: Yes, the rotary dial allows for fully variable fan speed adjustment.
Q: Is there an On/Off switch built into the dial?
A: Yes, the control integrates a click-style On/Off function at the base of the rotary knob.
Q: Can I install this in a metal or plastic wall box?
A: Yes, it is designed to fit any standard 2” x 4” electrical wall box.
Q: What protection does it offer against interference?
A: The unit features a built-in RFI filter to reduce radio frequency interference.
Q: Is this speed control UL listed?
A: Yes, it carries cULus certification for safety compliance.
